1.1. Introduction
As in all other BMW models, the operating and control concept of the new BMW 5 Series F10 is based on clear and optimum structuring of the cockpit. A reduced number of switches simplifies the logical operation. The display, indicator and control elements are organized in a hierarchical arrangement corresponding to their function.

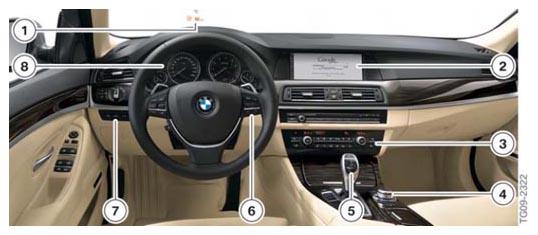

INDEX EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Head-up display HUD |
| 2 | Central Information Display, CID |
| 3 | Favorite buttons for individual assignment and operation of the heating and air conditioning system |
| 4 | Controller CON |
| 5 | Gear selector switch GWS |
| 6 | Steering wheel buttons |
| 7 | Driver assistance systems operating unit |
| 8 | Instrument cluster KOMBI |
