Park Distance Control

PDC is activated in response to the engagement of reverse gear or the operation of the PDC button next to the gear selector switch.

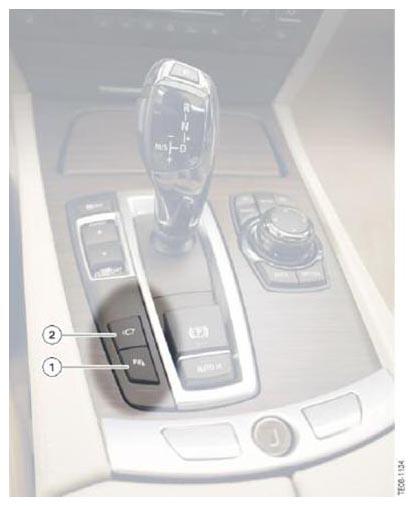

Fig 1: Identifying PDC And Rear View Camera ON/OFF And Side View Function Button

Courtesy of BMW OF NORTH AMERICA, INC.

PDC AND REAR VIEW CAMERA REFERENCE CHART

Index	Explanation
1	PDC and rear view camera on/off button
2	Side View button

The audible and visual distance warnings (the results of distance measurements) given to the driver are provided by the audio loudspeakers and by displays in the CID respectively.

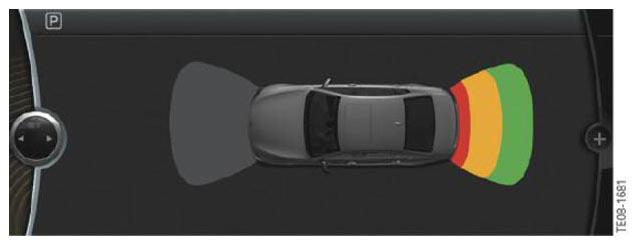

Fig 2: Display Distance Warning PDC On Screen

Courtesy of BMW OF NORTH AMERICA, INC.
