Smartphone Integration: Notes
It is now possible to connect to and play back (through the iDrive system) music tracks stored in a mobile phone. Currently, only the iPhone may be integrated in the vehicle network by means of the Smartphone Integration audio link.

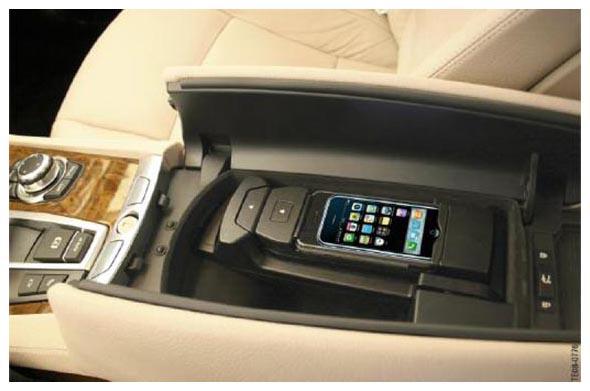

Smartphones may be connected through the USB Y cable or through the installation of a Smartphone integration snap in cradle adapter, available as option 6NF.
The audio files can be selected and played from the submenu "External devices" in the "CD/Multimedia" iDrive menu
This feature works independently from the iPod/USB interface.
The new AUX-In connection features an internal switch function to accommodate both the USB interface and the Smartphone integration options.
It is possible to select audio from the snap in cradle or, switch to an external audio device connected to the (AUX) audio jack or Y-cable to the ULF-SBX-High. The second switch position is triggered by inserting a plug in the (AUX) jack.

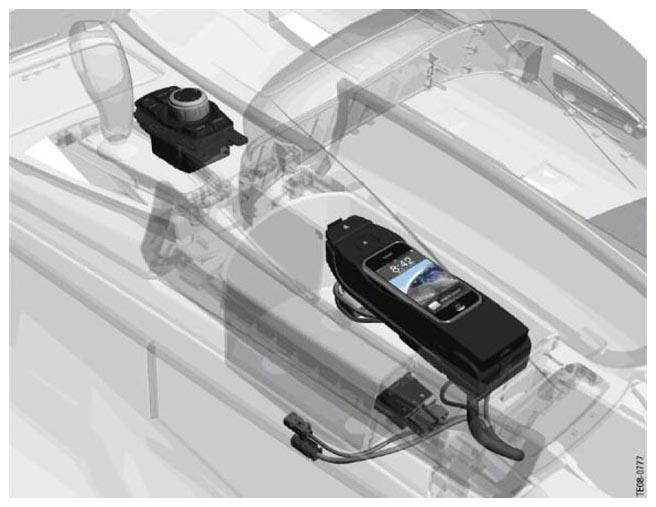

The electronic control module is installed in the base plate of the phone cradle. The link to the USB hub and AUX-In connection are already integrated in the vehicle wiring harness.

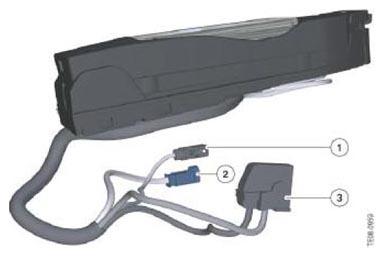

The following illustration shows the arrangement of the individual components on the base plate for the Smartphone Integration.
| Index | Explanation |
|---|---|
| 1 | Base plate connection to roof antenna (black connection) |
| 2 | USB connection from base plate to USB hub (blue connector) |
| 3 | 18-pin plug connector: (power supply, cradle-on, AUX-AF signals) |
