Displays, Indicators And Controls: Introduction: Controller
The operating and control concept of the controller on the F01/F02 has been extended to include a number of toggle switches that can be a great advantage for menu guidance.
In addition to a possibility to open the main menu in the CID, an arrangement of toggle switches for the most important menu items in the main menu is located in the immediate vicinity of the controller.

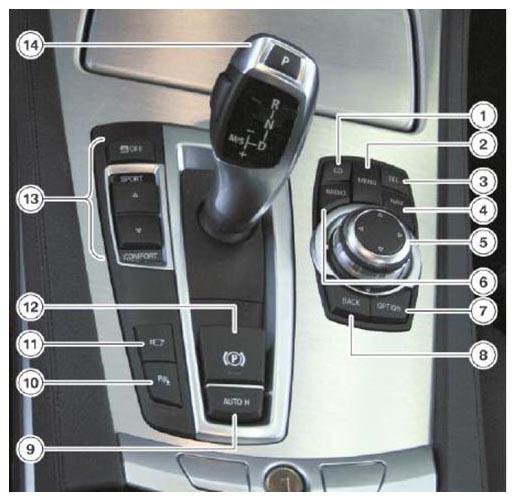

BMW7 SERIES CENTER CONSOLE REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | CD toggle switch |
| 2 | Main Menu toggle switch |
| 3 | Telephone toggle switch |
| 4 | Navigation toggle switch |
| 5 | Controller |
| 6 | Radio toggle switch |
| 7 | Option toggle switch |
| 8 | Back toggle switch |
| 9 | Parking brake, automatic |
| 10 | PDC button |
| 11 | Side View button |
| 12 | Parking brake, electrical |
| 13 | Driving dynamics switch, DSC button |
| 14 | Gear selector lever |
