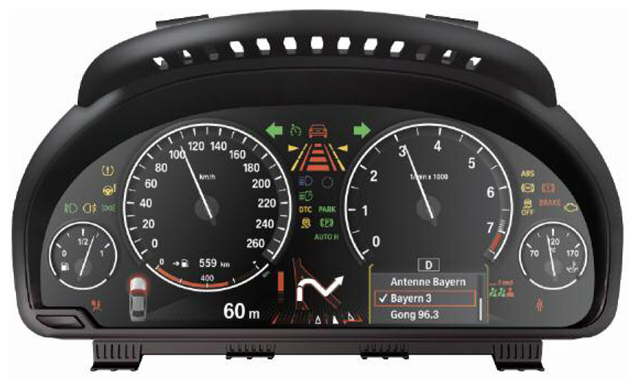

Instrument Cluster
The instrument cluster is a new development. It has four analog needle instruments based on full-surface Black Panel technology.
With this display technology, the symbols of the individual functions only become visible when the ignition is switched on.
At first glance, the instrument cluster appears as a black surface, without an arrangement of digits and different-colored function symbols.
The two large dials show the road speed and engine speed.
The two small dials indicate the fuel level on the left-hand side and the oil temperature on the right-hand side.
Most of the indicator lamps arranged are in the center, at the top between the two large dials and above the two small dials.
A permanent background image in orange gives the instrument cluster a certain 3D representation. The TFT display is located in the lower part of the instrument cluster, in the center
between the two small dials. The display for the Entertainment mode is located on the right-hand side of the display;
the Navigation display is in the center; and the display for Check Control messages is on the left.
