System Component: Notes

The head-up display is fitted above the steering column, immediately behind the instrument cluster. It is fastened to the bulkhead supporting structure by three hexagon-head bolts.

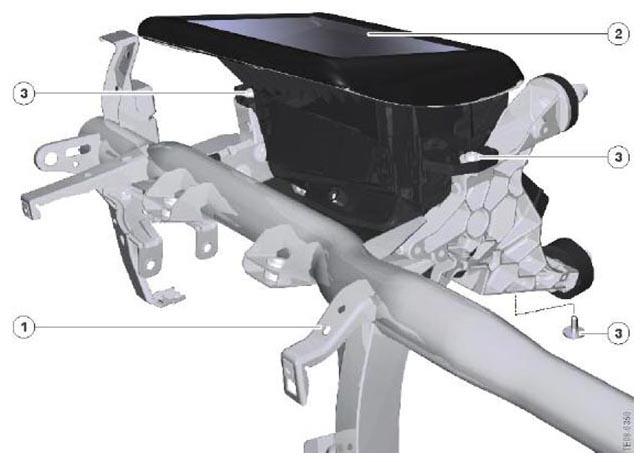

Fig 1: Identifying Carrier Bracket, Head-Up Display (HUD), Hexagonal Bolt On F01/F02

Courtesy of BMW OF NORTH AMERICA, INC.

STEERING COLUMN LEGENDS

Index	Explanation
1	Carrier bracket
2	Head-up display HUD
3	Hexagon bolt

The head-up display comprises the following components:

Cover glass
Mirrors
2 LED arrays
TFT projection display
PCB
Housing

The following components are required in addition to the components listed above:

Windshield
Light module and BEFAS
Rain/light sensor
Roof function Center and junction box
HUD trim

The following controls are required to operate the HUD:

On/Off button on the BEFAS
Light switch in the light switch cluster
Instrument-lighting dimmer
Controller
