System Component: Windshield: Notes

The windshield is a "special design" that is essential for projection of the displays. The outer and inner glass panes are bonded to a plastic film, just like in the standard windshield. Unlike in the standard windshield, this plastic film is not parallel but is tapered over the entire area of the windshield.

The taper prevents the HUD from displaying images twice. The taper tip points downwards and starts at a distance of approximately 10 cm to the bottom edge of the windshield.

The end of the taper is located at approximately 2/3 windshield height. In the top third of the windshield, the plastic film runs parallel to the outer and inner glass panes. The thickness of the taper tip is 0.8 mm. The thickness of the end of the taper is 1 mm.

The total thickness of the bottom edge of the windshield is 4.5 mm. The total thickness of the top edge of the windshield is 4.7 mm.

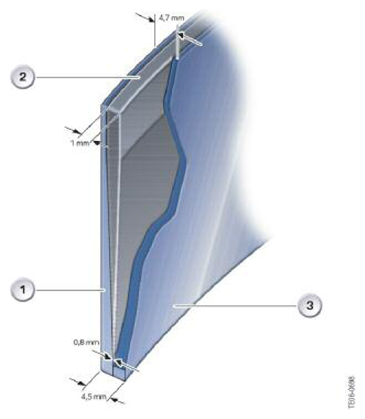

Fig 1: Identifying Plastic Film, Outer And Inner Glass Pane On Windshield

Courtesy of BMW OF NORTH AMERICA, INC.
