High-beam Assistant

In combination with the lane departure warning, the high-beam assistant function shares the same video camera and the same KAFAS control unit.

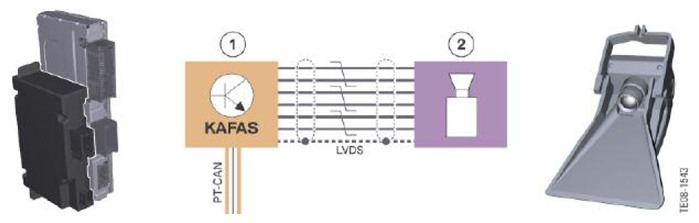

Fig 1: Identifying KAFAS Control Unit With PT-CAN And Lane Departure Warning Camera With LVDS

Courtesy of BMW OF NORTH AMERICA, INC.

KAFAS CONTROL UNIT WITH PT-CAN REFERENCE CHART

Index	Explanation
1	KAFAS control unit with PT-CAN
2	Lane departure warning video camera with LVDS connection to KAFAS control unit
