Rear View Camera

With the PDC and rear view camera equipment combination, the controller and the operating menu can be used to toggle between the basic PDC display and the rear view camera image with PDC.

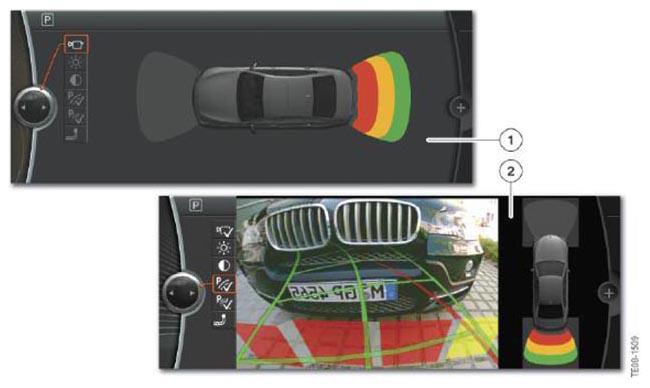

Fig 1: Display Distance Warning PDC With Rear View Camera Image On Screen

Courtesy of BMW OF NORTH AMERICA, INC.

REAR VIEW CAMERA IMAGE WITH PDC REFERENCE CHART

Index	Explanation
1	Distance warning (PDC) display with option to select rear view camera image
2	Rear view camera image and distance warning (PDC)

To assist the driver, the rear view camera image contains turning-circle lines, lane/parking-aid lines, obstacle markings and, where applicable, zoomed views of the trailer coupling.

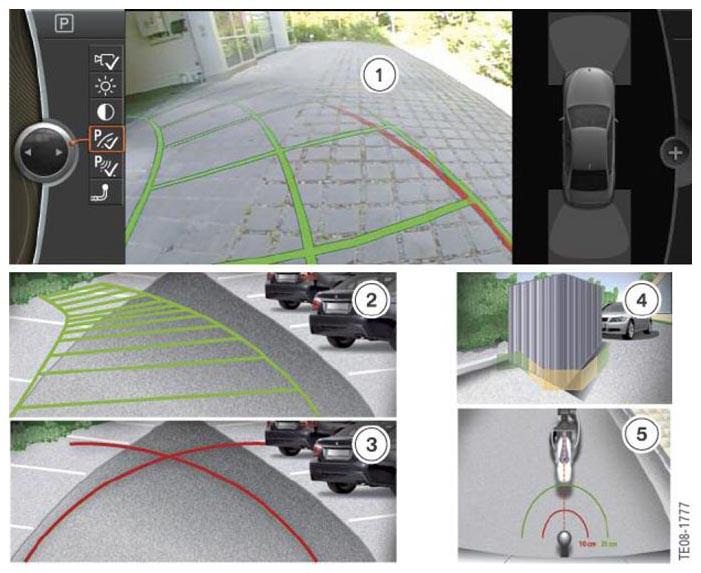

Fig 2: Overview Of Rear View Camera Assistance Functions

Courtesy of BMW OF NORTH AMERICA, INC.

REAR VIEW CAMERA ASSISTANCE FUNCTION CHART

Index	Explanation
1	Image showing example of a parking-aid line
2	Parking-aid line assistance function
3	Turning-circle line assistance function
4	Obstacle marking assistance function
5	Zoomed trailer coupling assistance function (Not for US)

The rear view camera is deactivated automatically as soon as the vehicle exceeds 12 mph or a distance of 20 m in a forward gear.

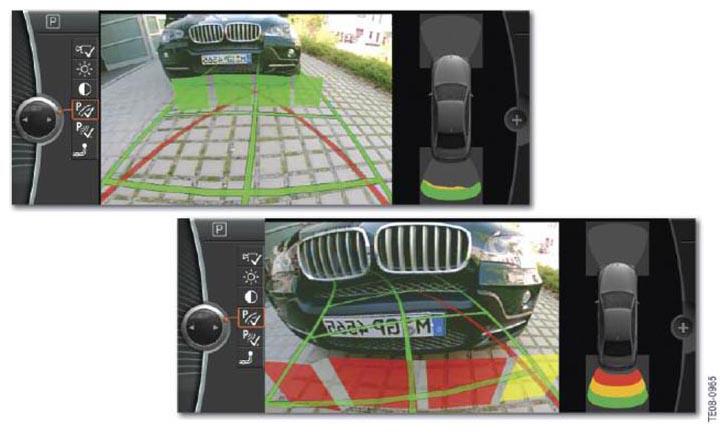

Fig 3: Display Distance Warning With PDC And Rear View Camera Image On Screen

Courtesy of BMW OF NORTH AMERICA, INC.
