N74 Engine Features
The N74 engine also shares many other common features with the N63 engine, such as a volumetric-flow-controlled oil pump and a camshaft drive with tooth-roller type chains.
By using the latest technology, it has been possible to increase power output substantially, while at the same time reducing fuel consumption - Efficient Dynamics in fact.

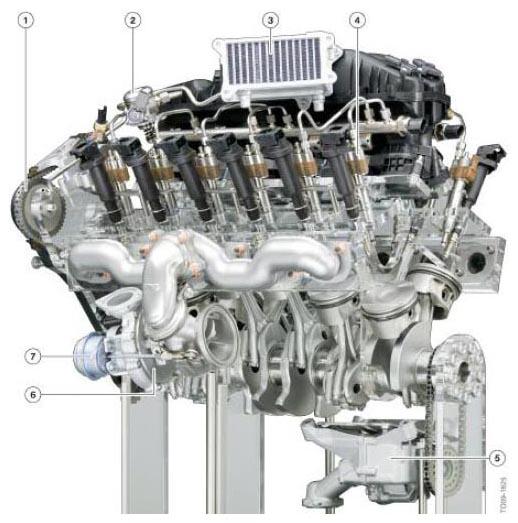

INDEX EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Camshaft drive with toot-roller type chain |
| 2 | High pressure pump for high precision injection |
| 3 | Charge air cooling for indirect charge air cooling |
| 4 | Outward-opening piezo injector |
| 5 | Volumetric-flow-controlled oil pump |
| 6 | Exhaust turbocharger |
| 7 | Charging pressure control by means of wastegate valves |
