52 26... Removing and installing/replacing CF microswitch

Necessary preliminary tasks

• Remove LEFT REAR SEAT .

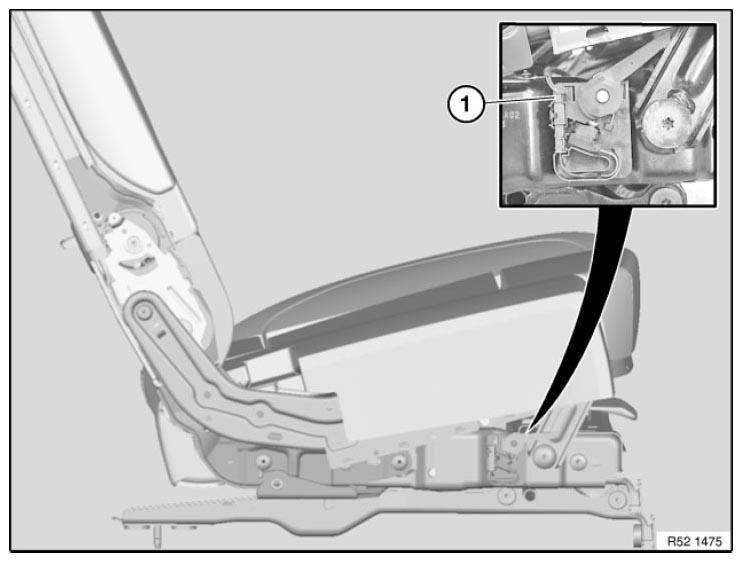

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

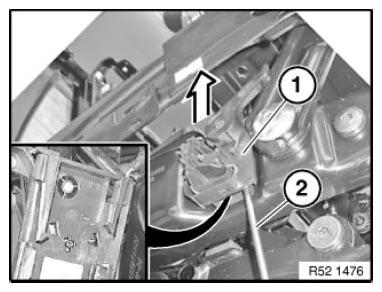

Unlock microswitch (1) with screwdriver (2) and remove towards top.

Fig 2: Unlocking Microswitch With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.
