41 00... Frame Alignment Control Body Dimensions

Dimensions in mm.

Measurement tolerances:

The control points shown serve to check the body and the straightening attachment.

The specified dimensions/measurements always refer to the center point of the bore/screw.

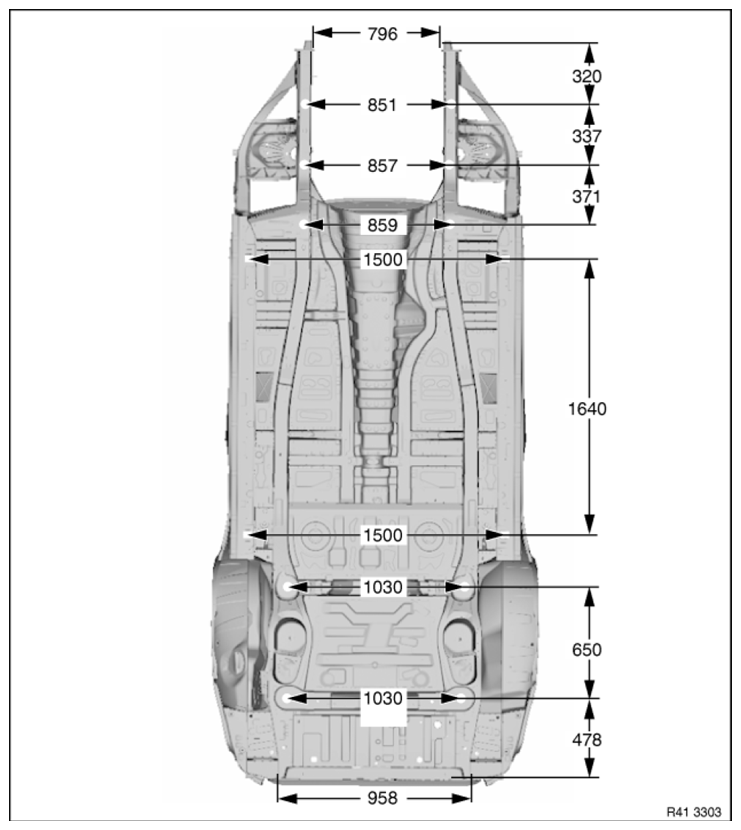

Under Body View 1

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

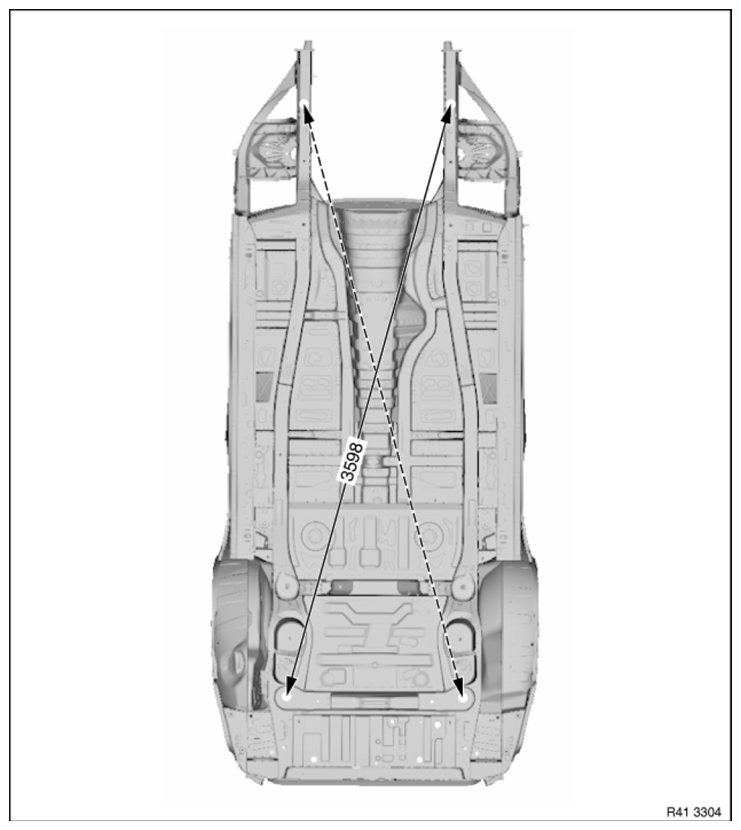

Under Body View 2

Fig 2: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

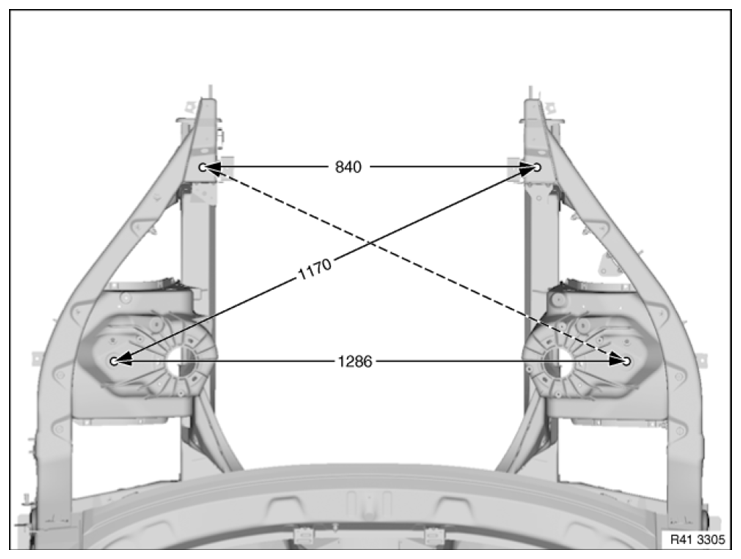

Top View, Front End

Fig 3: Engine Compartment Frame Alignment Control Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

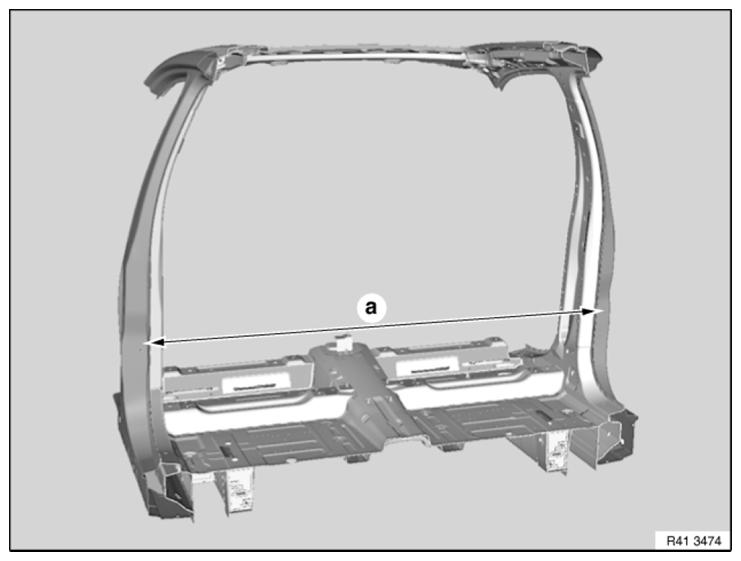

View, B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Applicable to X5 only:

Measurement a=1639 mm between screw-on points of door brakes.

Applicable to X6 only:

Measurement a=1636 mm between screw-on points of door brakes.
