41 00... Replace bolts

NOTE: On BMW and MINI bodies, various welded and pushed in bolts are being used.
Available repair options will be described below.

Single ball/double ball (version 1):

Grind off any residues of the single ball (1), if applicable.

Drill hole with diameter 7 mm.

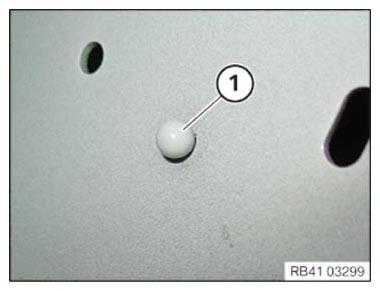

Fig 1: Single Ball (Version 1)

G10141625

Courtesy of BMW OF NORTH AMERICA, INC.

Set blind rivet nut (1).

Screw in single ball with thread until a height of 5 mm (double ball 10 mm) is reached.

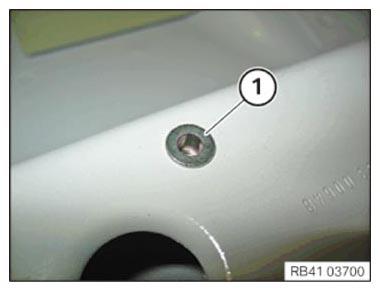

Fig 2: Rivet Nut

G10141626

Courtesy of BMW OF NORTH AMERICA, INC.

Single ball/double ball (version 2):

Grind off any residues of the single ball (1), if applicable.

Clean area with solvent cleaner R1.

Fig 3: Single Ball (Version 2)

G10141625

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bonding surface of repair element single ball (1) with solvent cleaner R1.

Bond repair element to same position using adhesive K5.

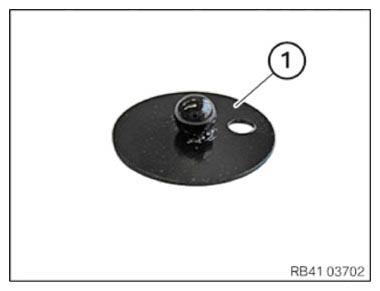

Fig 4: Single Ball Bonding Surface

G10141628

Courtesy of BMW OF NORTH AMERICA, INC.

Coarse threaded bolt (version 1):

Grind off any residues of the coarse threaded bolt (1), if applicable.

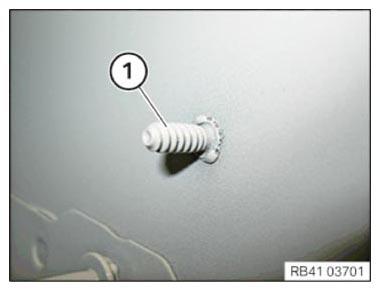

Fig 5: Threaded Bolt (Version 1)

G10141629

Courtesy of BMW OF NORTH AMERICA, INC.

Spot weld coarse threaded bolt to same position.

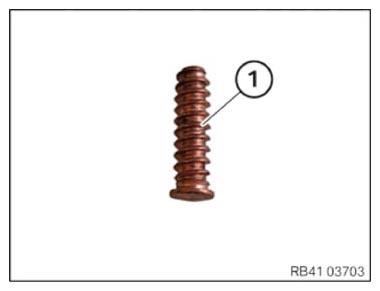

Fig 6: Threaded Bolt Spot Weld

G10141630

Courtesy of BMW OF NORTH AMERICA, INC.

Coarse threaded bolt (version 2):

Grind off any residues of the coarse threaded bolt (1), if applicable.

Drill hole with diameter 7 mm.

Set blind rivet coarse threaded bolt using riveting pliers.

Fig 7: Threaded Bolt (Version 2)

G10141629

Courtesy of BMW OF NORTH AMERICA, INC.
