Preload Timing Chain

Install chain tensioner

Replace chain tensioner.
Parts: Chain tensioner

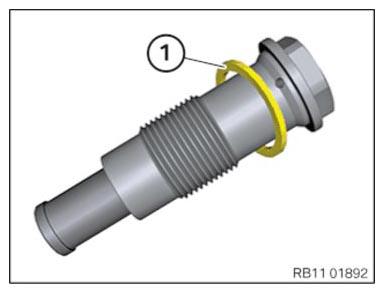

Replace sealing ring (1).
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.

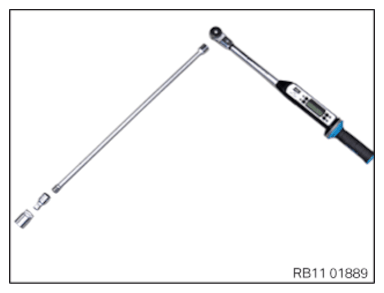

Tighten chain tensioner piston with the tool.

Courtesy of BMW OF NORTH AMERICA, INC.

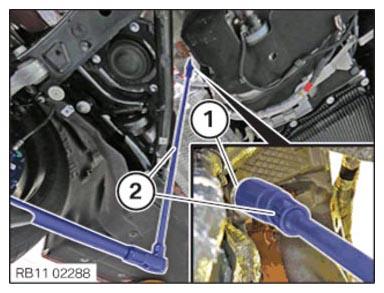

Install the chain tensioner (1) from the top.
Tighten the chain tensioner (1) from the bottom using the tool (2).

TIGHTENING TORQUE SPECIFICATION

Chain tensioner to cylinder head
1. Joining torque		20 Nm
2. Angle of rotation		30°

Courtesy of BMW OF NORTH AMERICA, INC.
