Removing the lambda oxygen sensor
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

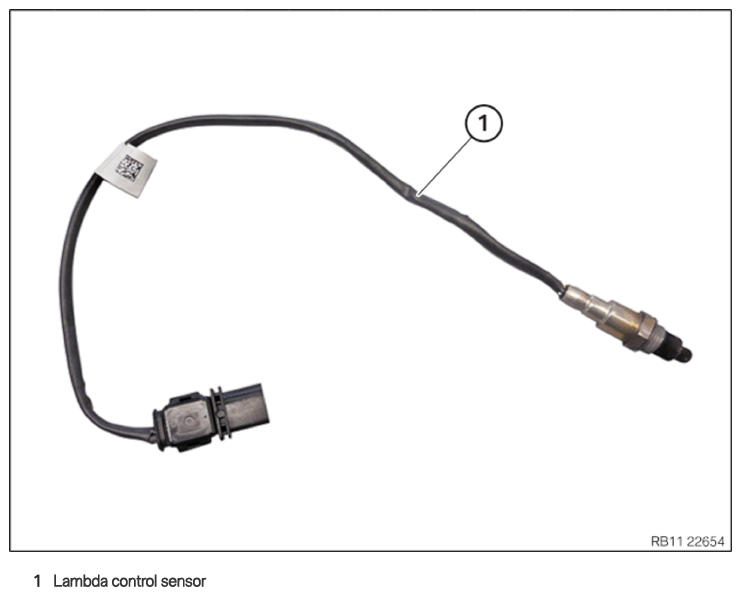

Lambda control sensor
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
- Do not pull on wires when disconnecting connectors and plug connections.
NOTE:
The cable of the Lambda oxygen sensor is black. The installation location of the Lambda oxygen sensor is in front of the catalytic converter.

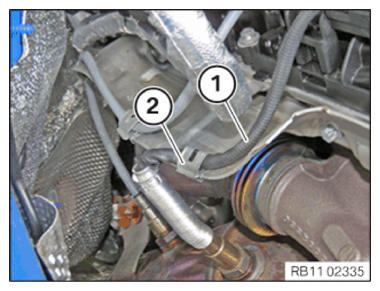

- Detach the cable (1) from the clamp (2).

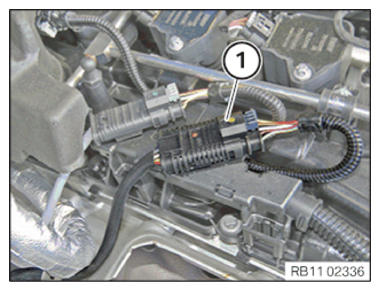

- Unlock and disconnect connector (1).

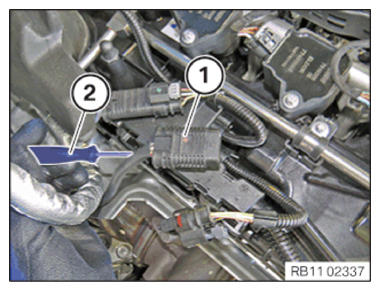

- Unlock the connector (1) with the screwdriver (2) and detach it off from the carrier plate.

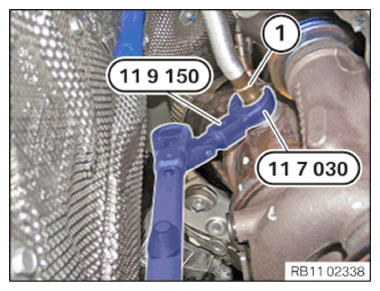

- Release the Lambda oxygen sensor (1) with the special tools 0 493 751 (11 9 150) and 0 491 075 (11 7 030) .
- Remove the Lambda oxygen sensor (1).
