41 00... Frame Reference Body Dimension

Dimensions in mm.

Dimension tolerances:

The checkpoints shown serve to check the body and the set of attachments.

The specified dimensions always refer to the centerpoint of the bore hole/screw.

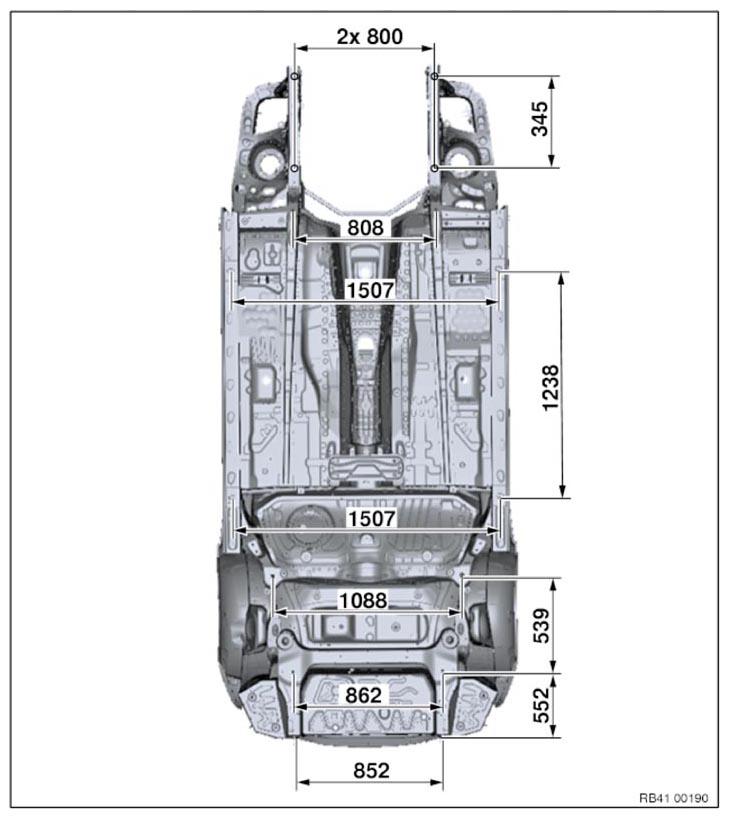

Underbody View 1

Fig 1: Underbody Frame Reference Dimensions And Measurement Points (Underbody View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

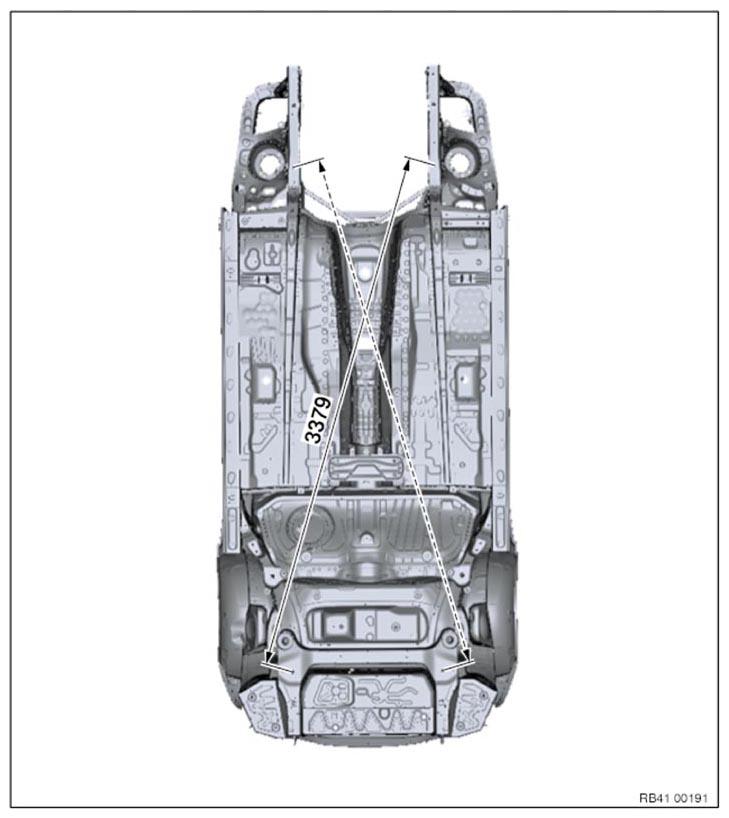

Underbody view 2

Fig 2: Underbody Frame Reference Dimensions And Measurement Points (Underbody View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

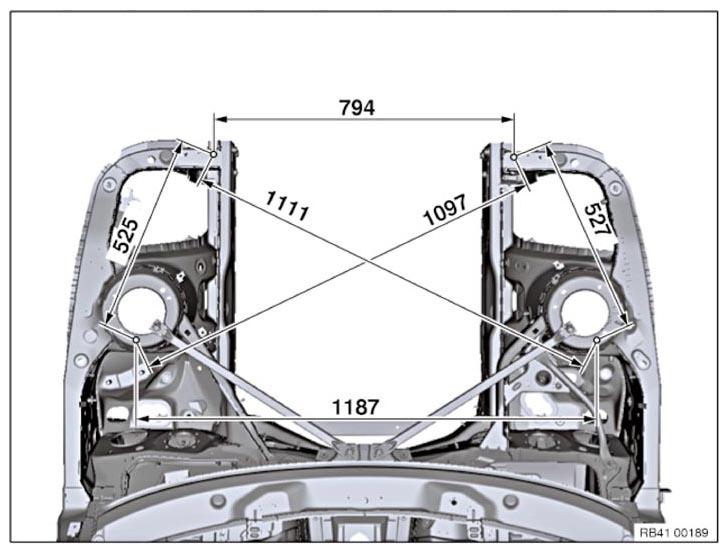

Top View, Front End

Fig 3: Engine Compartment Underbody Frame Reference Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

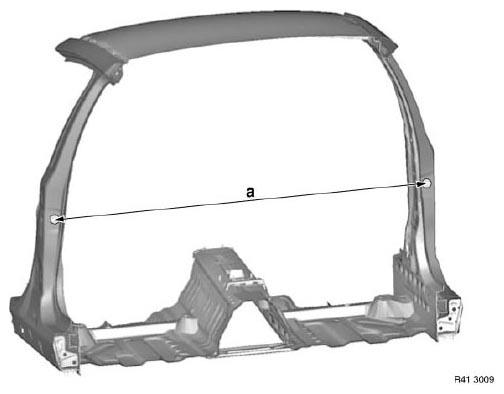

View, B-pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1548 mm between screw-on points of door brakes.
