Install vertical strut

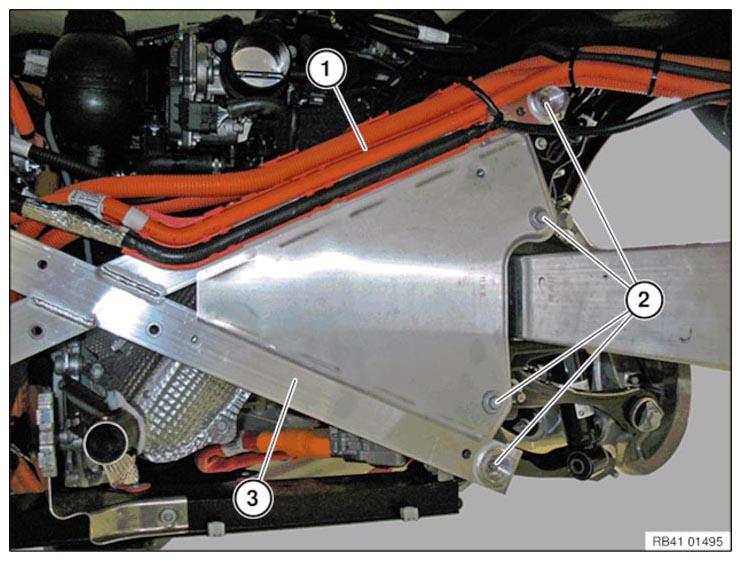

- Position the vertical strut (3).
- Replace screws (2).
Parts: Screws

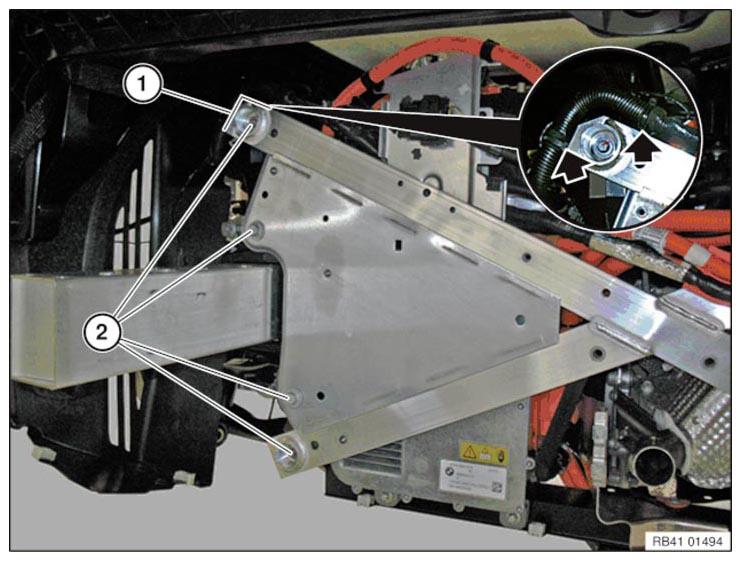

- Hand-tighten the bolts (2) on both sides.
- Clip in 4 high-voltage cables (1).
- Tighten the bolts (2) on both sides.
TIGHTENING TORQUES SPECIFICATIONS
| Vertical strut to Drive module | ||
|---|---|---|
| M10 Replace screw |
Joining torque | 56 Nm |
| Angle of rotation | 90° | |
TIGHTENING TORQUES SPECIFICATIONS
| Vertical strut to Drive module | ||
|---|---|---|
| M8 | Tightening torque | 28 Nm |

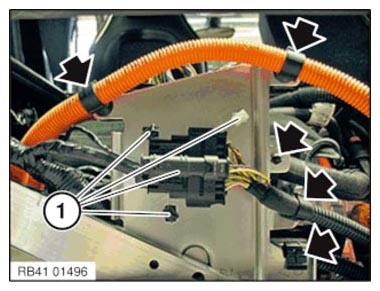

- Clip in the cable in the area (1).
- Position the connector housing (1) and secure it by turning it by 45°.
- Clip in the cables at the marked points (arrows).

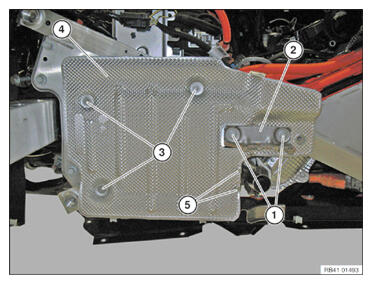

- Slide the heat shield (4) onto the clamps (5).
- Tighten the screws (3).
TIGHTENING TORQUES SPECIFICATIONS
| Heat shield to exhaust system | ||
|---|---|---|
| Screw M6 | Tightening torque | 8 Nm |
- Position the exhaust bracket (2).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATIONS
| Exhaust bracket | ||
|---|---|---|
| M8 | Tightening torque | 13 Nm |
