Chart D2 Hydraulic Unit Functional Check

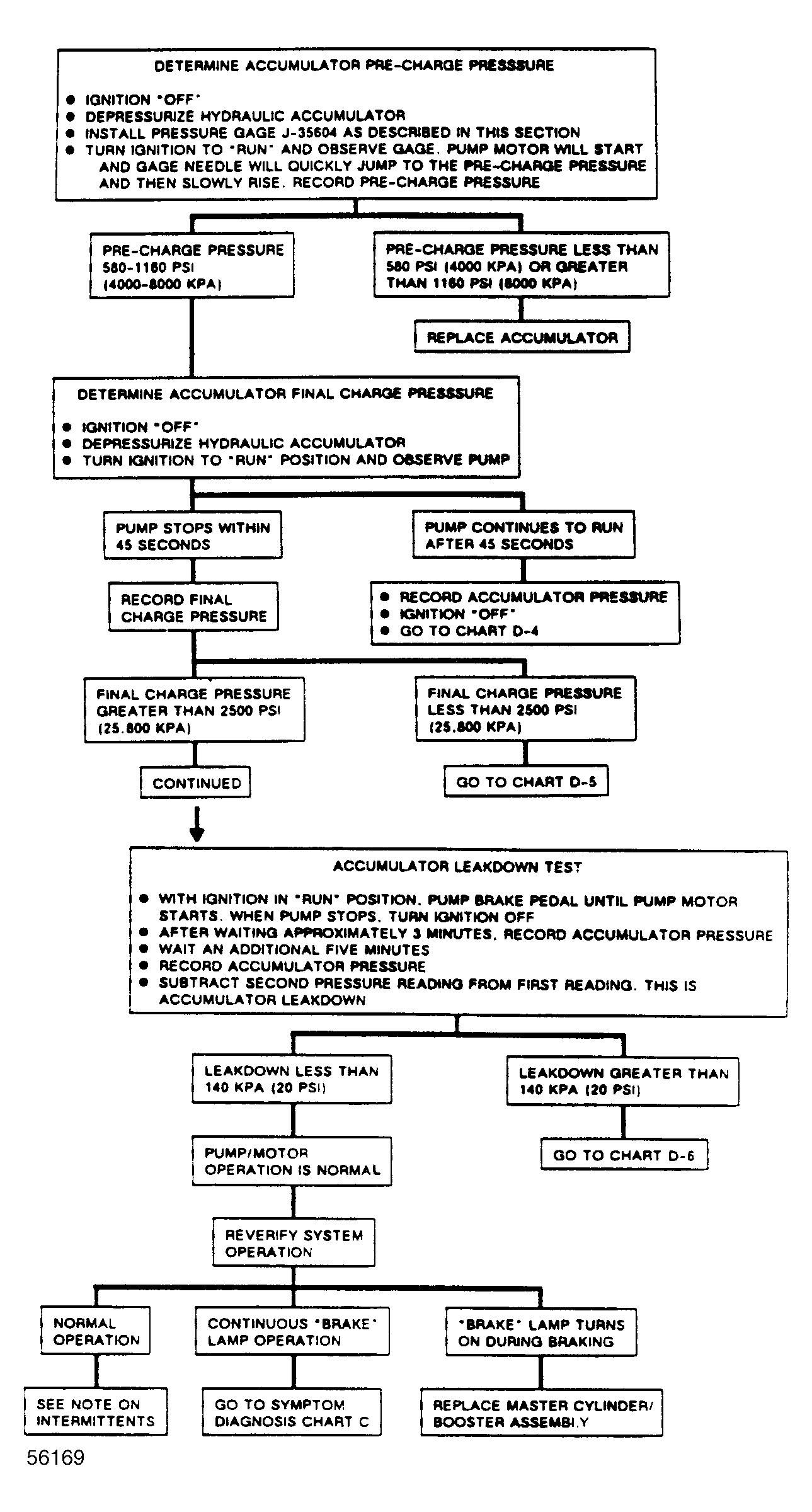

Fig 1: Flow Chart D2 (1 of 2), Hydraulic Unit Functional Check

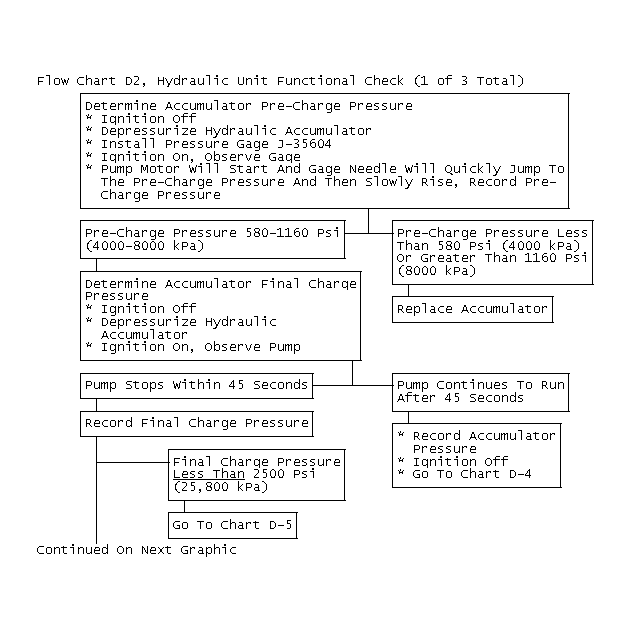

Fig 2: Flow Chart D2, Hydraulic Unit Functional Check (1 of 3 Total)

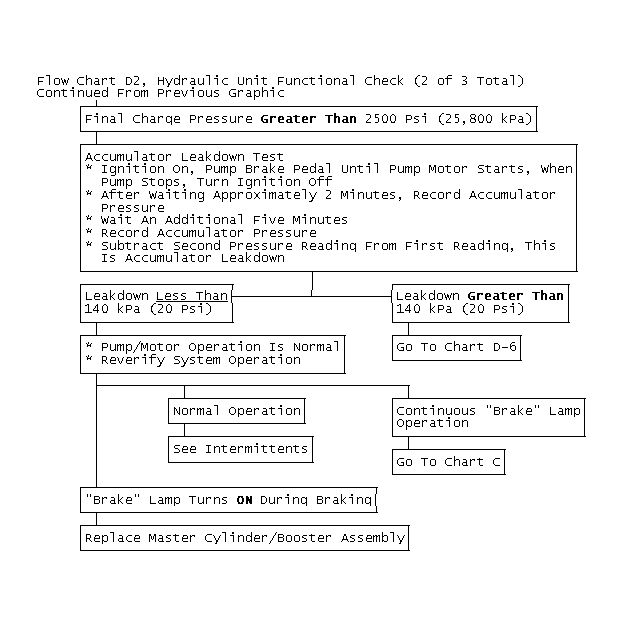

Fig 3: Flow Chart D2, Hydraulic Unit Functional Check (2 of 3 Total)

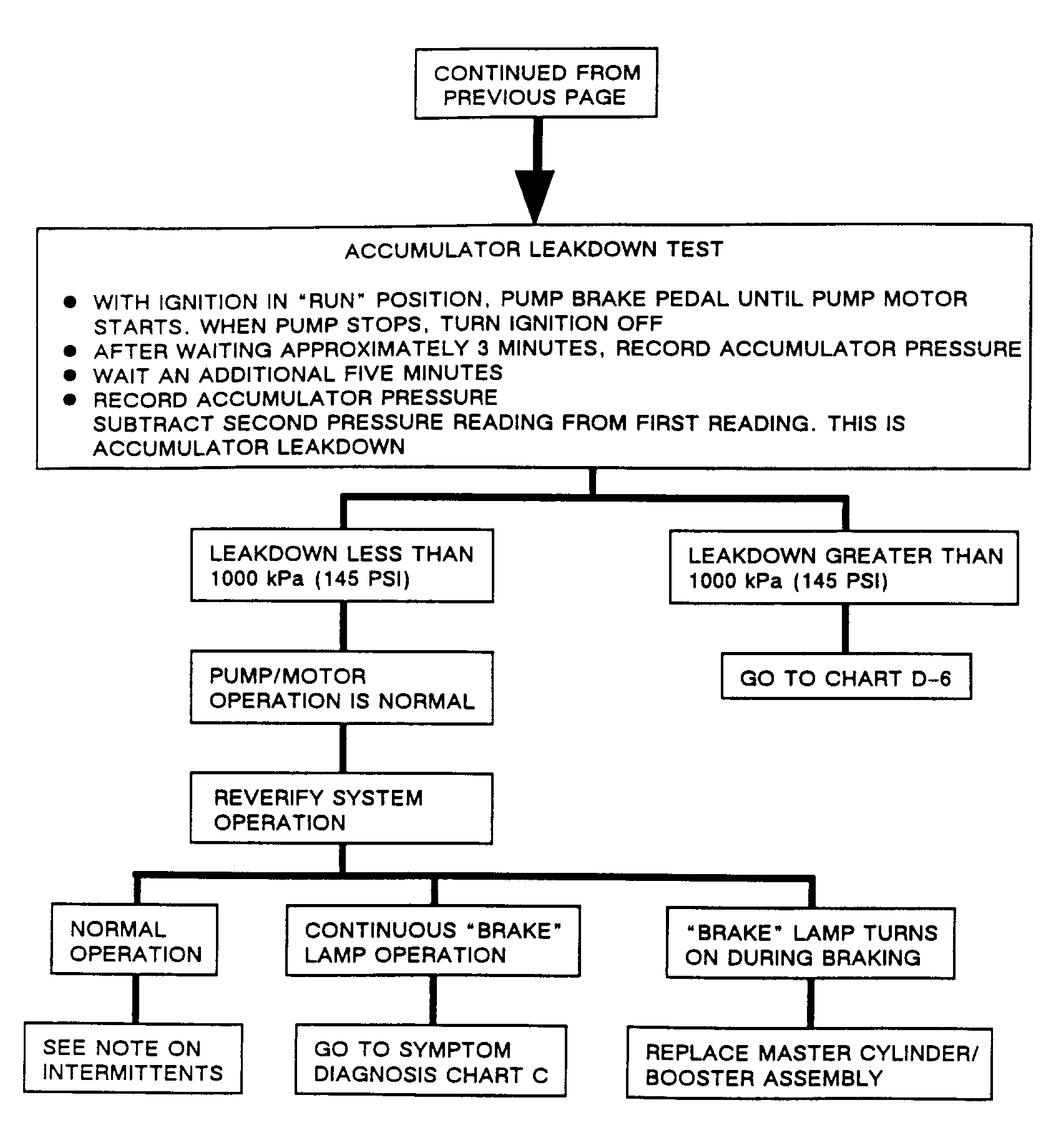

Fig 4: Flow Chart D2 (2 of 2), Hydraulic Unit Functionl Check

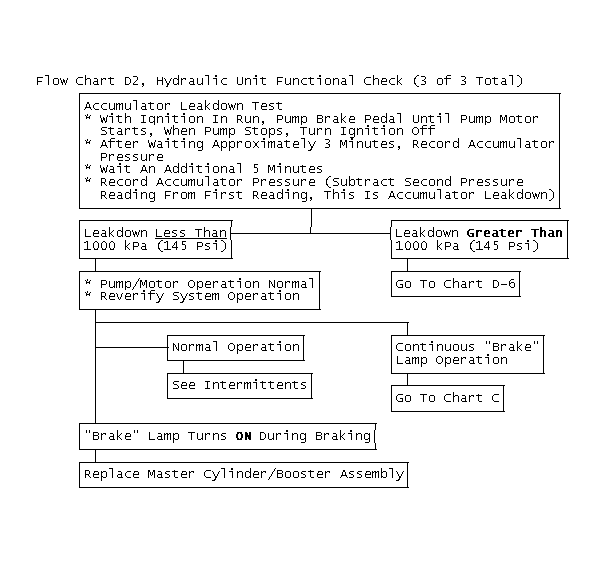

Fig 5: Flow Chart D2, Hydraulic Unit Functional Check (3 of 3 Total)
