Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | On left rear wheelwell. | |
| Automatic Door Lock Module | Behind dash, to right of steering column. | |
| Body Computer Module | ||

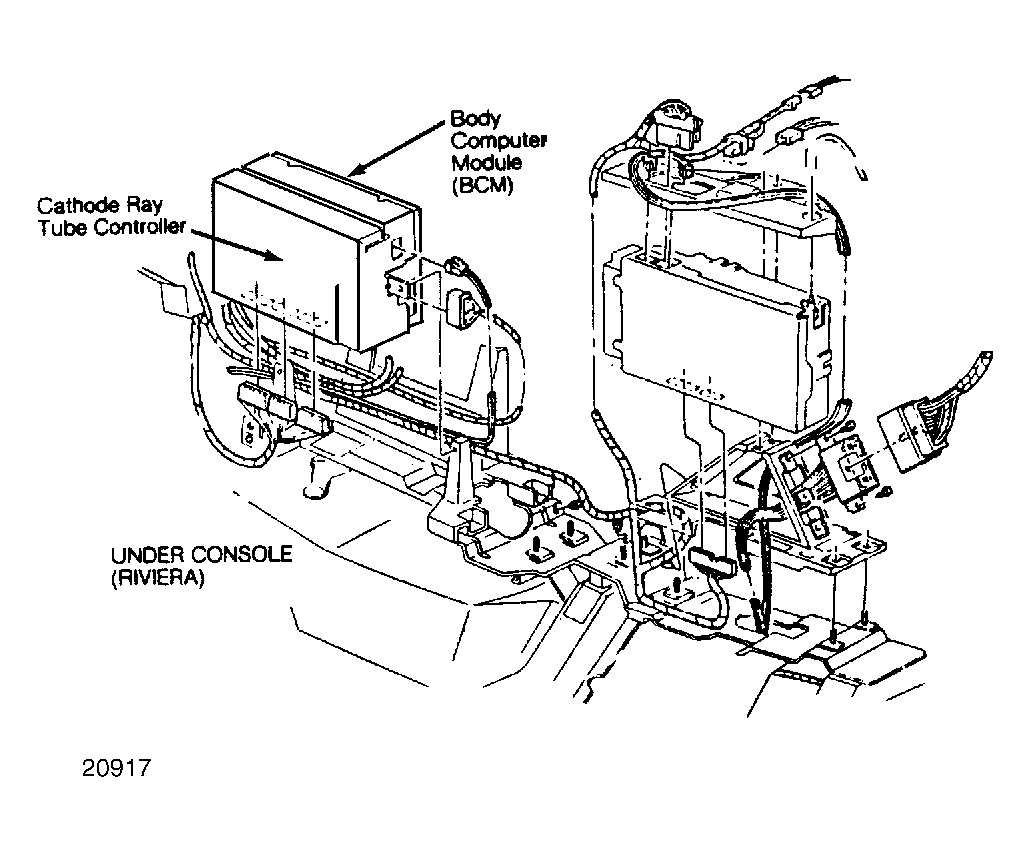

| Riviera | In console between front seats. See Figure . | |

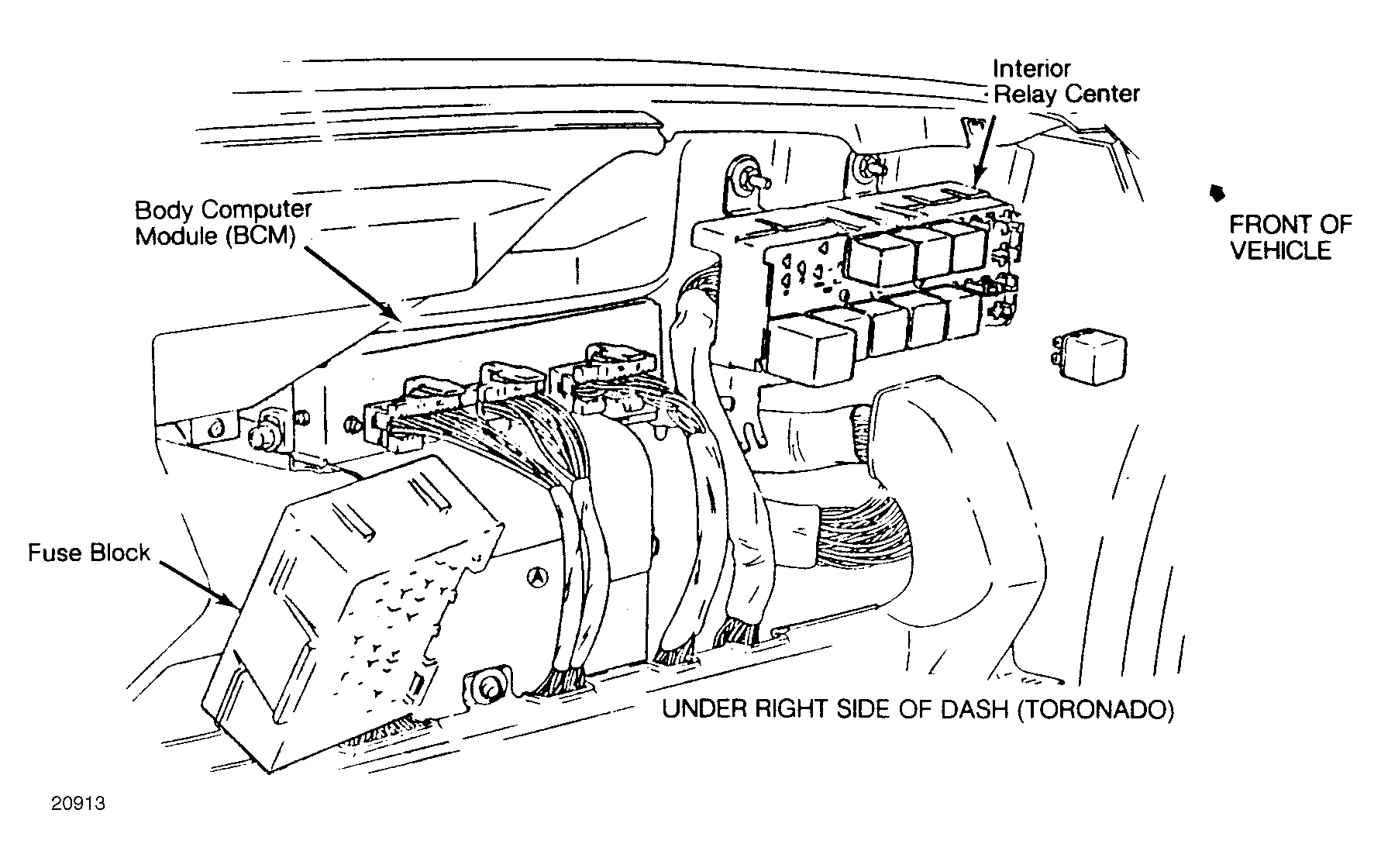

| Toronado | Under right side of dash. See Figure . | |
| Cathode Ray Tube Controller (Reatta & Riviera) | In console between front seats. See Figure . | |

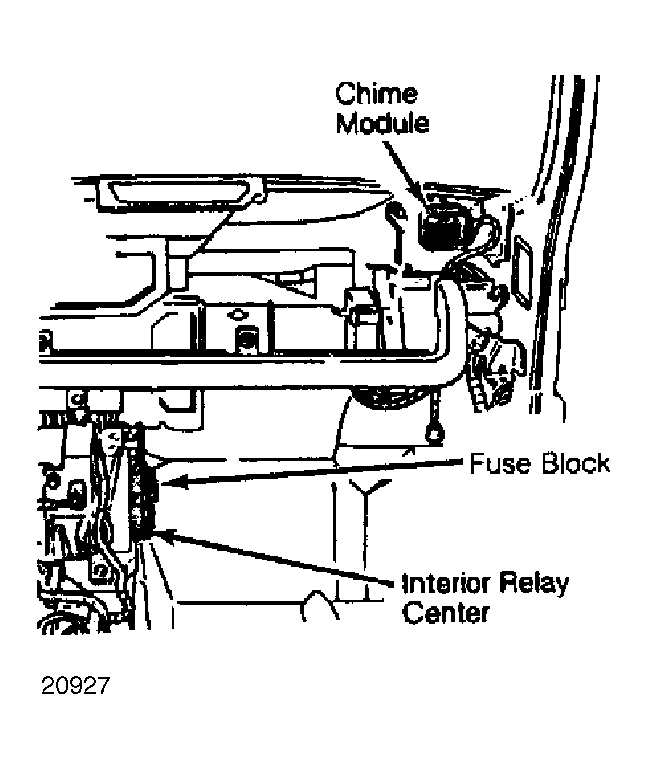

| Chime Module | Under right side of dash, above glove box. See Figure . | |

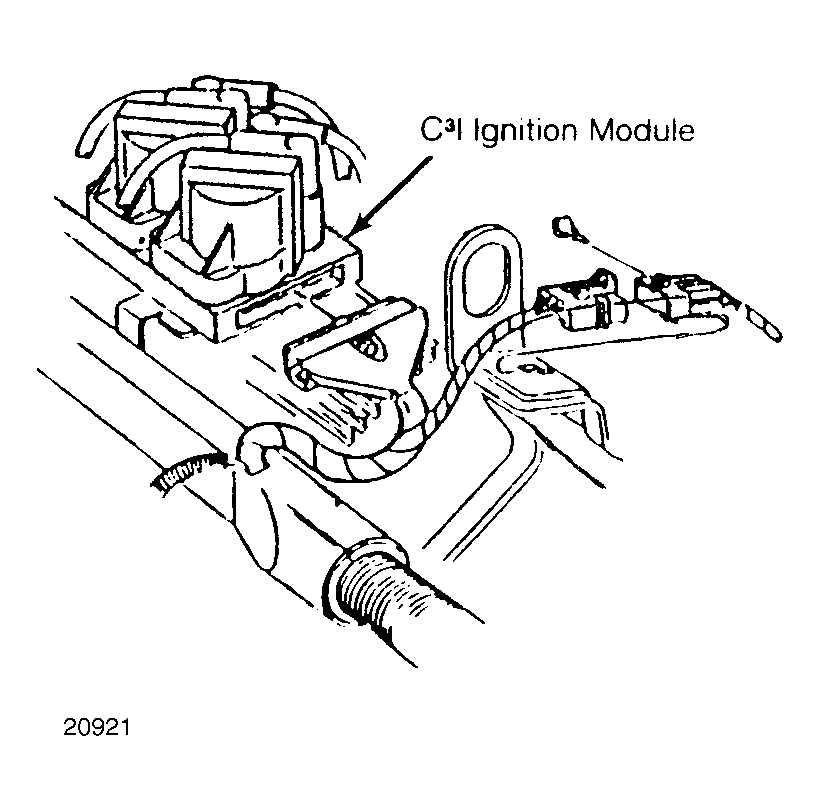

| C(3)I Module | On top front right of engine. See Figure . | |

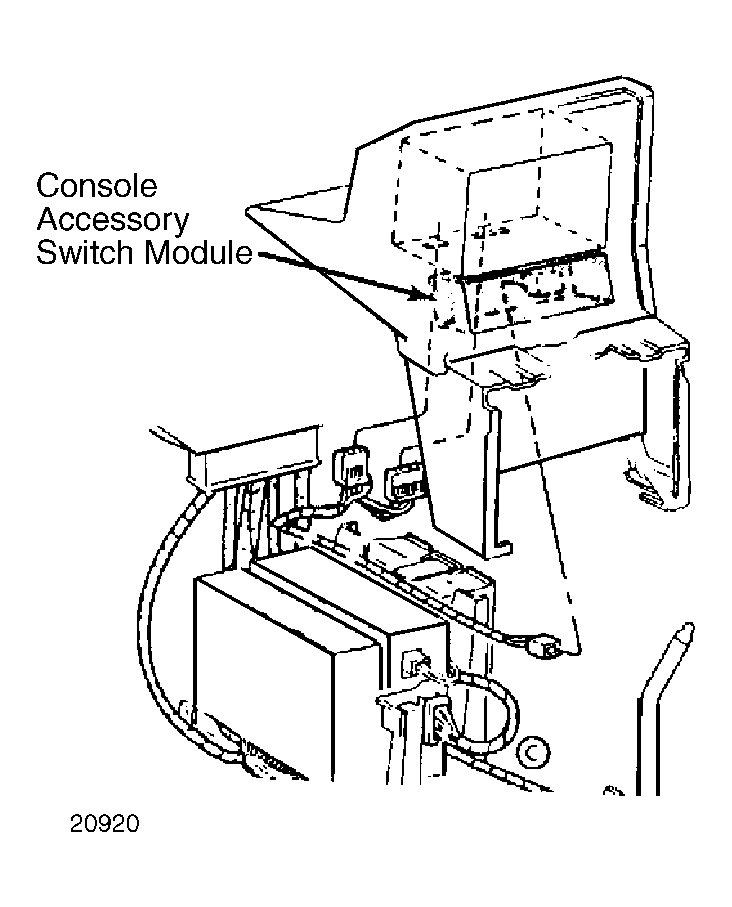

| Console Accy. Switch Module | At front of console. See Figure . | |
| Elect. Climate Control Programmer | Under right side of dash, on right side of plenum. | |
| Electronic Control Module (ECM) | Behind right kick panel. | |
| Headlight Door Control Module | In front left corner of engine compartment. | |
| Keyless Entry Module | Under rear package shelf in trunk. | |
| Sun Roof Timer Module | In right side of windshield header. | |

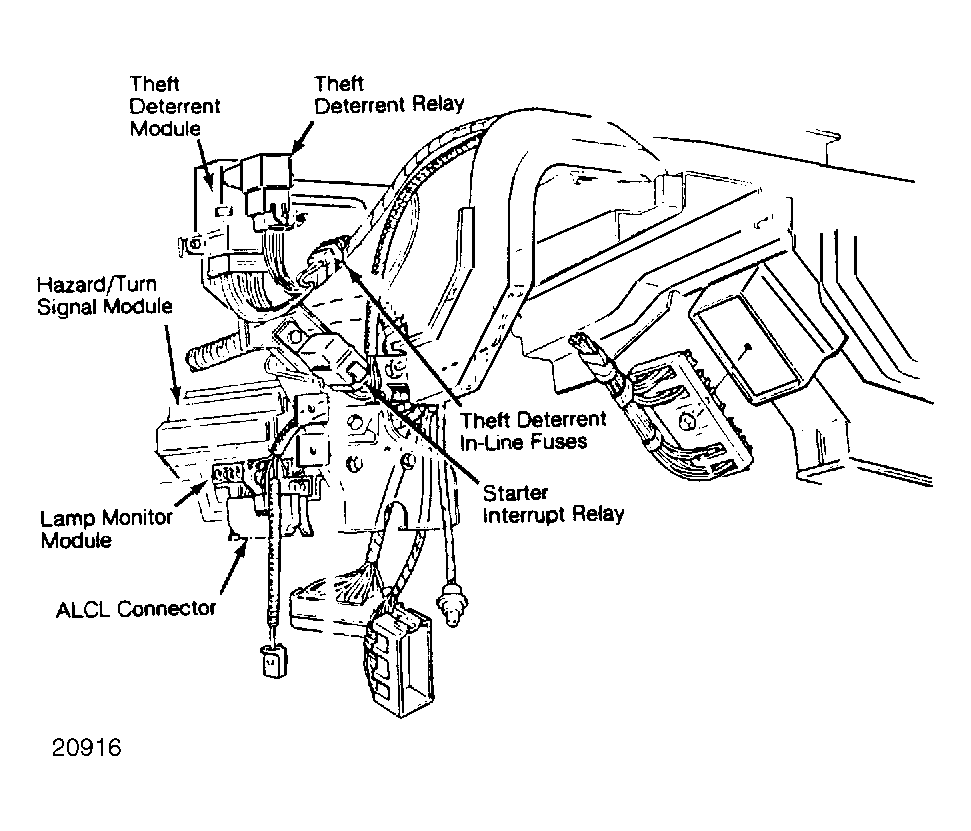

| Theft Deterrent Module | Under left side of dash, to left of steering column. See Figure . | |
| Turn Signal Alert Module (Reatta & Riviera) | On bracket under left side of dash. See Figure . | |
| Turn Signal Module (Reatta & Riviera) | Under left side of dash, near steering column. | |
| Wiper/Washer Motor Module | Integral with wiper motor, on firewall. | |
