Component Locations

NOTE: For component location and identification during testing see Fig 1 .

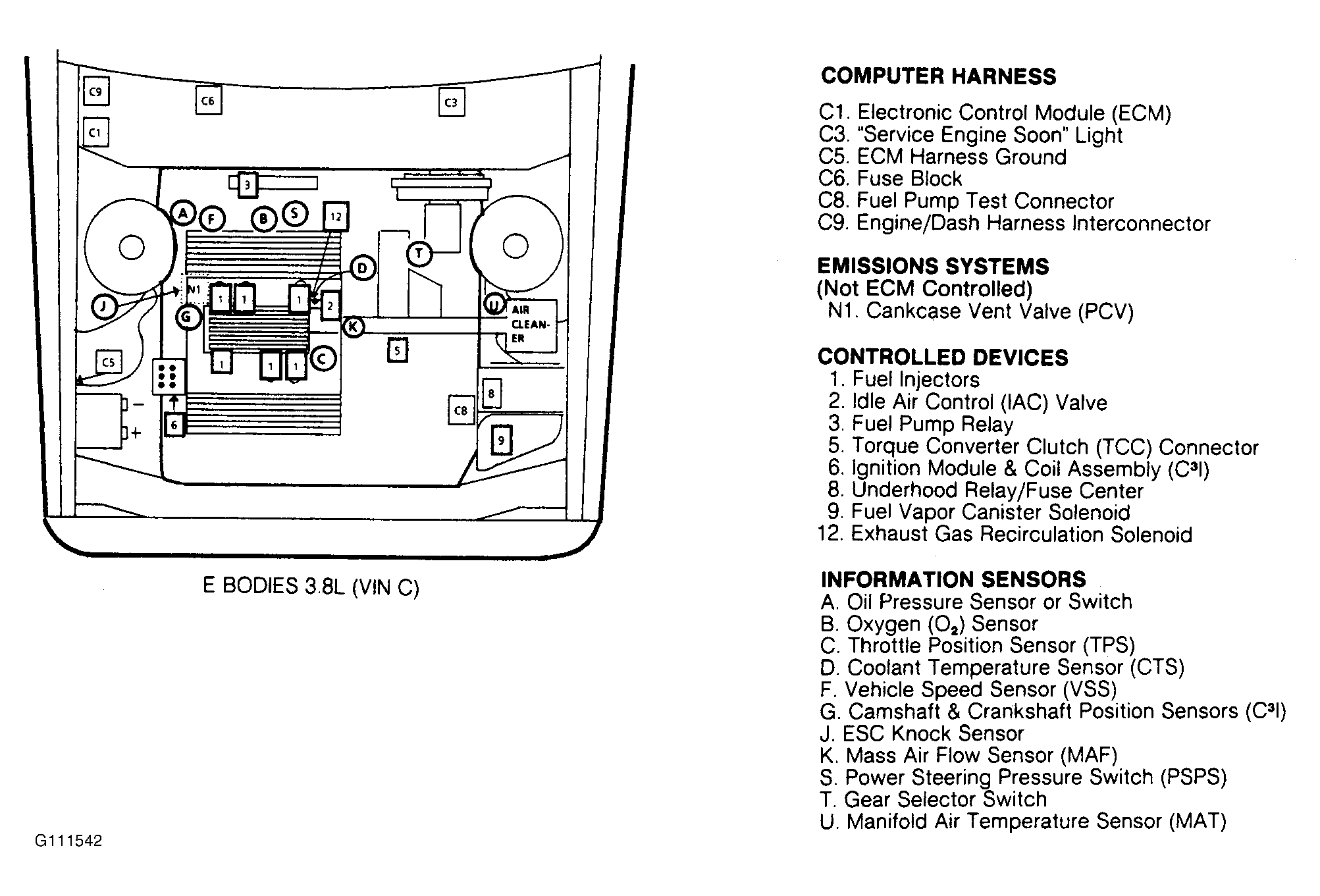

Fig 1: Port Fuel Injection Component Locations for 3.8L 3800 ECM/BCM Engine (VIN C)

Courtesy of GENERAL MOTORS CORP.
