Home >> Buick >> 1989 >> Reatta >> Repair and Diagnosis >> Engine Performance >> System >> 3.8L BCM Tests W/Codes >> Self-Diagnostics >> Serial Data Circuit Multiple Intermittent Codes

Serial Data Circuit Multiple Intermittent Codes

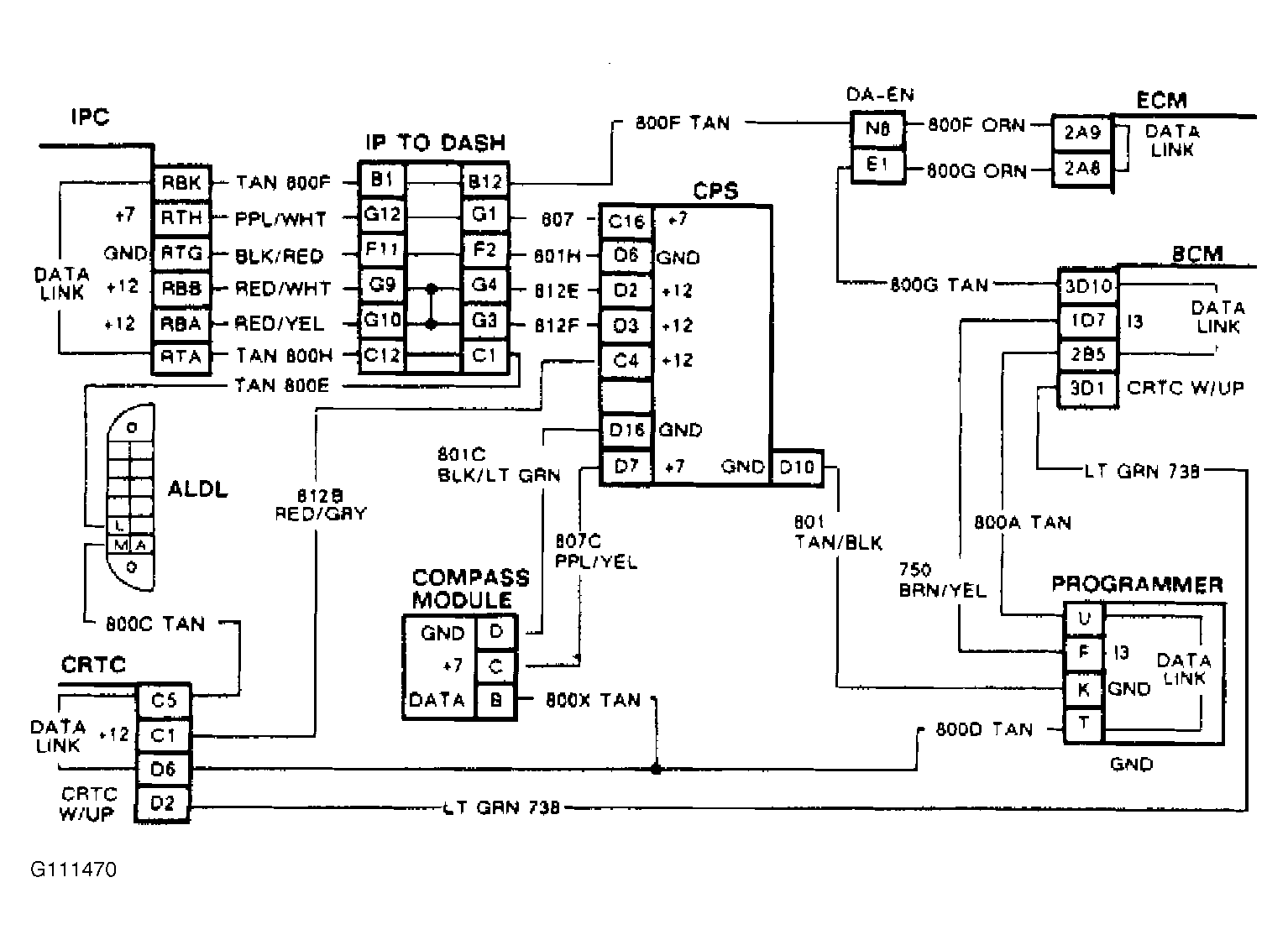

Fig 1: Serial Data, Wiring Diagram Circuit Multiple Intermittent Codes

G111470

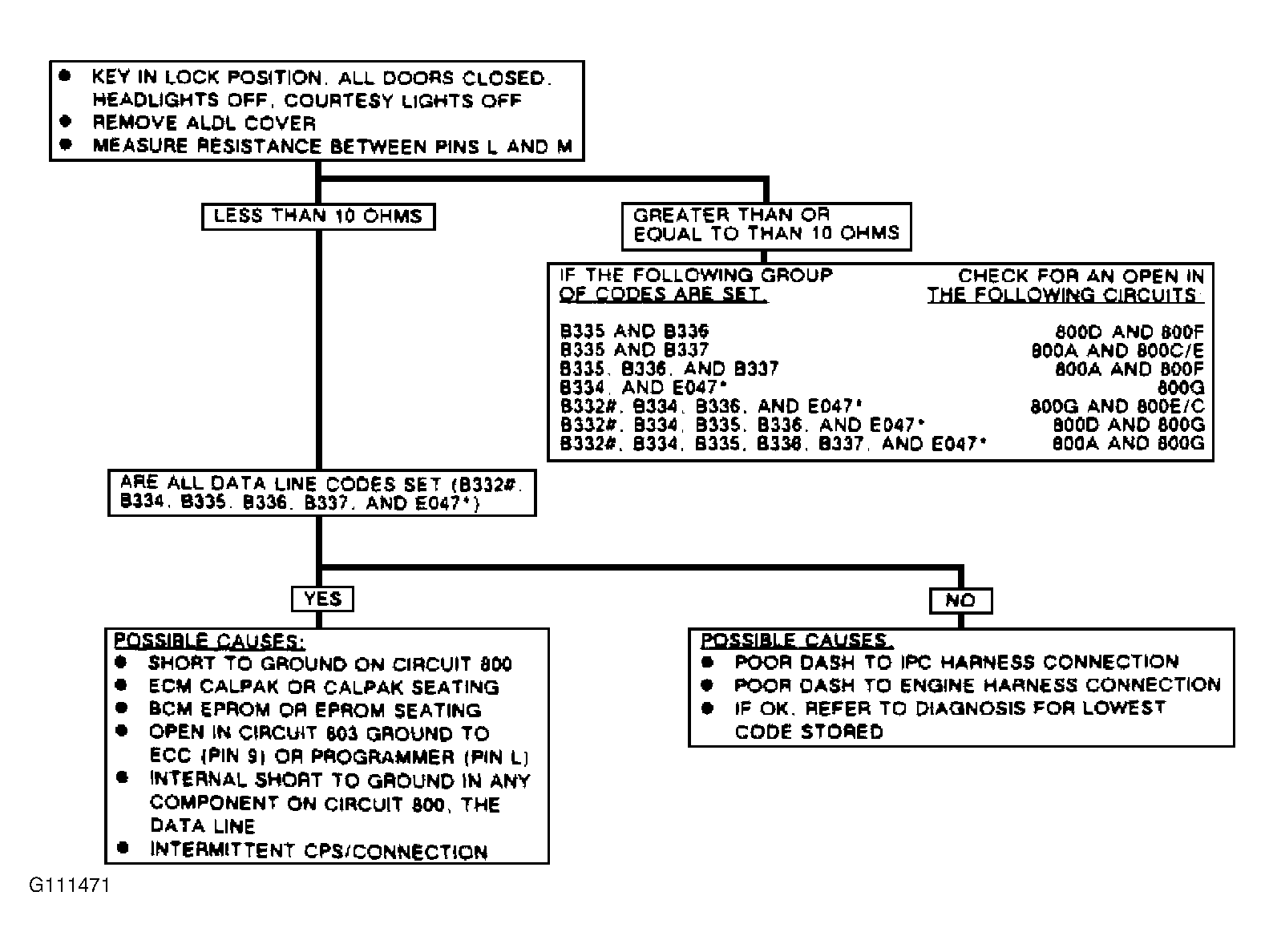

Fig 2: Serial Data, Flow Chart Circuit Multiple Intermittent Codes

G111471
