Home >> Buick >> 1992 >> LeSabre Custom >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> System Tests >> Test C: Transmitter/Module Isolation

Test C: Transmitter/Module Isolation

To perform Transmitter/Module Isolation testing, refer to illustration. See Fig 1 .

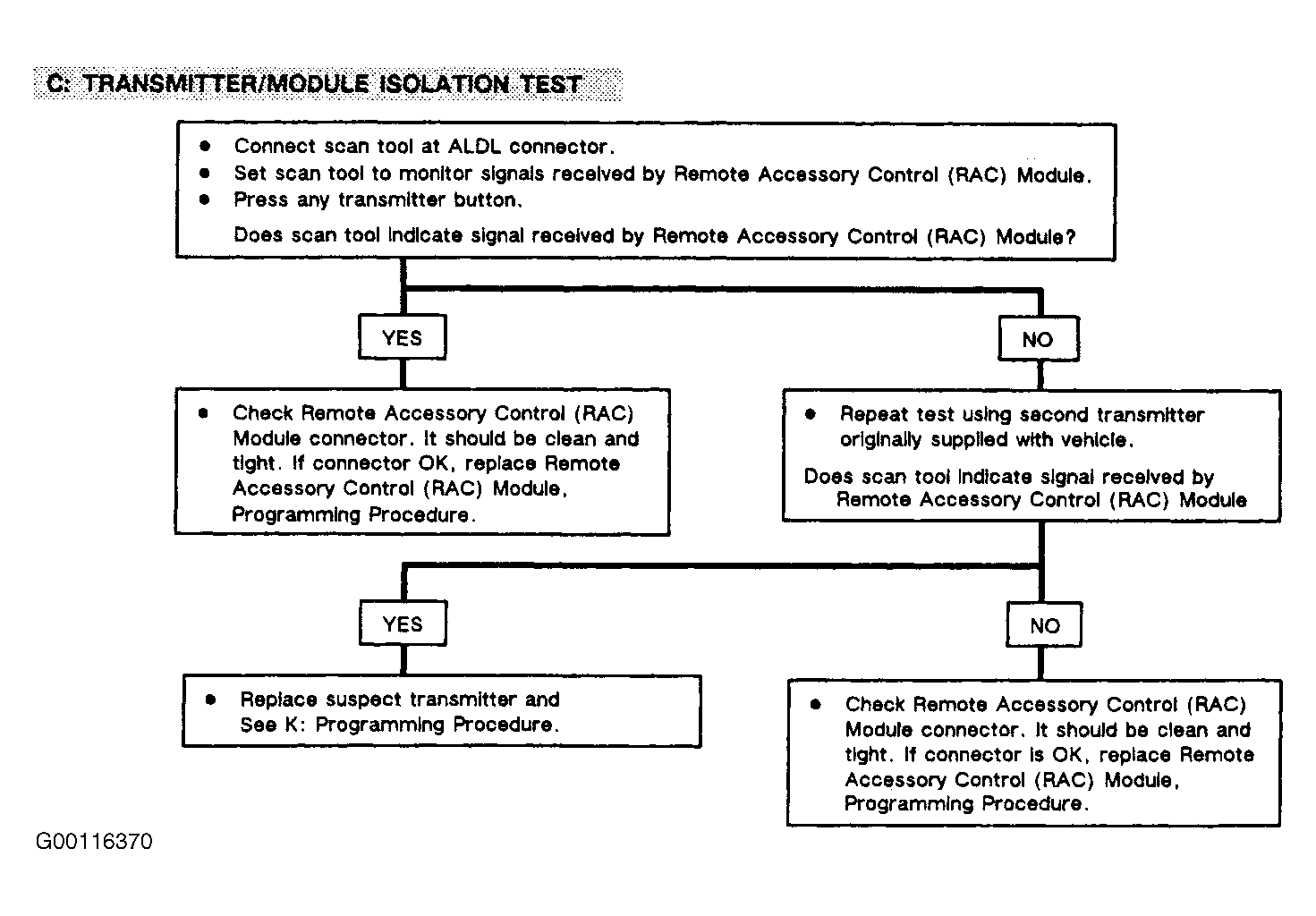

Fig 1: Testing Transmitter/Module Isolation

G00116370

Courtesy of GENERAL MOTORS CORP.
