Home >> Buick >> 1992 >> LeSabre Custom >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test B: Express Down Window Module

Test B: Express Down Window Module

For test procedure, refer to illustration. See Fig 1.

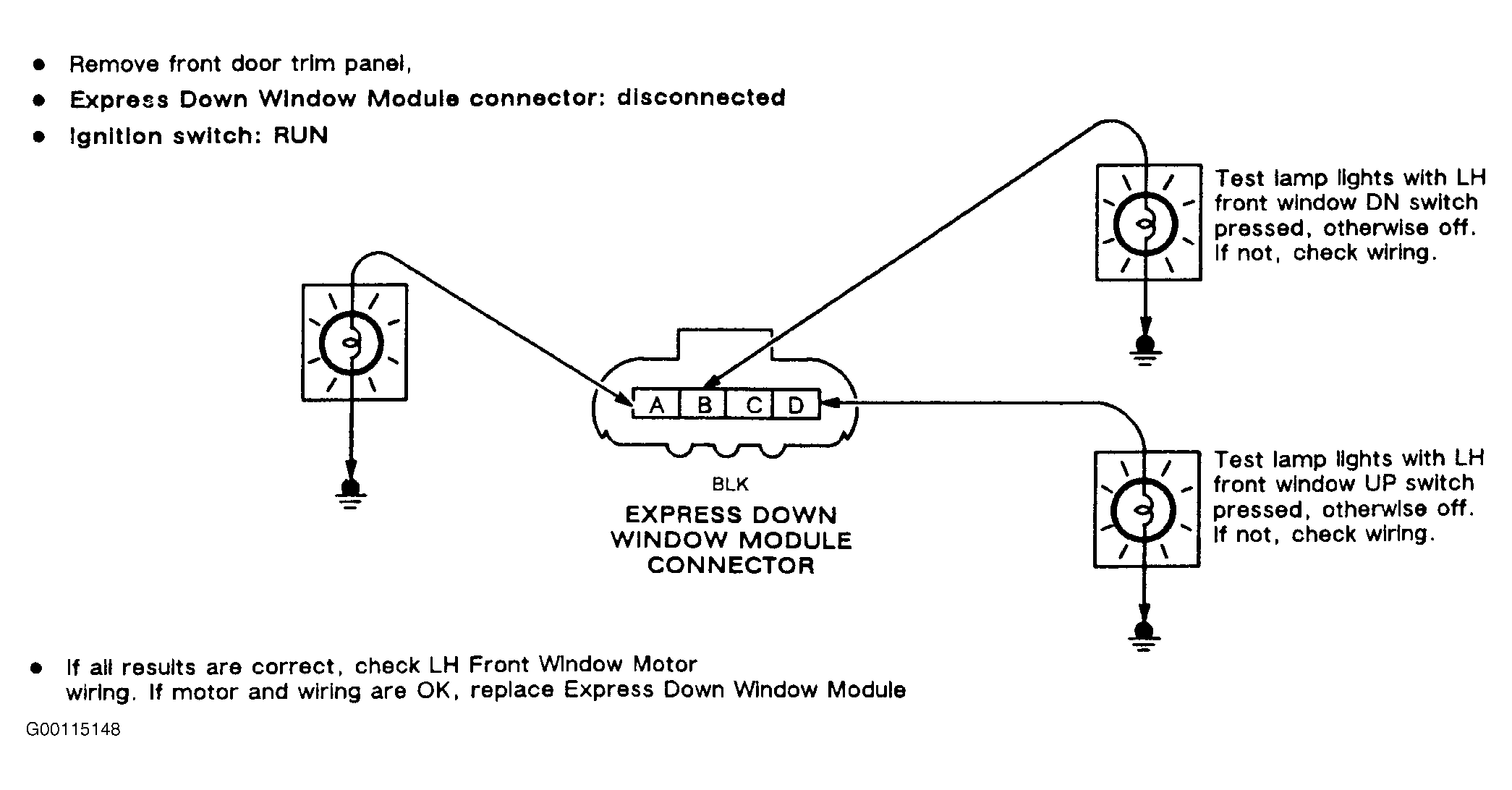

Fig 1: Test B: Express Down Window Module

G00115148

Courtesy of GENERAL MOTORS CORP.
