Home >> Buick >> 1992 >> LeSabre Custom >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test C: Window Lock-Out Switch

Test C: Window Lock-Out Switch

For test procedure, refer to illustration. See Fig 1.

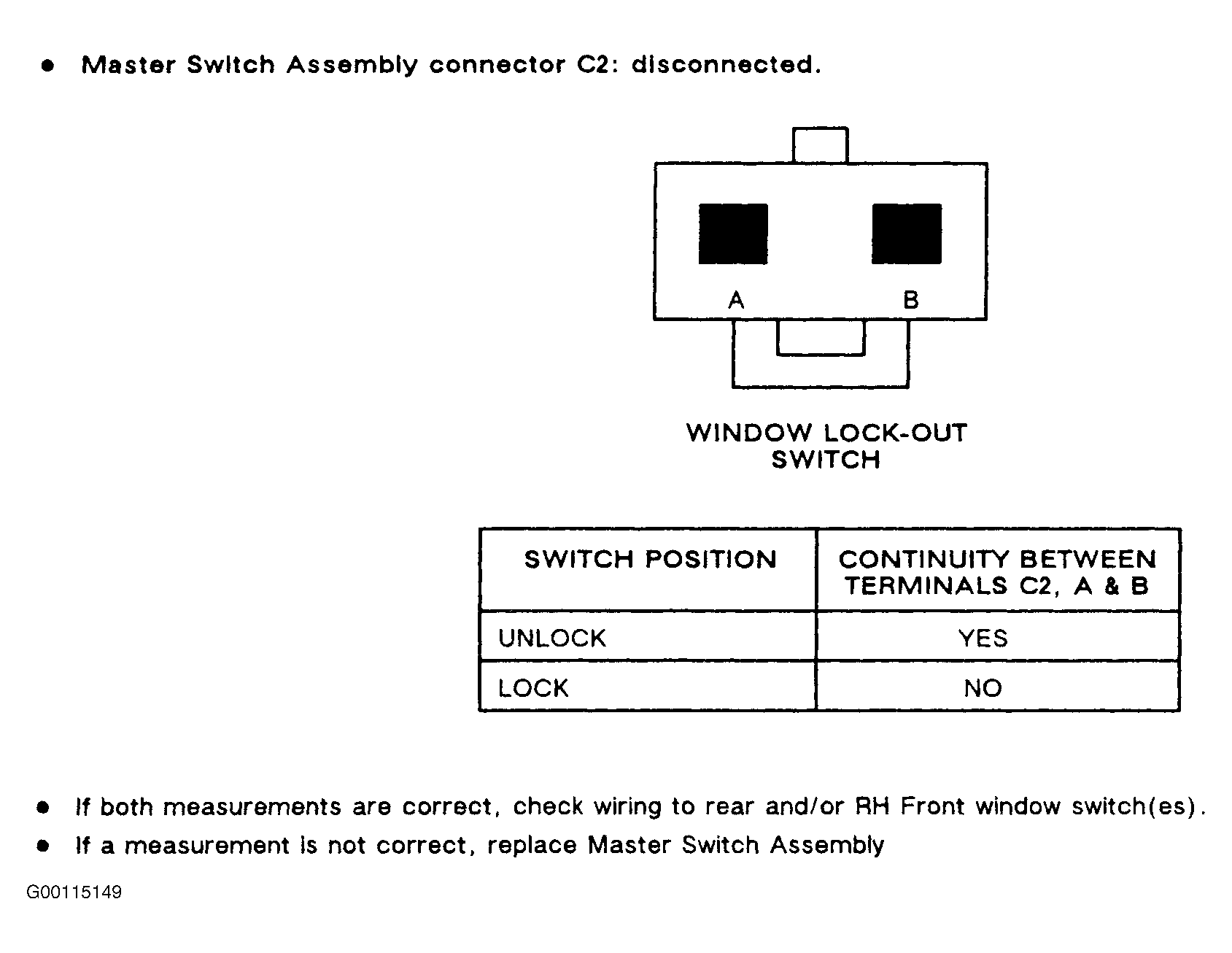

Fig 1: Test C: Window Lock-Out Switch

G00115149

Courtesy of GENERAL MOTORS CORP.
