Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

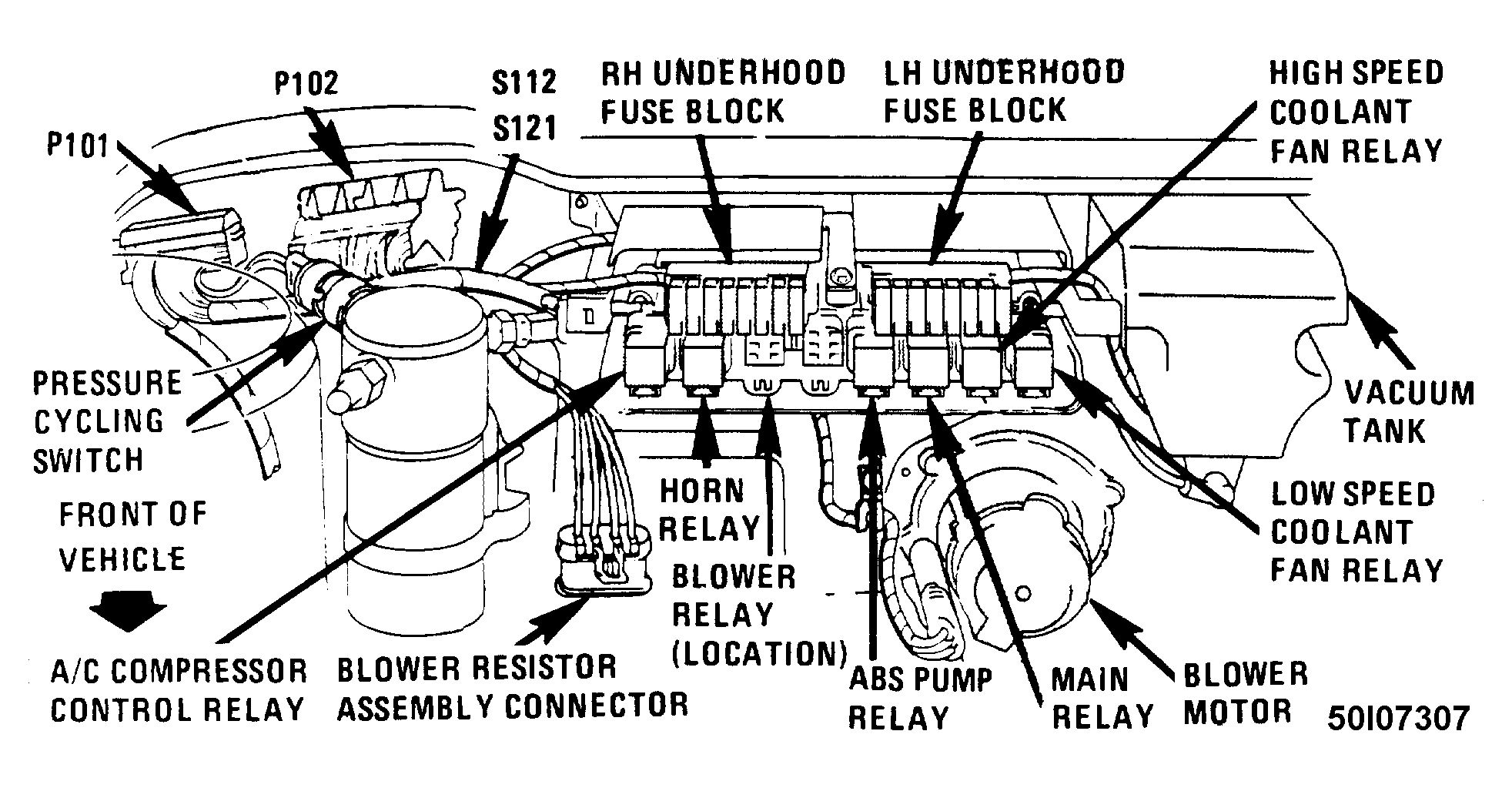

| A/C-Heater Blower Control Module | On right side of firewall, near blower motor. See Figure | |
| Adaptive Light Monitor Module | Behind center of dash. | |
| Air Bag System | ||
| Inflator Module | In steering wheel pad. | |
| Resistor Module | Behind right side of dash, above fuse/relay block. | |
| Diag. Energy Reserve Module (DERM) | Behind right side of dash. | |
| Electronic Brake Control Module | Behind center of instrument panel, right of steering column. | |
| Electronic Compass Module | Below rear deck shelf. | |
| Headlight Washer Module | Behind washer fluid reservoir. | |
| Head Up Display Control Module | Behind center of dash. | |
| Heated Windshield | ||
| Control Module | Behind right side of front bumper. | |
| Power Module | Behind right of front bumper. | |
| Light Control Module | Behind left side of dash, left of steering column. | |
| Low Coolant Level Module | On right side of radiator. | |
| Multi-Function Chime Module | Behind center of dash. | |
| Oil Level Module | Behind right side of dash. | |
| Pass-Key Decoder Module | Behind right side of dash. | |
| Powertrain Control Module (PCM) | Behind right side of dash. See Figure & Figure . | |
| Power Seat Control Module | Under driver's seat. | |
| Power Window (Express Down) Module | In center rear of left front door. | |
| Remote Accessory Control Module | Behind right side of dash. | |
| Remote Dimmer Module | Behind right side of dash, below glove compartment. | |
| Sun Roof Control Module | On center rear of sun roof, next to sun roof motor. | |
| Wiper Motor Module | On left rear of engine compartment, behind strut tower. | |
