Test Description

  1. Isolates a power door lock system fault or a keyless entry system fault.
  2. Checks for battery voltage at keyless entry receiver.
  3. Checks for ground at keyless entry receiver.

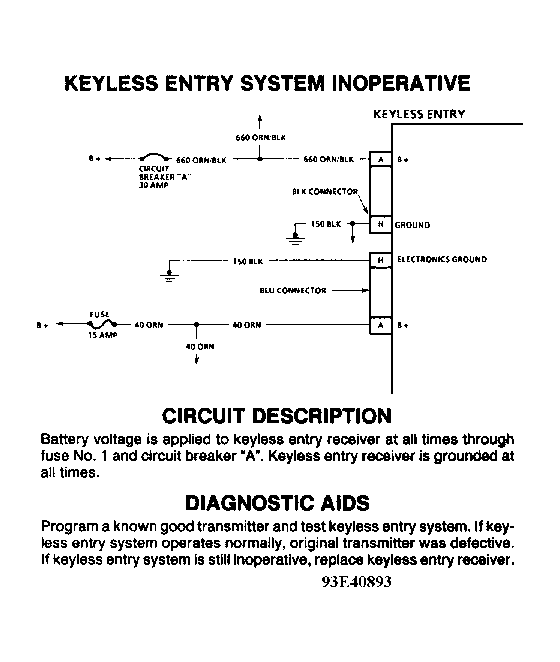

Fig 1: Keyless Entry System Inoperative; Schematic
G93E40893Courtesy of GENERAL MOTORS CORP.

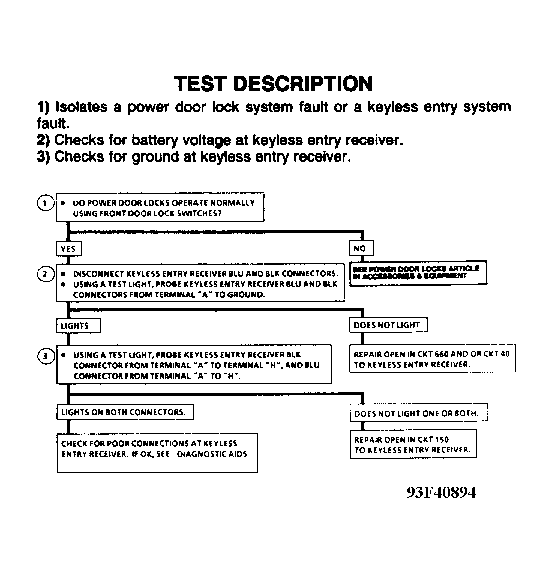

Fig 2: Keyless Entry System Inoperative; Flow Chart
G93F40894Courtesy of GENERAL MOTORS CORP.
