Window Regulator: Installation

  1. Install window regulator assembly.
  2. Install upper rearmost, center rearmost, center foremost, then lower rearmost rivets (97) securing window regulator (98 or 101) to door panel. See Fig 2 .
  3. Connect electrical connection.
  4. Install screws (99) securing window regulator cam assembly (100 or 102) to door inner panel.
  5. Install rivets (96) connecting window sash (92) to regulator sash (95). See Fig 1 .
  6. Install door latch module assembly.
  7. Remove cloth-backed tape. Inspect window regulator (98 or 101) operation.
  8. Inspect window glass (94) alignment.
  9. Install water deflector.
  10. Install door trim panel.

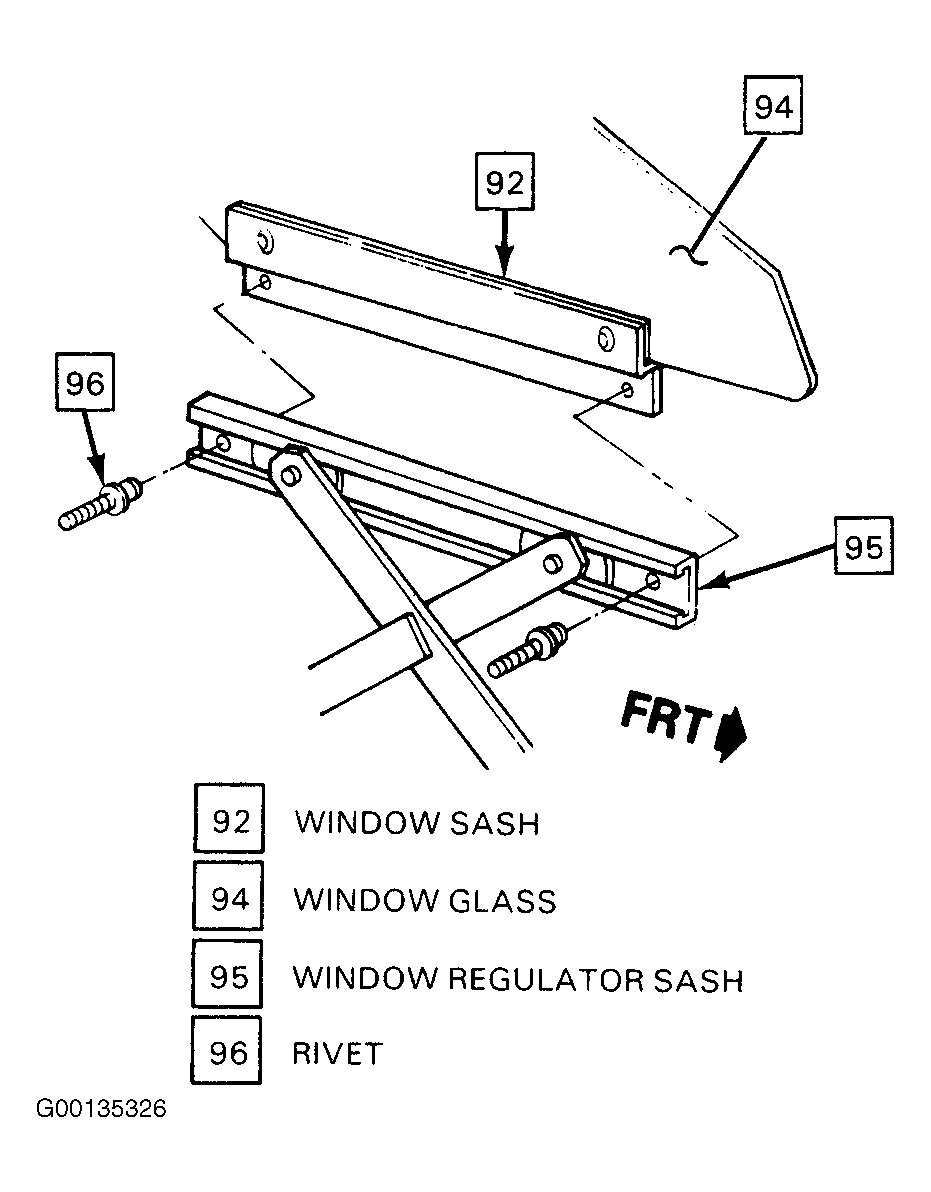

Fig 1: Removing & Installing Window Sash
G00135326Courtesy of GENERAL MOTORS CORP.

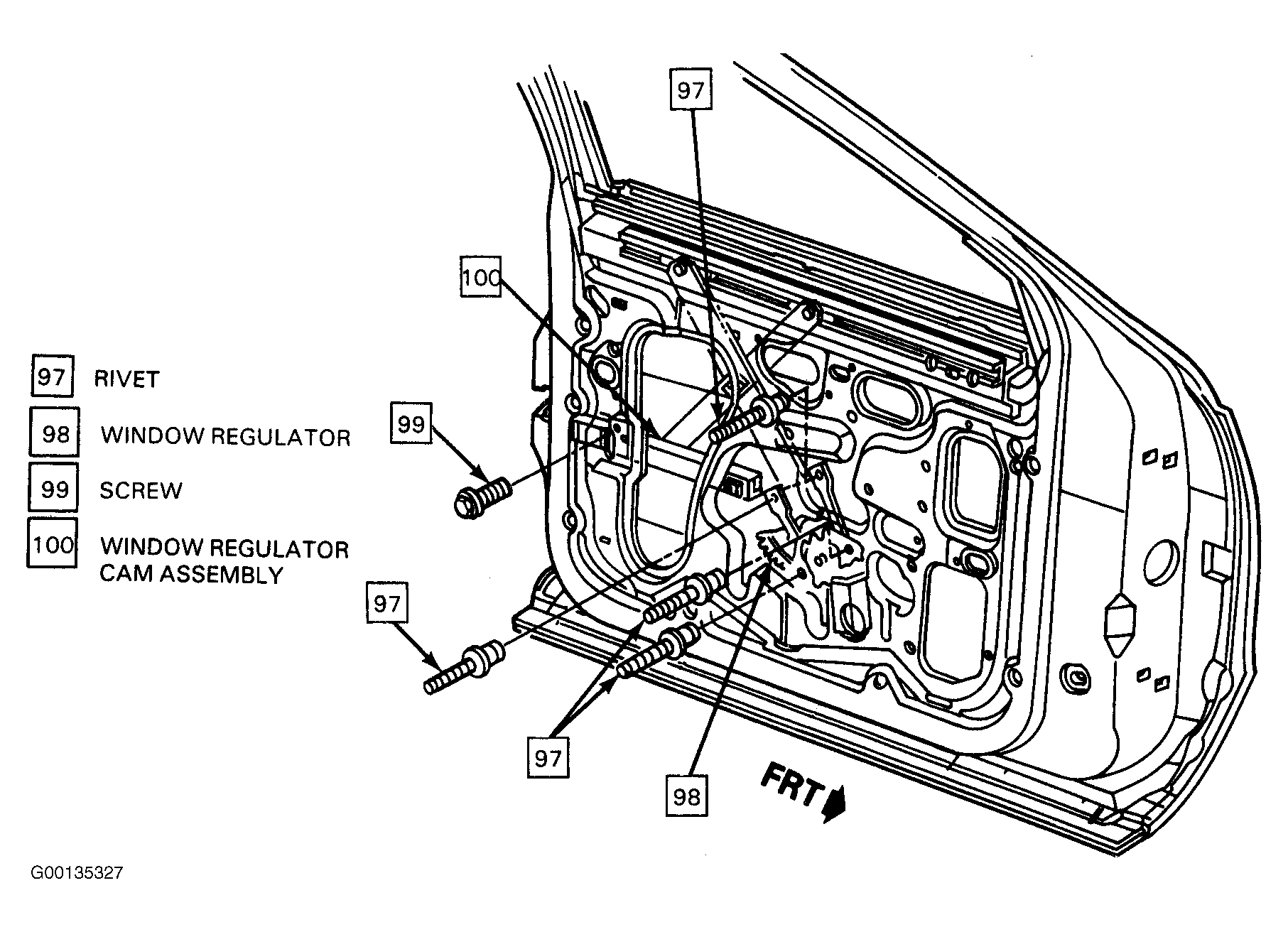

Fig 2: Removing & Installing Front Door Window Regulator
G00135327Courtesy of GENERAL MOTORS CORP.


  1. Install window regulator assembly.
  2. Install upper rearmost, center rearmost, center foremost, then lower rearmost rivets (97) securing window regulator (98 or 101) to door panel. See Fig 1 .
  3. Connect electrical connection.
  4. Install screws (99) securing window regulator cam assembly (100 or 102) to door inner panel.
  5. Install rivets (96) connecting window sash (92) to regulator sash (95). See Figure .
  6. Install door latch module assembly. Remove cloth-backed tape. Inspect window regulator (98 or 101) operation. See Figure for front doors or Fig 1 for rear doors. Inspect window glass (94) alignment. See Figure .
  7. Install water deflector.
  8. Install door trim panel.

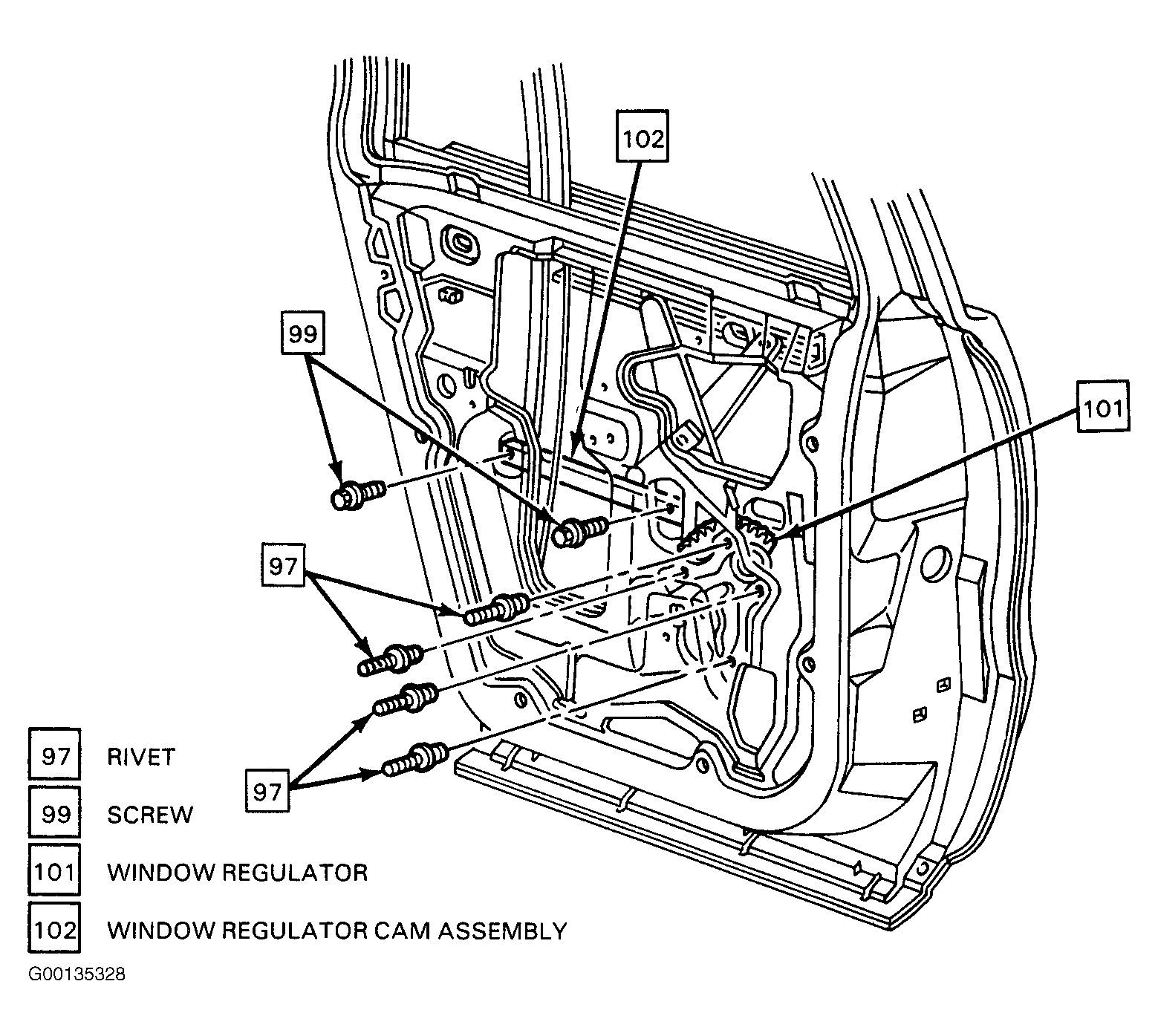

Fig 1: Removing & Installing Rear Door Window Regulator
G00135328Courtesy of GENERAL MOTORS CORP.
