Series Coil Ground Test

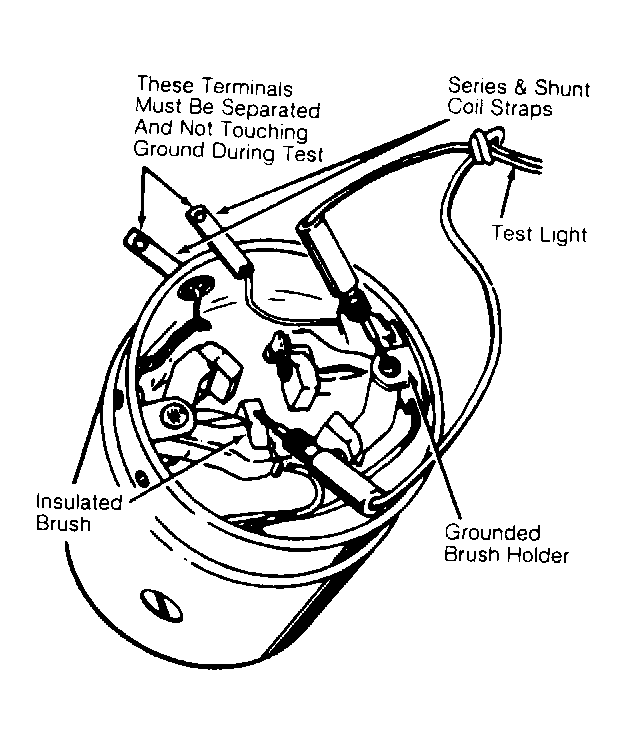

On starters with shunt coil, separate series and shunt coil strap terminals during test. Using test light, place one lead on grounded brush holder and other lead on either insulated brush. See Fig 1. If test light glows, a grounded series coil is indicated. Repair or replace series coil.
