Starting System: Overhaul: Starter

CAUTION: DO NOT clean starter in degreasing tank or with grease dissolving solvents. This will remove lubricant from clutch mechanism.

Starter motors do not require lubrication, except during overhaul. Roll-type overrunning clutch requires no lubrication. Drive assembly, however, should be wiped clean and lubricated with silicon grease on shaft, underneath overrunning clutch assembly. See Fig 1.

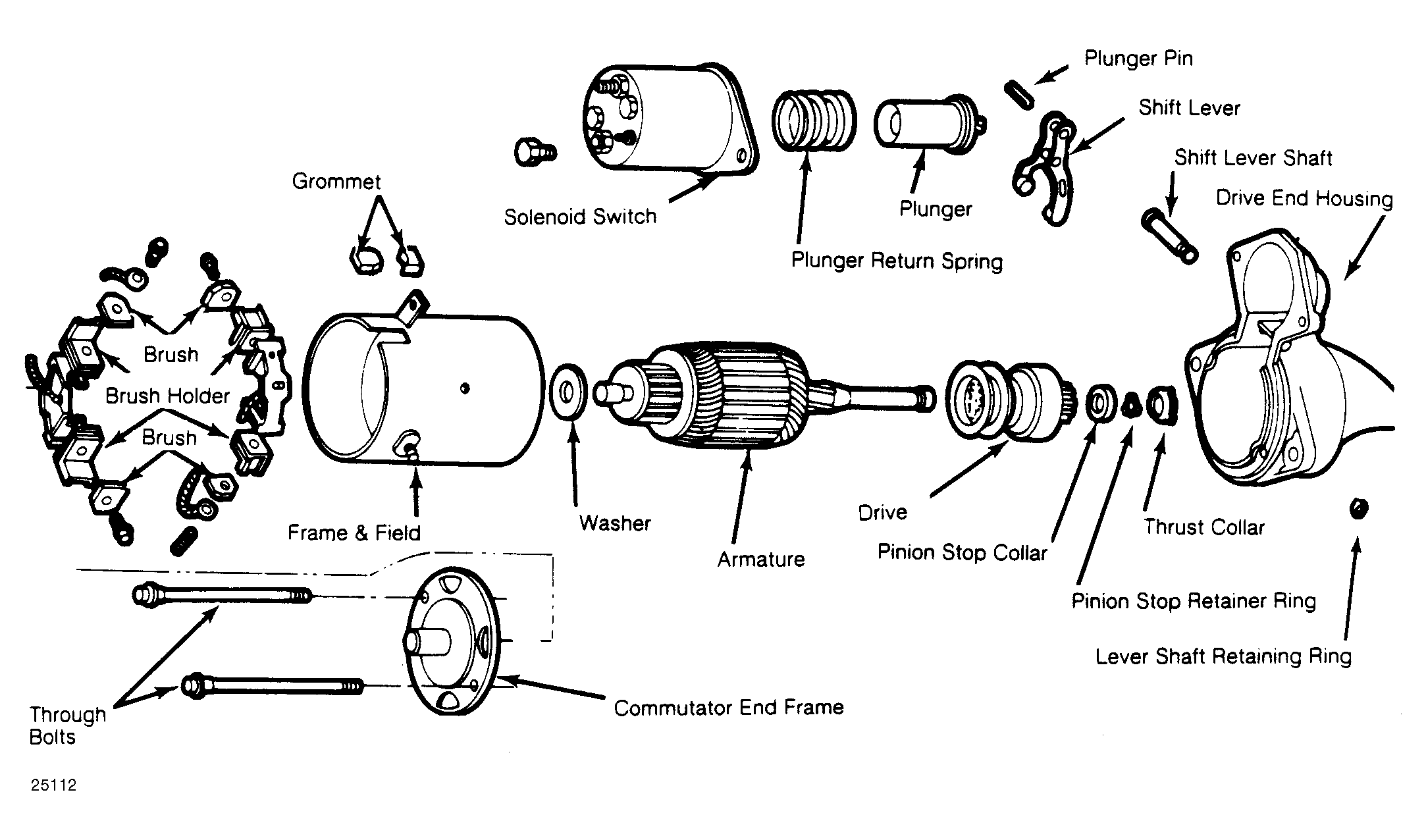

Fig 1: Exploded View of Delco-Remy Starter Motor

Courtesy of GENERAL MOTORS CORP.
