Removal & Installation: Installation

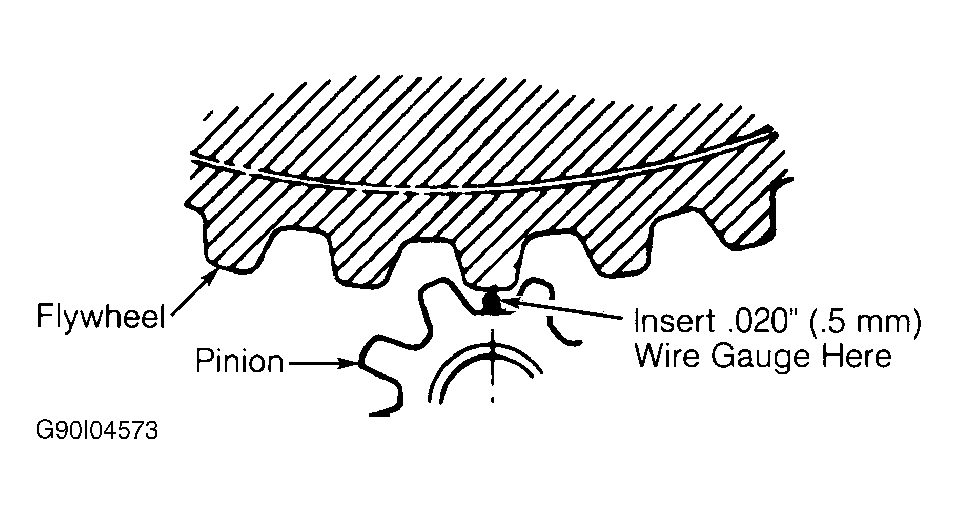

Before installation, ensure pinion-to-flywheel clearance is .020" (0.5 mm). See Fig 1. Add or subtract shims as necessary. To complete installation, reverse removal procedure. Tighten mounting bolts to 32 ft. lbs. (43 N.m).
