Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Component Locations (1 Of 4)
G50I07307
Fig 2: Component Locations (2 Of 4)
G93J39676
Fig 3: Component Locations (3 Of 4)
G93B49735

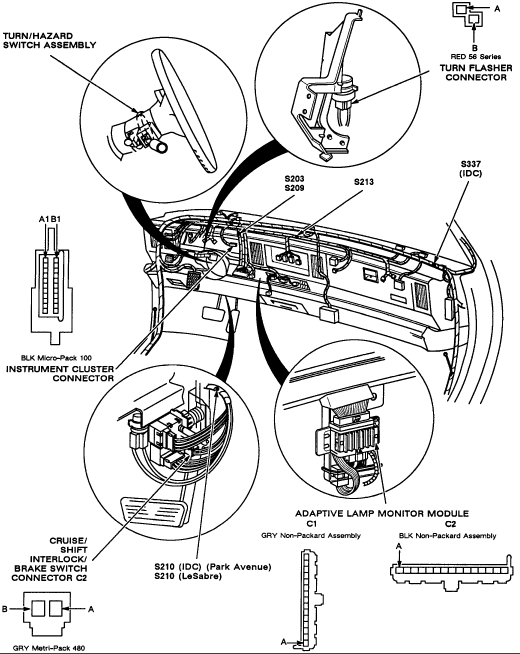

Fig 4: Component Locations (4 Of 4)
G00501064

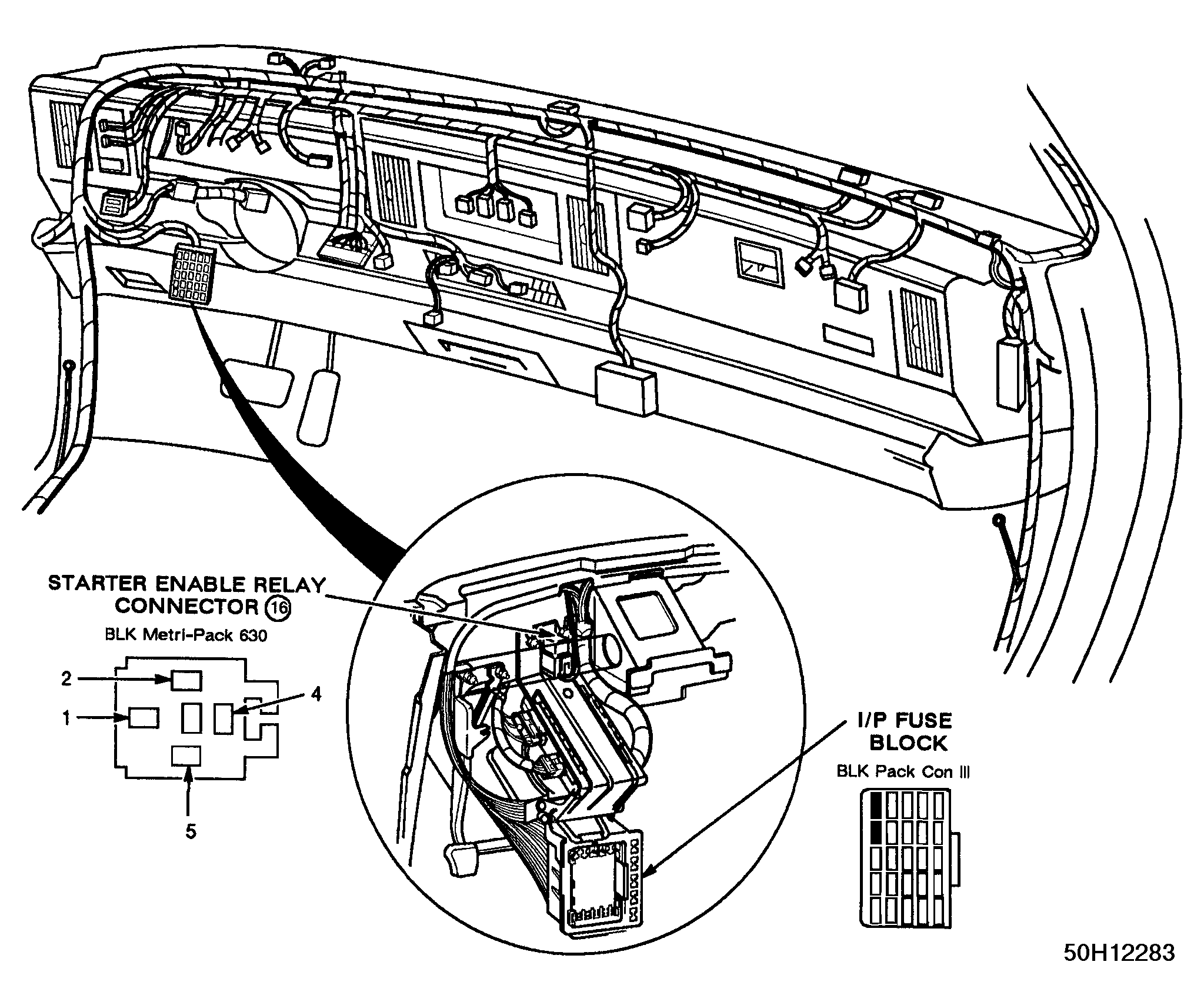

Fig 5: Component Locations (5 Of 4)
G50H12283
