Test Description

  1. Checks for a false ignition ON signal to keyless entry receiver.
  2. Checks courtesy light circuit (circuit No.156) to keyless entry receiver.

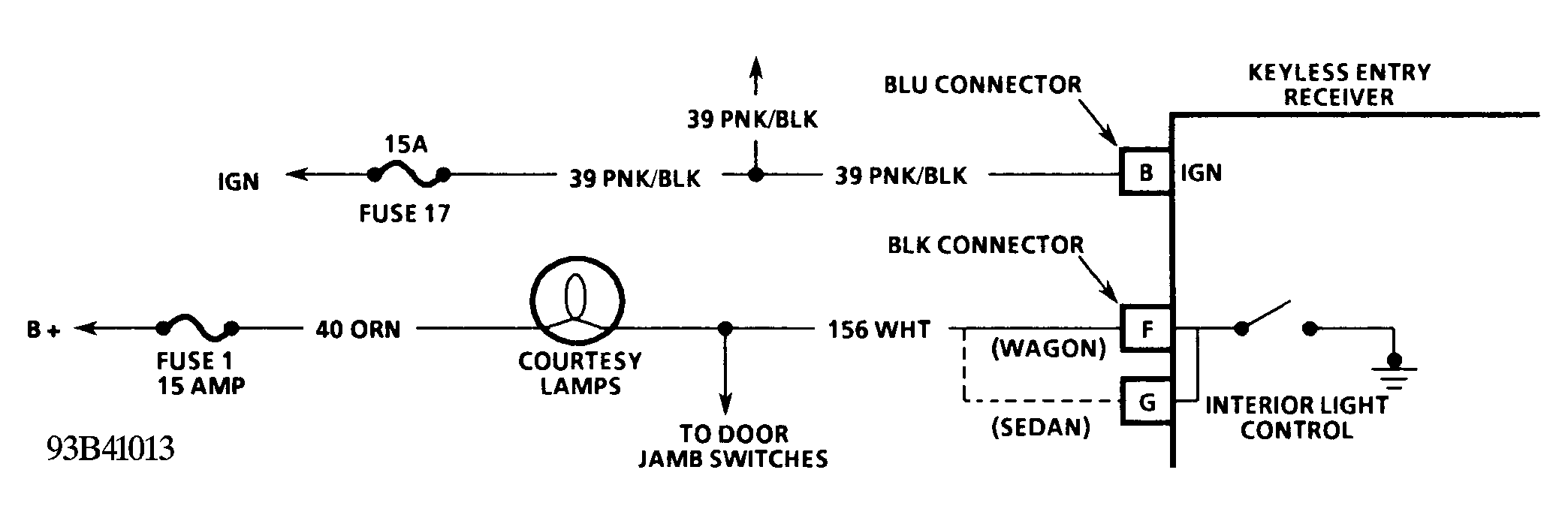

Fig 1: Test 5; Schematic
G93B41013Courtesy of GENERAL MOTORS CORP.

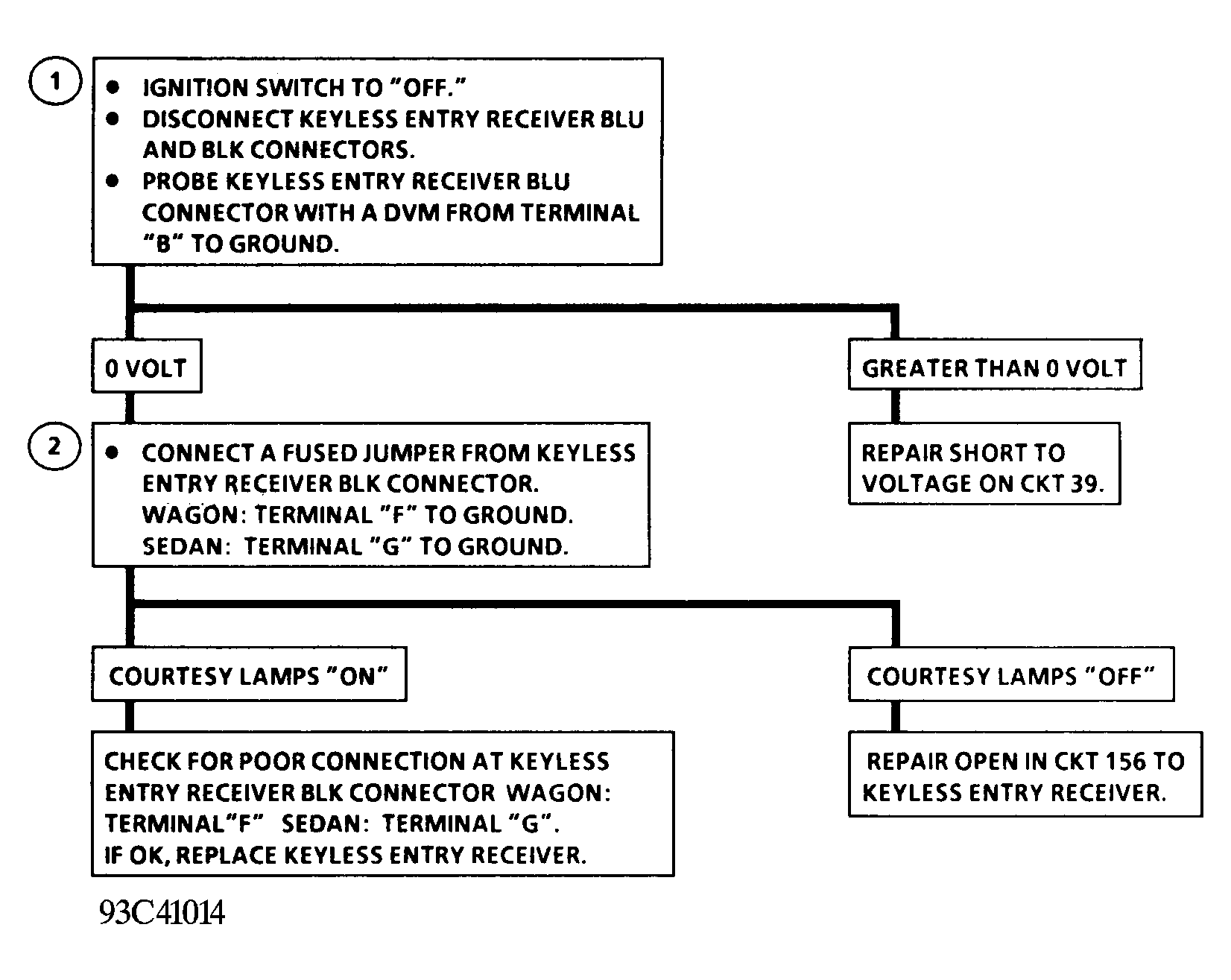

Fig 2: Test 5; Flow Chart
G93C41014Courtesy of GENERAL MOTORS CORP.
