Home >> Buick >> 1993 >> Roadmaster Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> System Testing >> Test 8 >> Test Description

Test Description

  1. Checks that keyless entry receiver applies voltage to circuit No. 1455.

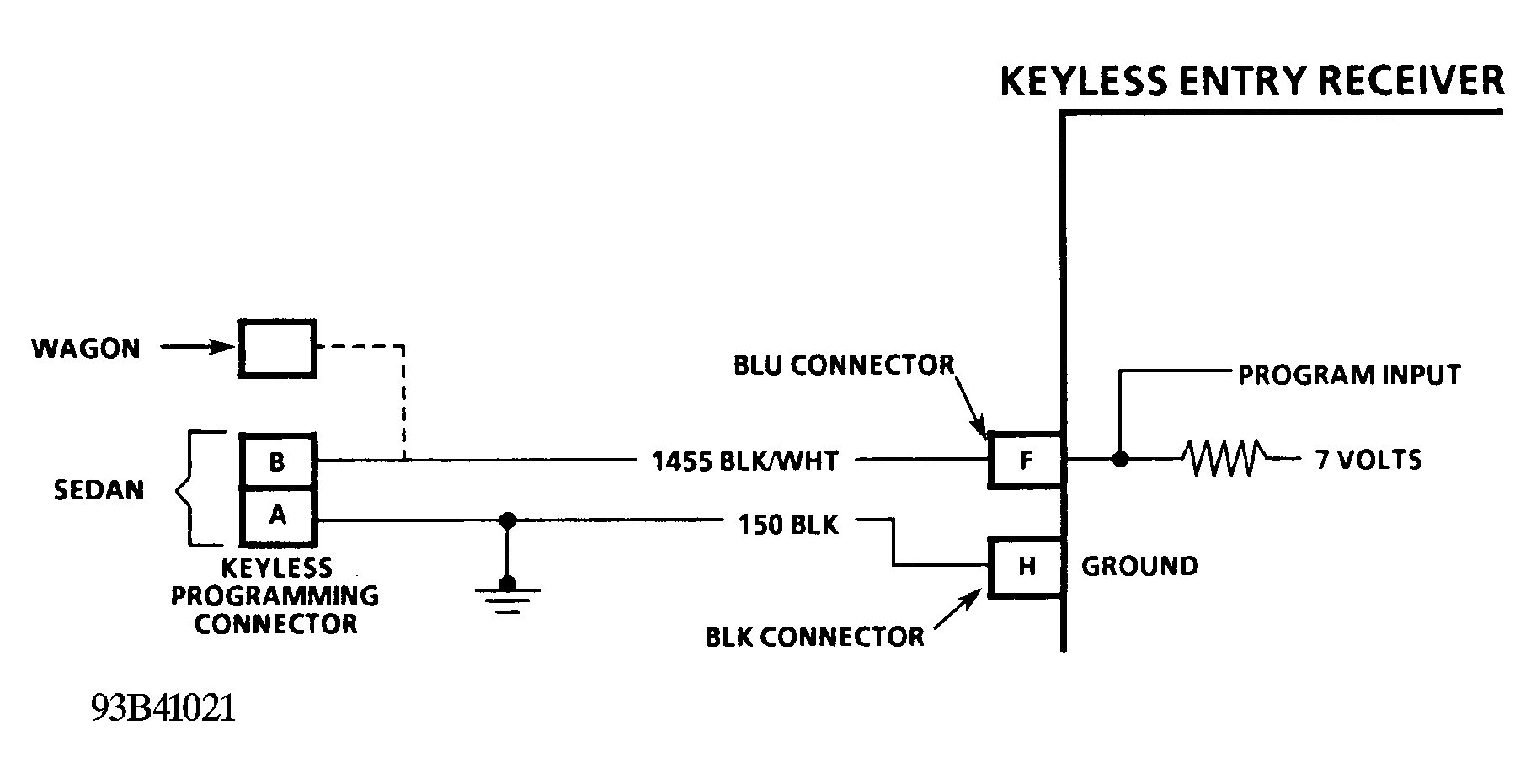

Fig 1: Test 8; Schematic
G93B41021Courtesy of GENERAL MOTORS CORP.

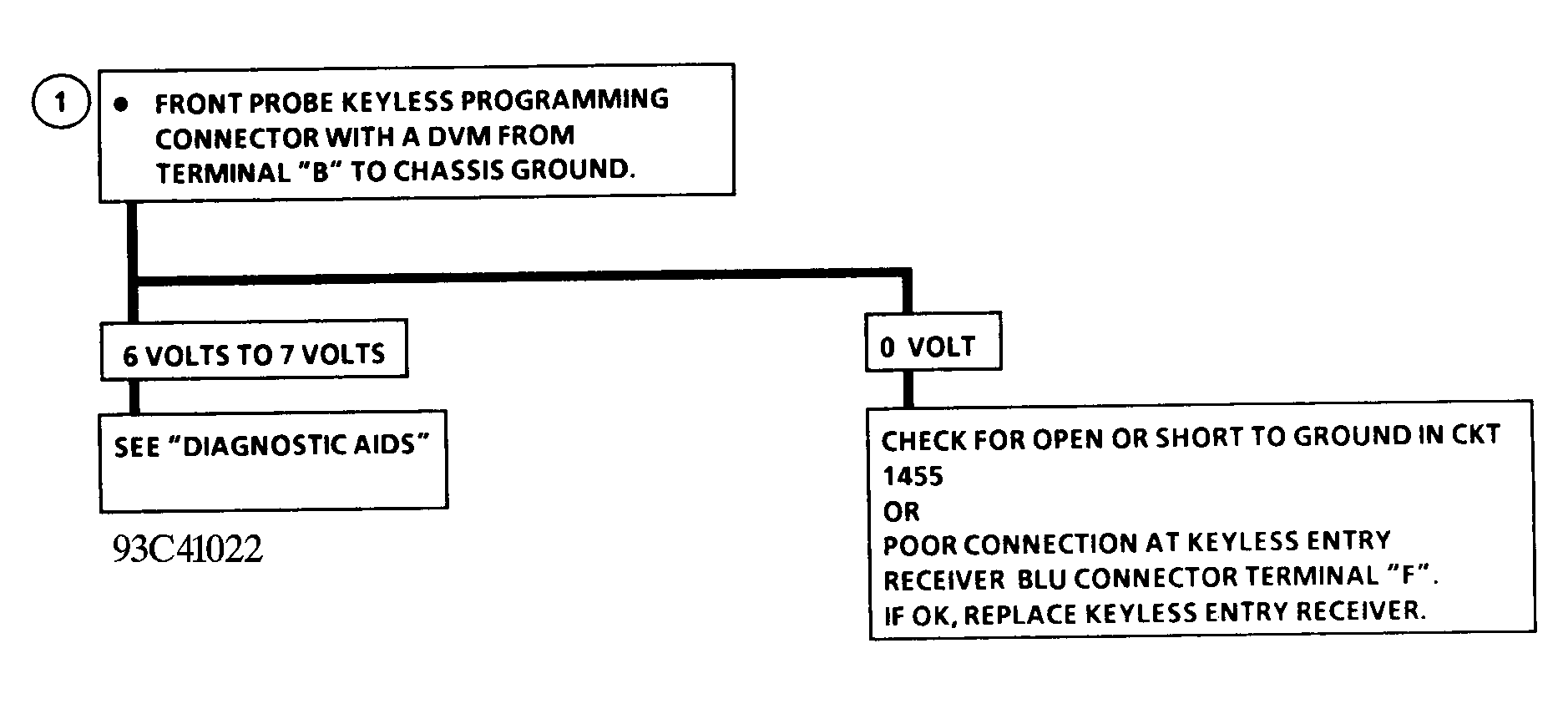

Fig 2: Test 8; Flow Chart
G93C41022Courtesy of GENERAL MOTORS CORP.
