Left Front Door Isolation Relay Test

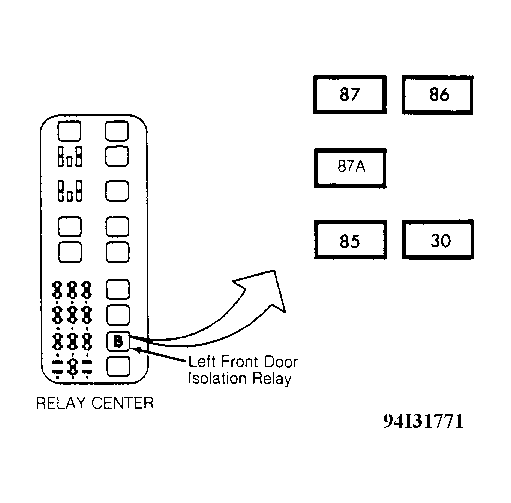

- Remove left front door isolation relay. See Fig 1 . Use a voltmeter and check for battery voltage between relay terminal No. 86 (Orange wire) and ground. If battery voltage is not present, check wiring for an open circuit.
- Use a fused jumper wire and momentarily connect relay terminals No. 87A (Tan wire) and No. 86 (Orange wire). All doors except left front door should unlock. If not, check Tan wire for an open circuit.
- Connect a test light between relay terminals No. 85 (Tan wire) and No. 86 (Orange wire). Test light should flash once when transmitter UNLOCK button is pressed, If not, check wiring for an open or short circuit to ground, and RAC module 9-pin connector terminal "G" (Tan wire) for good terminal contact.
- If wiring and connection are okay, replace RAC module. If all checks are okay, replace left front door isolation relay.
REMOTE KEYLESS ENTRY COMPONENT LOCATION
| Component | Location |
|---|---|
| Data Link Connector (DLC) | Under Left Side Of Dashboard, To Left Of Steering Column |
| Door Lock Relay | Under Right Side Of Dashboard |
| Instrument Panel Fuse Block | Under Left Side Of Dashboard |
| Park/Neutral Position Switch | On Top Of Transaxle |
| Remote Accessory Control (RAC) Module | Under Right Side Of Dashboard |
