Component Locations
Component Locations

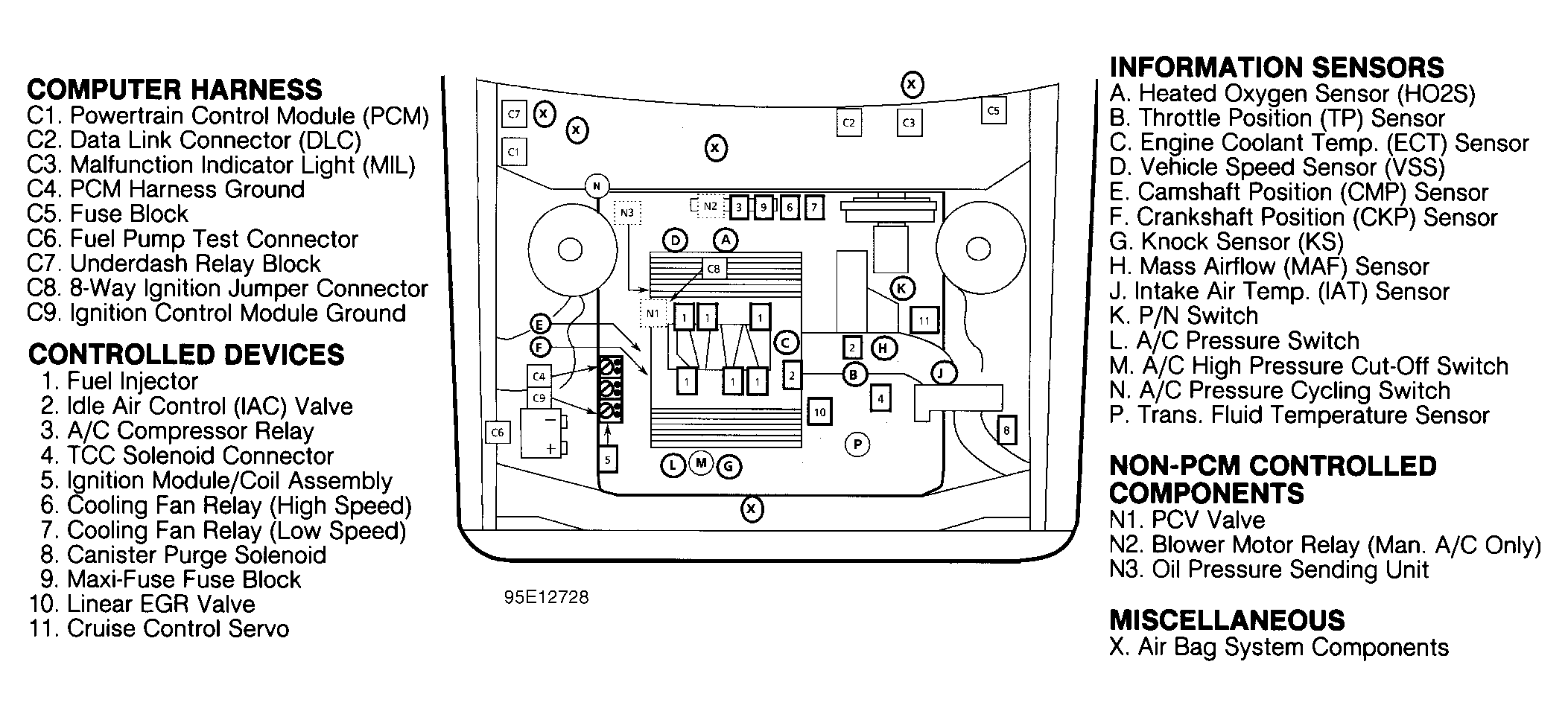

Fig 1: Component Locations (3.8L VIN L)
Courtesy of GENERAL MOTORS CORP.

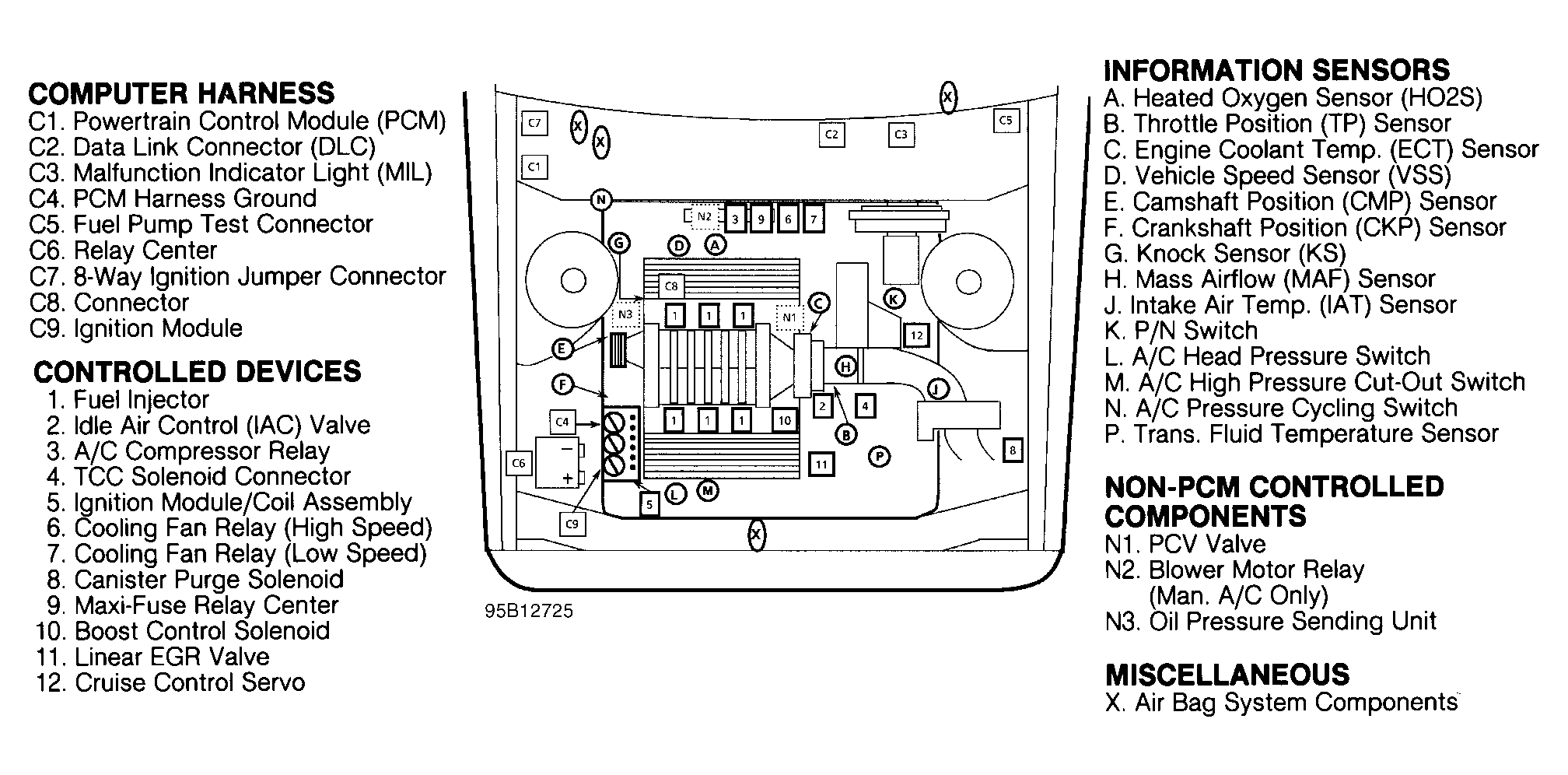

Fig 2: Component Locations (3.8L VIN 1)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
