Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.

Determines if conditions necessary to set Code P0713 exist.
This test determines if input circuit is shorted to ground which will cause conditions necessary for Code P0713.

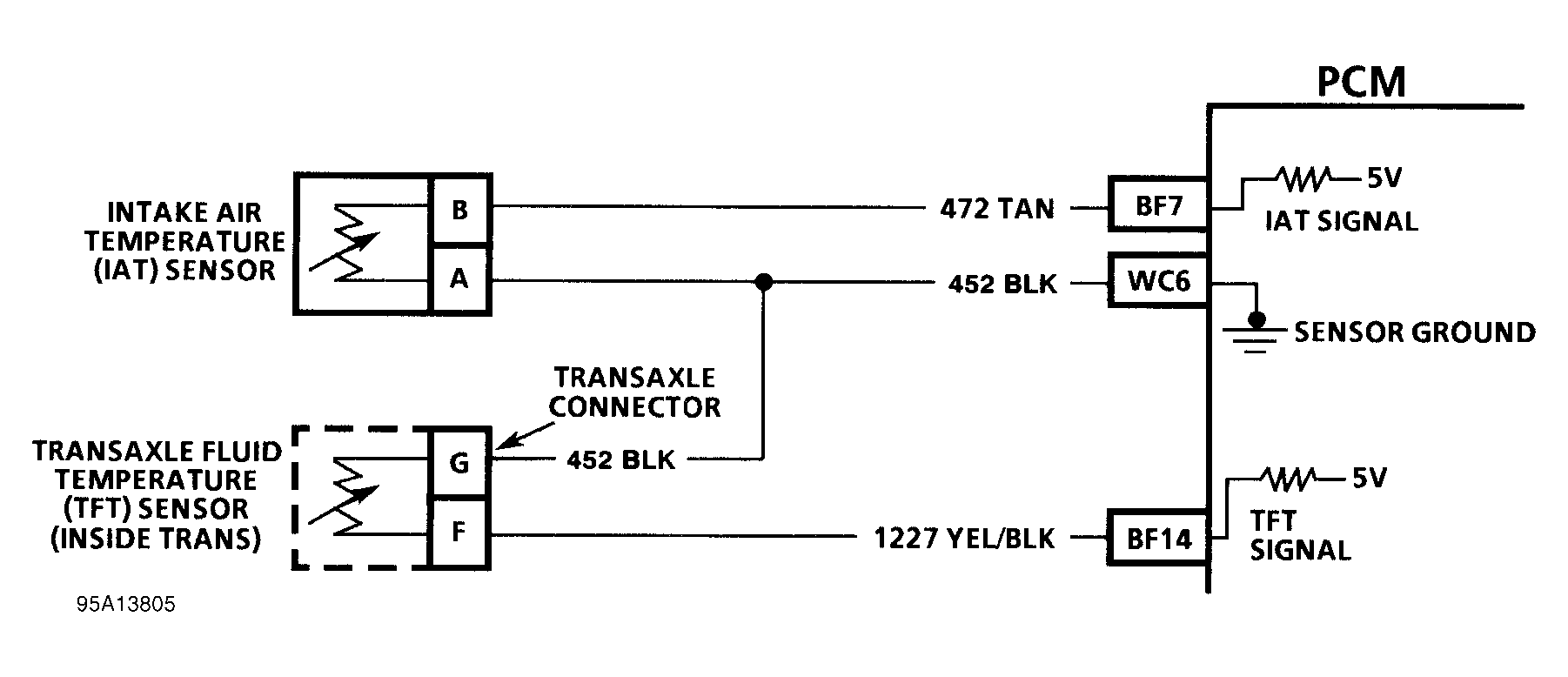

Fig 1: Code P0713 Schematic (3.8L) Transaxle Temperature Sensor High Temperature Indicated

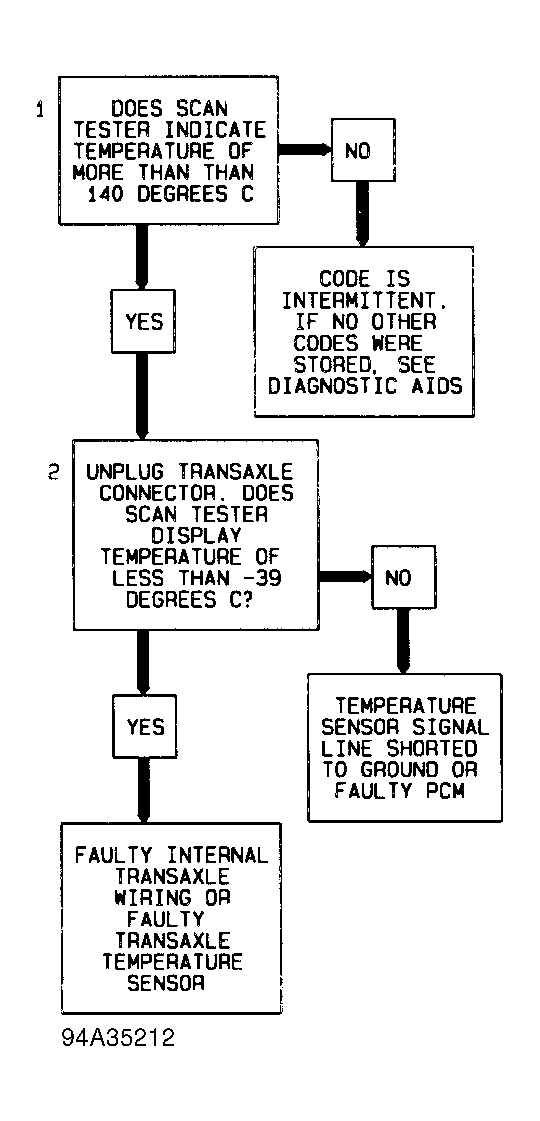

Fig 2: Code P0713 Diagnostic Flow Chart (3.8L) Transaxle Temperature Sensor High Temperature Indicated
