Home >> Buick >> 1995 >> Roadmaster Base >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Service Point Locations

Service Point Locations

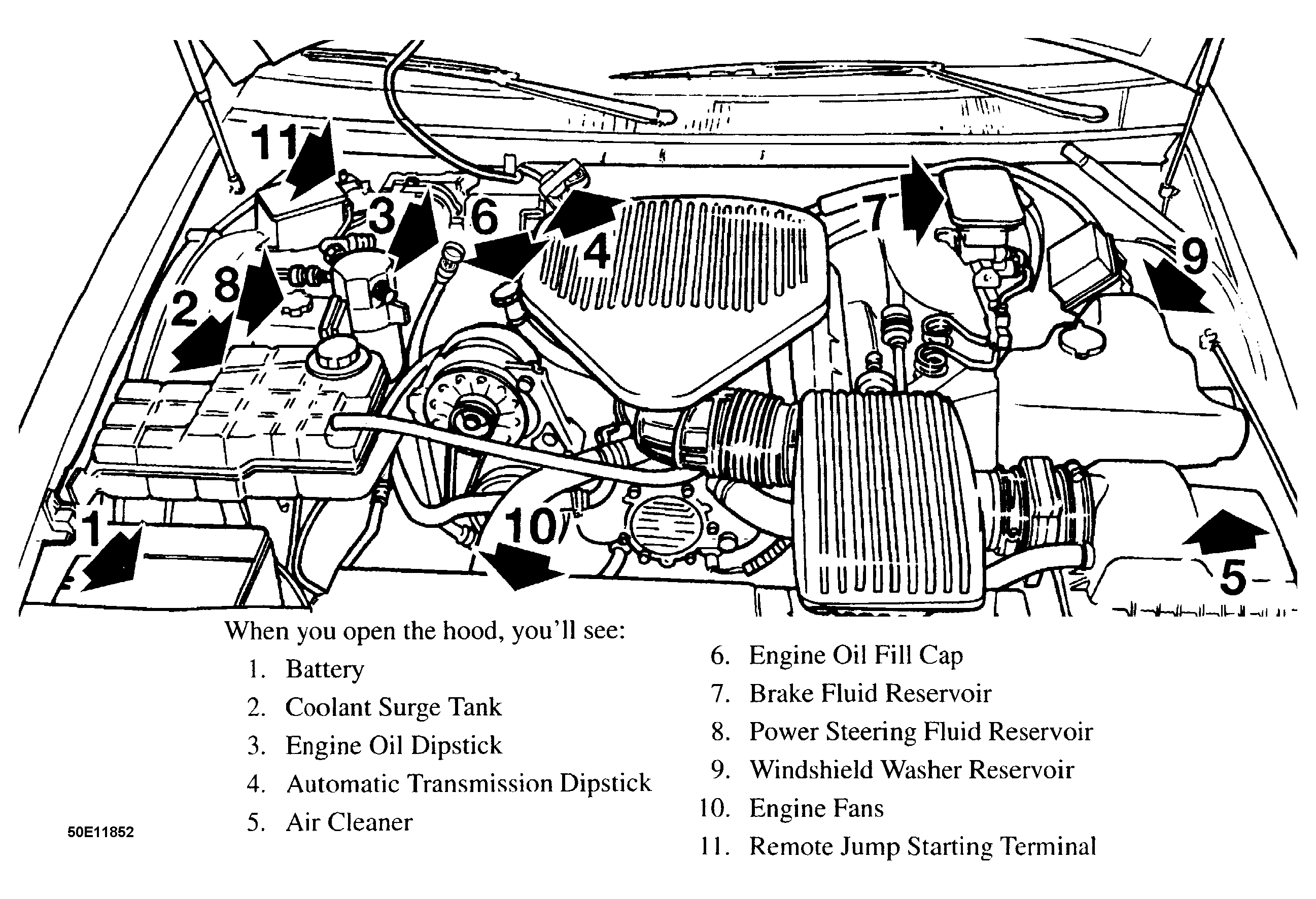

Fig 1: Engine Service Point Locations (Typical)
G50E11852Courtesy of GENERAL MOTORS CORP.

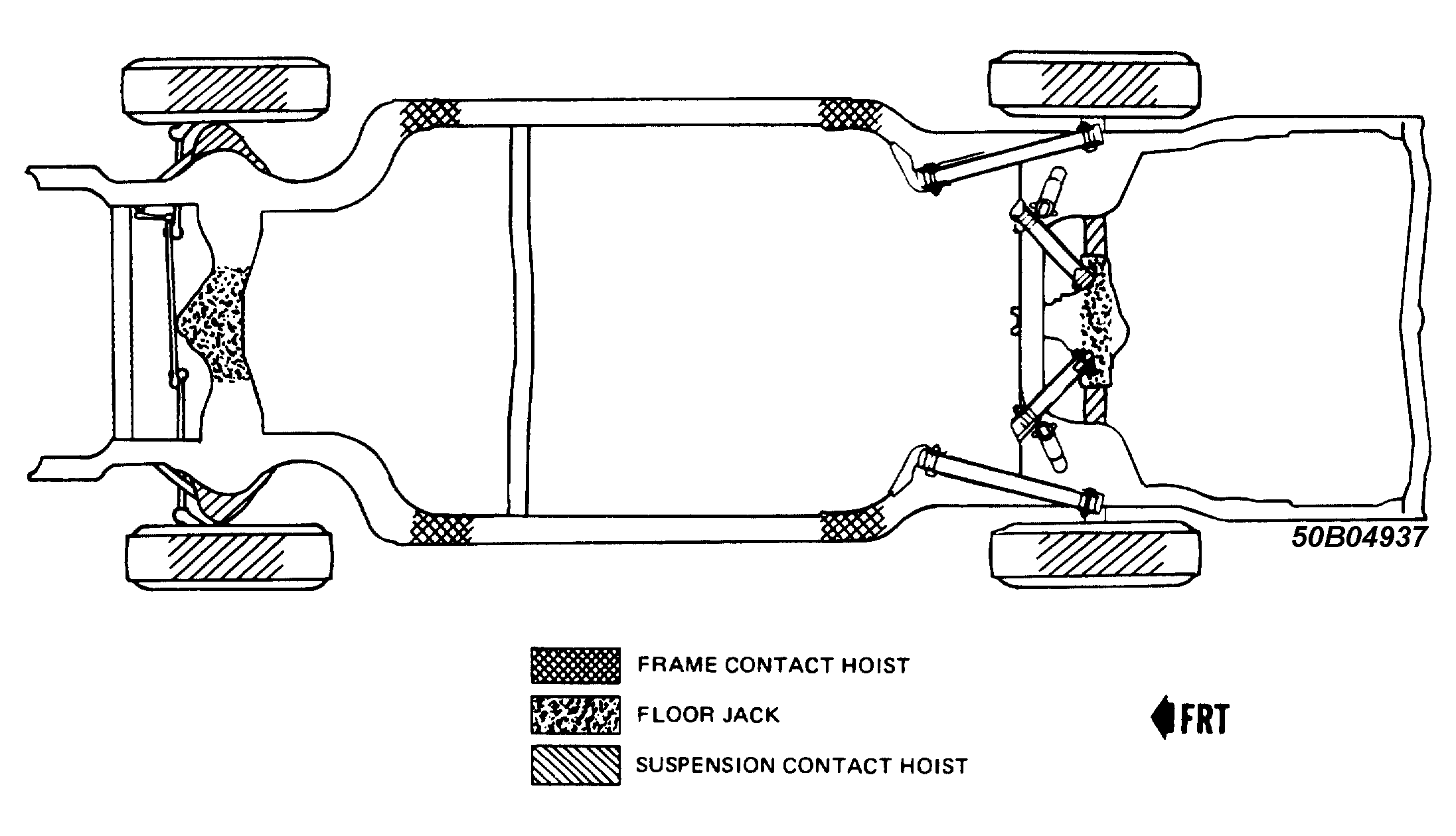

Fig 2: Frame Lifting Point Locations
G50B04937Courtesy of GENERAL MOTORS CORP.
NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article in the WHEEL ALIGNMENT section.
