Instrument Panel: Testing: Notes

NOTE: See appropriate wiring diagram to identify connector terminal wire colors. See Fig 1 and Fig 2 .

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.

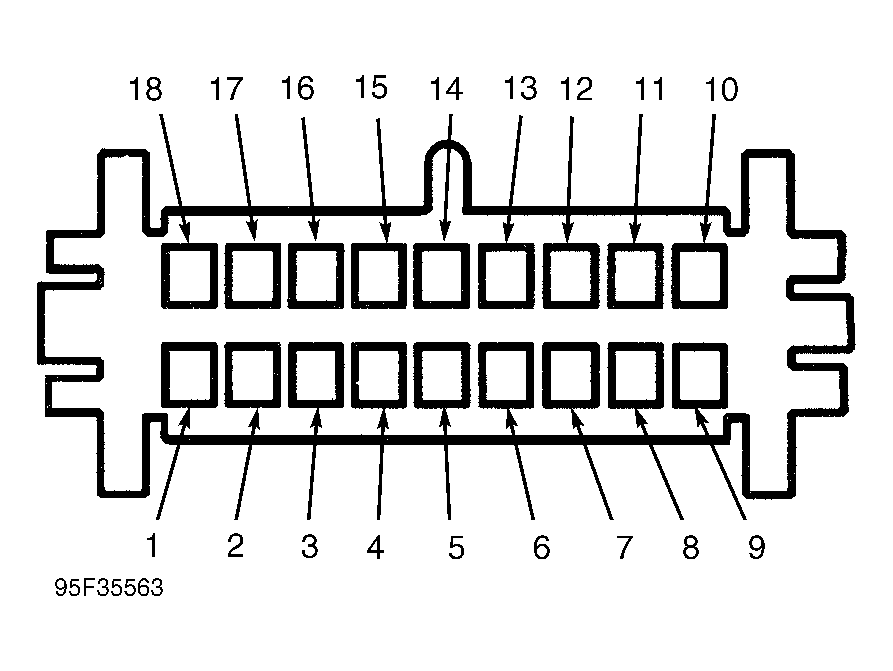

Fig 1: IPC Connector Terminal ID (Century)

Courtesy of GENERAL MOTORS CORP.

Fig 2: IPC Connector Terminal ID (Ciera)

Courtesy of GENERAL MOTORS CORP.
