Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Adaptive Lamp Monitor Module | Behind left side of dash, right of steering column support. |
| Blower Control Module | On right side of firewall, near blower motor. |
| Computer Command Ride Controller (CCR) | Below left front seat. |
| Cruise Control Module | Left side of firewall. |
| Defogger/Antenna Module (Rear) | Right front of luggage compartment. |
| Electronic Brake (and Traction) Control Module (EBCM/EBTCM) | Left front of engine compartment. |
| Electronic Compass Module | Below rear deck shelf. |
| Fuel Level Module | Behind right side of dash, on multi-use bracket. |
| Head Up Display (HUD) Module (UV6) | Center front of headliner. |
| HVAC Programmer | Behind right side of dash. |
| Inflator Module (Driver's Side) | In steering wheel pad. |
| Inflator Module (Passenger's Side) | Right side of dash, above glove compartment. |

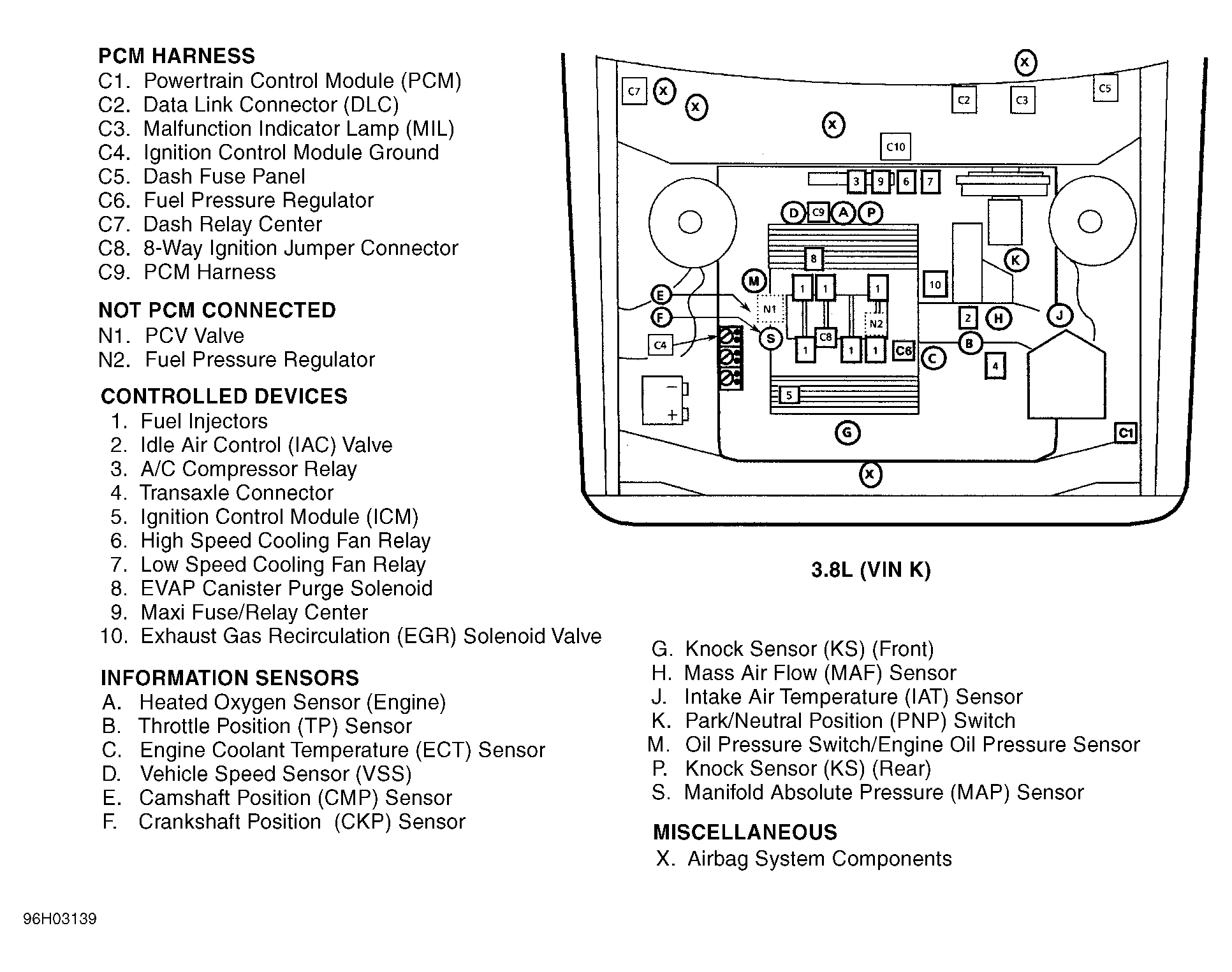

| Ignition Control Module (ICM) (3.8L VIN K) | On top right front of engine. See Figure . |

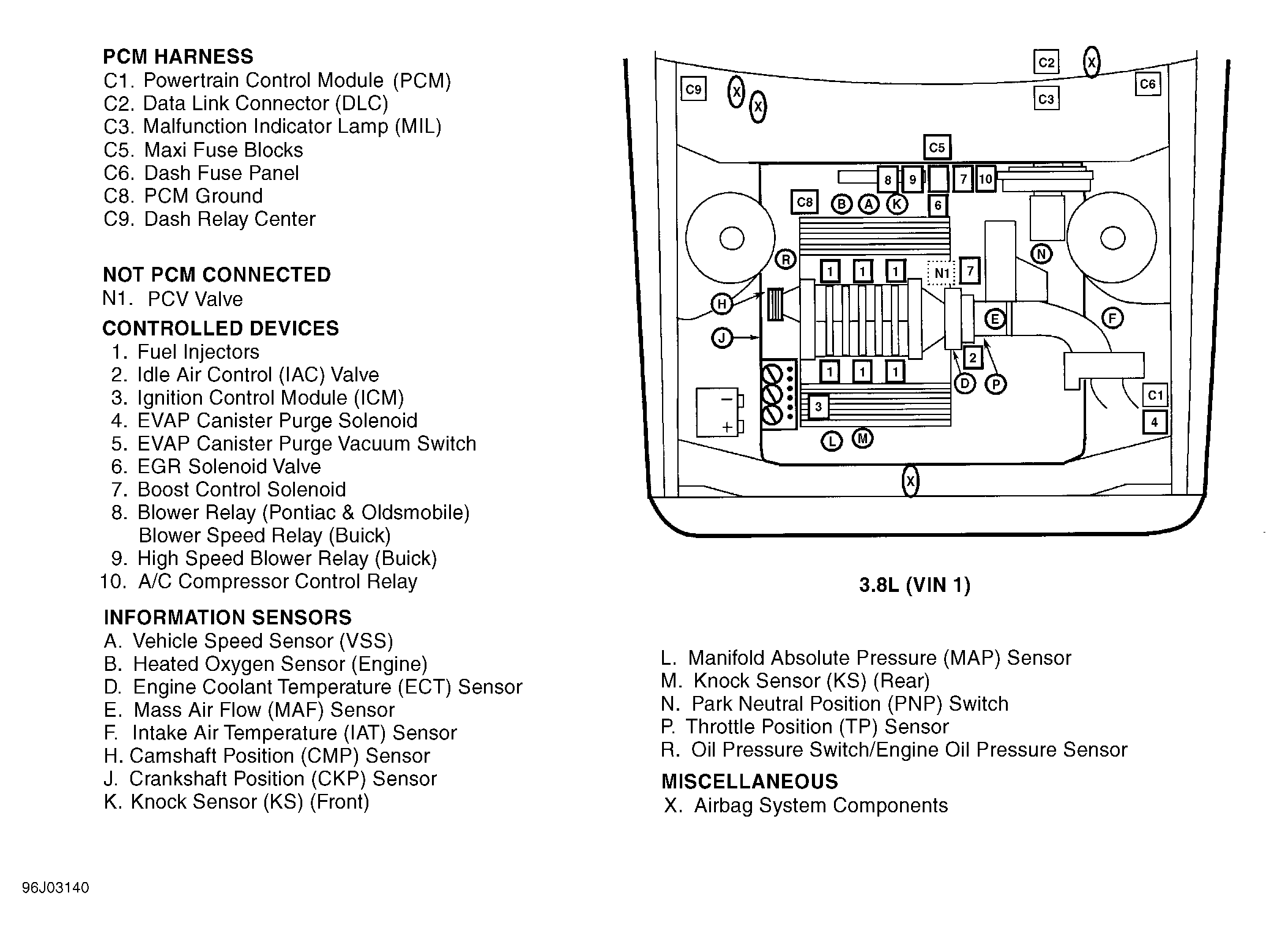

| Ignition Control Module (ICM) (3.8L VIN 1) | On top right front of engine. See Figure . |
| Lamp Control Module | Behind center of dash. |
| Memory Seat/Memory Mirror Control Module | Under driver's seat. |
| Multifunction Alarm, Lock and Lighting (MALL) Module | Behind right side of dash, on multi-use bracket. |
| Multifunction Alarm Module | Behind right side of dash, on multi-use bracket. |
| Panel Dimming Module (Oldsmobile) | Behind center of dash. |
| PASS-Key Decoder Module | Behind right side of dash. |
| Powertrain Control Module (PCM) (3.8L VIN K) | Left front corner of engine compartment. See Figure . |
| Powertrain Control Module (PCM) (3.8L VIN 1) | Left front corner of engine compartment. See Figure . |
| Radio Amplifier Module | Below center of dash. |
| Remote Function Actuator Module (RFA-B) | Behind right side of dash. |
| Seat Control Module | Under left front seat. |
| Sensing and Diagnostic Module (SDM) | Under right front seat. |
| Sun Roof Control Module | On center rear of sun roof, next to sun roof motor. |
| Window Module (Express Down) | In center rear of left front door. |
| Wiper/Washer Motor Module | On left rear of engine compartment, behind strut tower. |
