Engine Controls - System/Component Tests 3.8L
>>
Component Locations
Component Locations

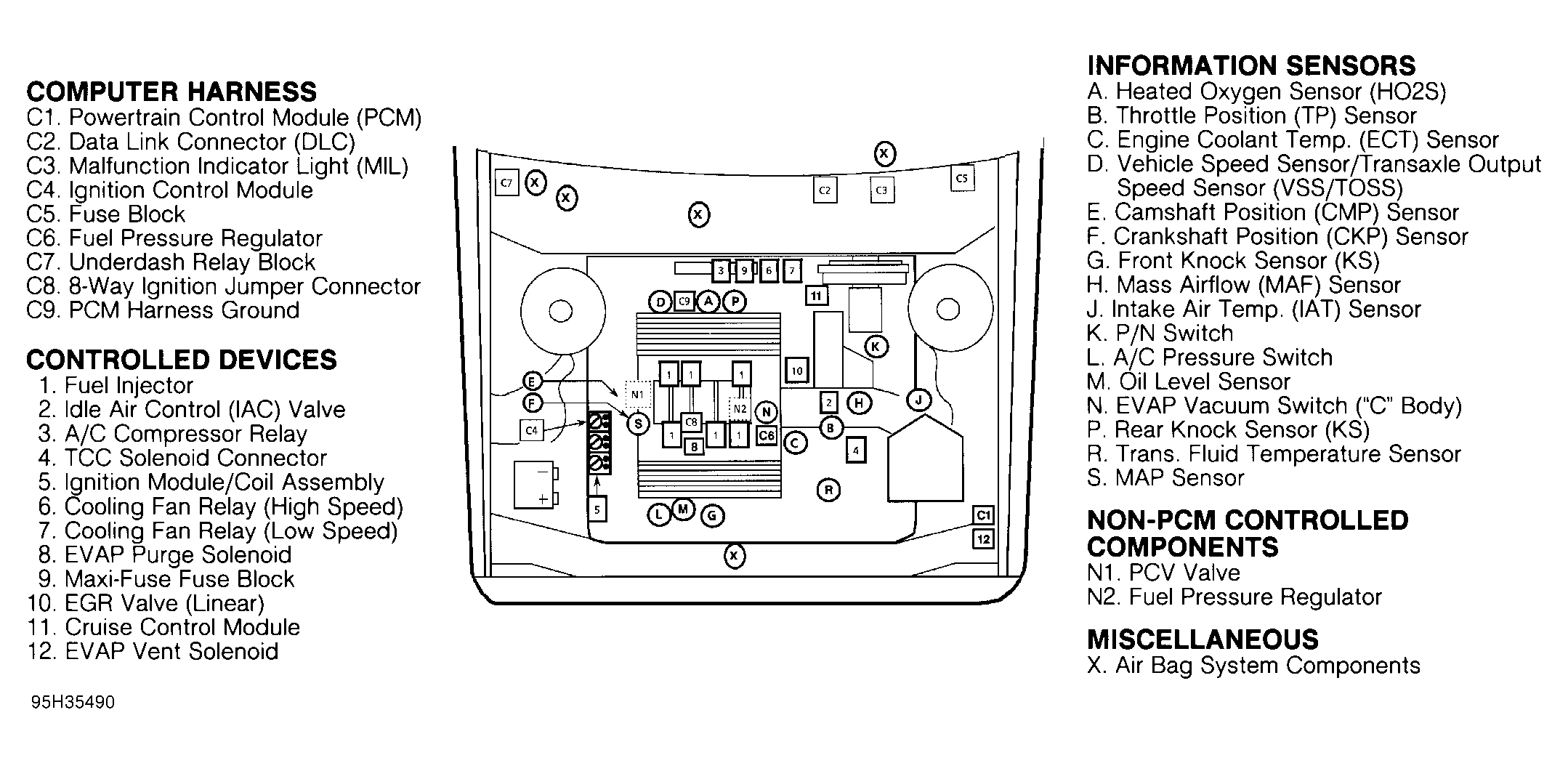

Fig 1: Component Locations (VIN K)
Courtesy of GENERAL MOTORS CORP.

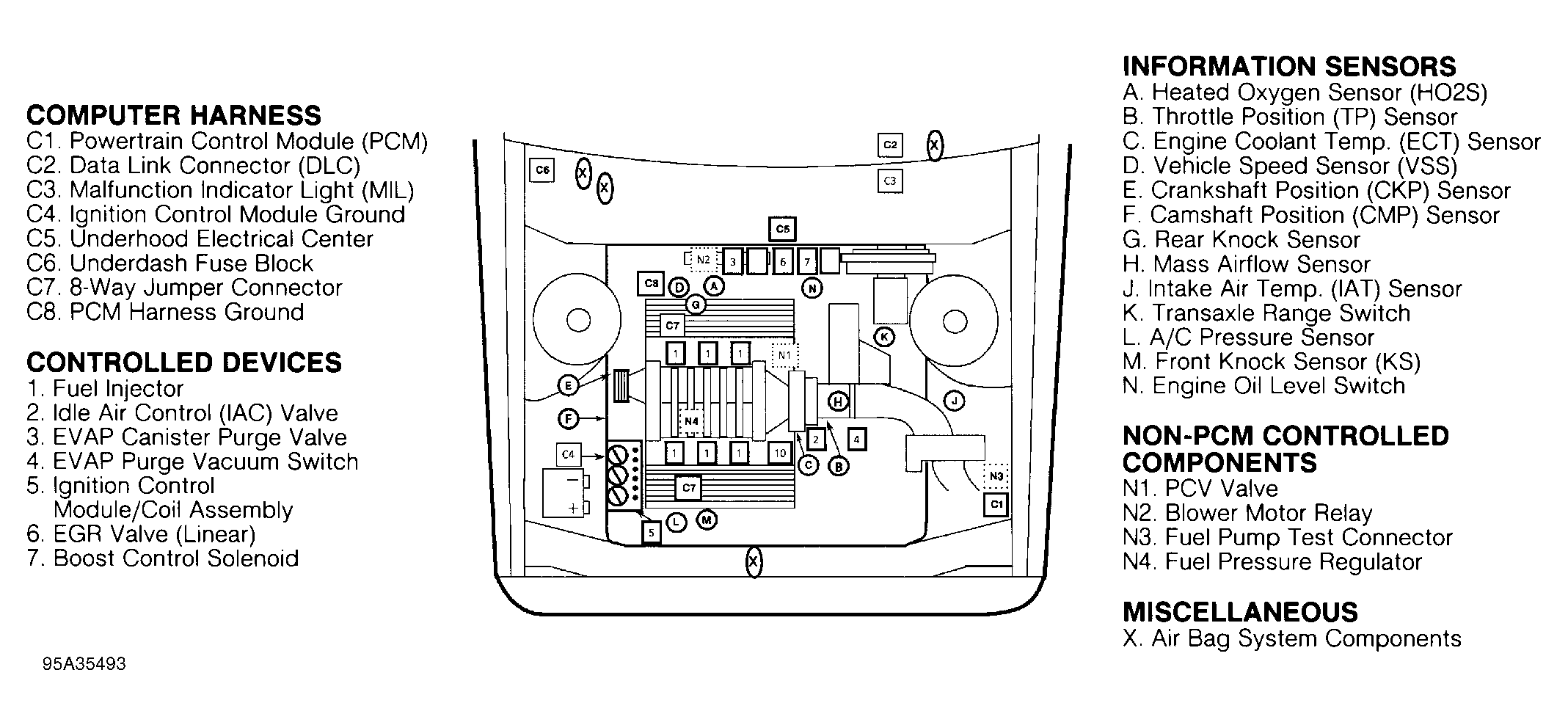

Fig 2: Component Locations (VIN 1)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
