Instrument Panel: Testing: Notes

WARNING: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.

NOTE: Use illustrations for instrument panel cluster connector and terminal identification. See Fig 1 and Fig 2 . Refer to Fig 3 through Fig 4 to identify instrument panel clusters.

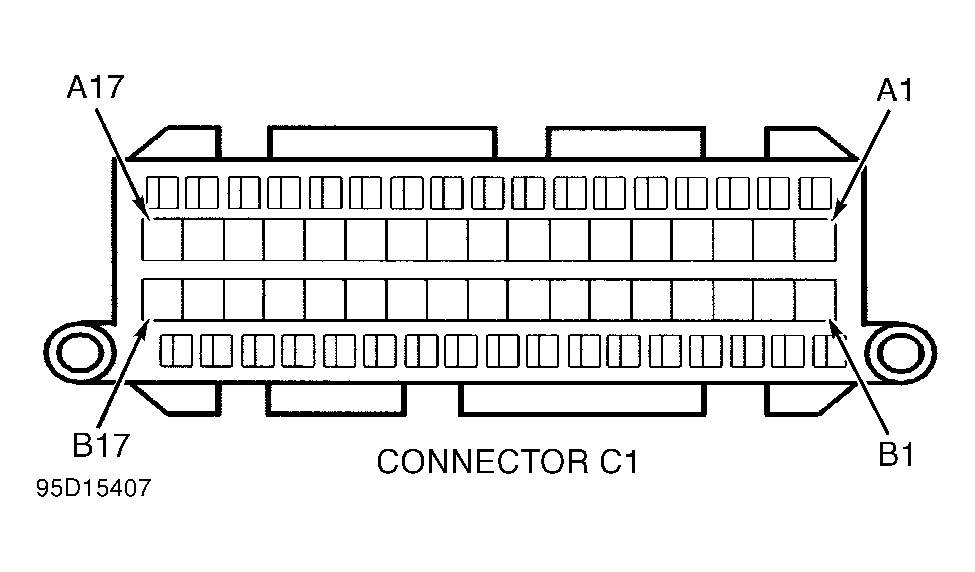

Fig 1: Identifying Instrument Panel Cluster Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.

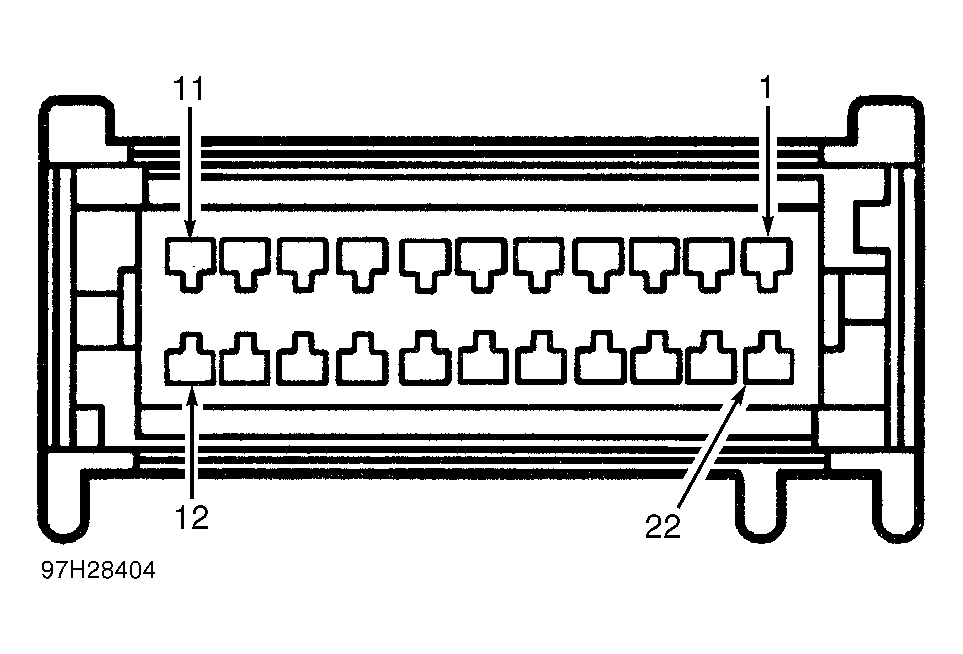

Fig 2: Identifying Information Center Cluster Connector Terminals

Courtesy of GENERAL MOTORS CORP.

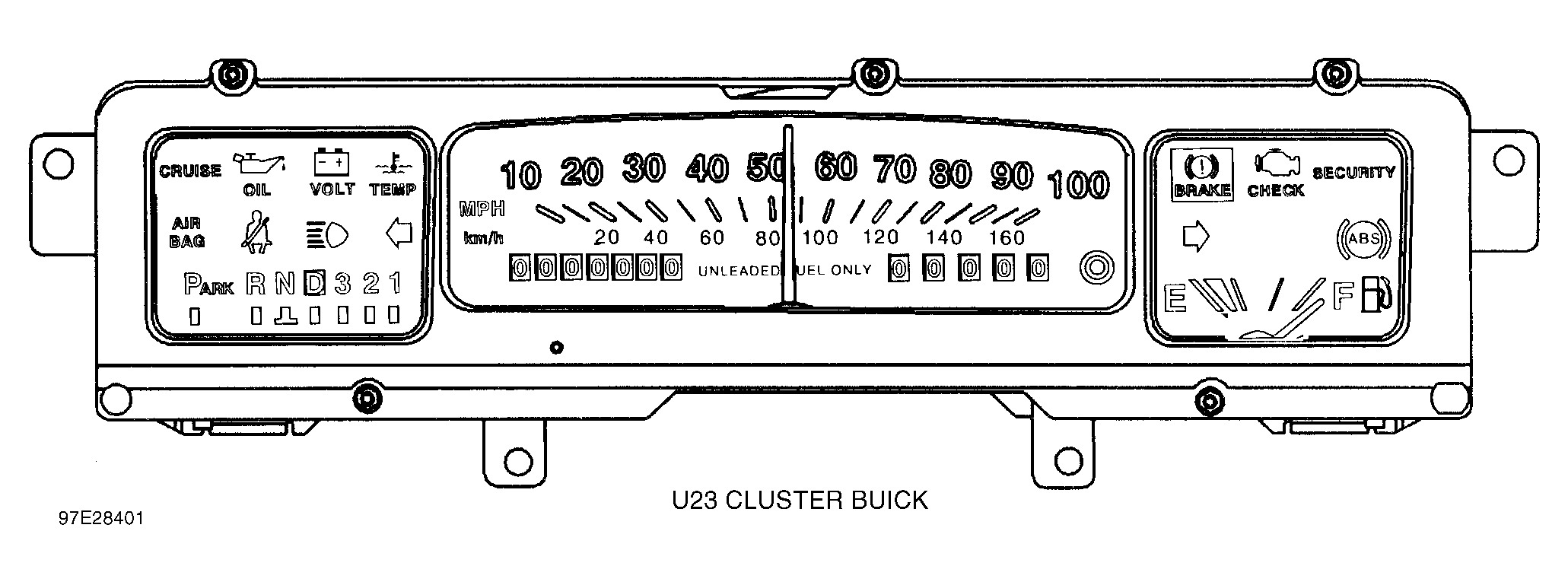

Fig 3: Identifying Instrument Cluster U23

Courtesy of GENERAL MOTORS CORP.

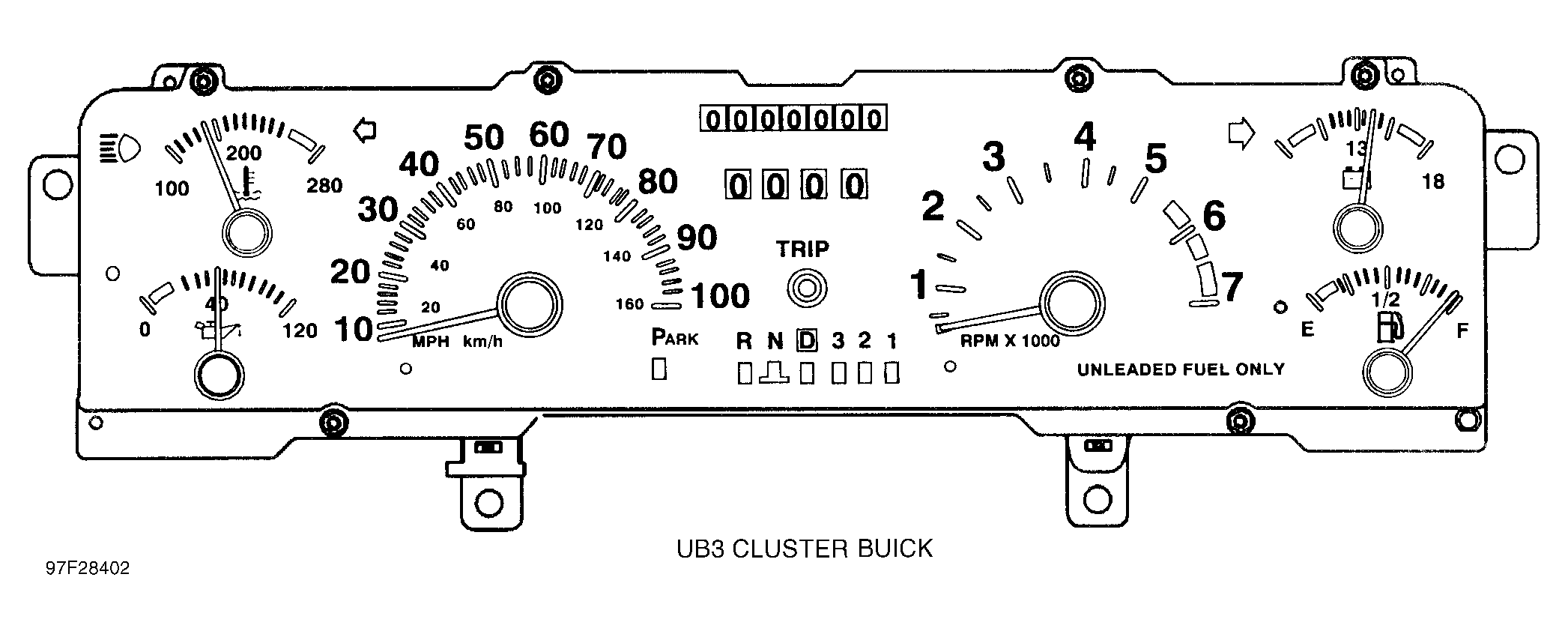

Fig 4: Identifying Instrument Cluster UB3

Courtesy of GENERAL MOTORS CORP.
