Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

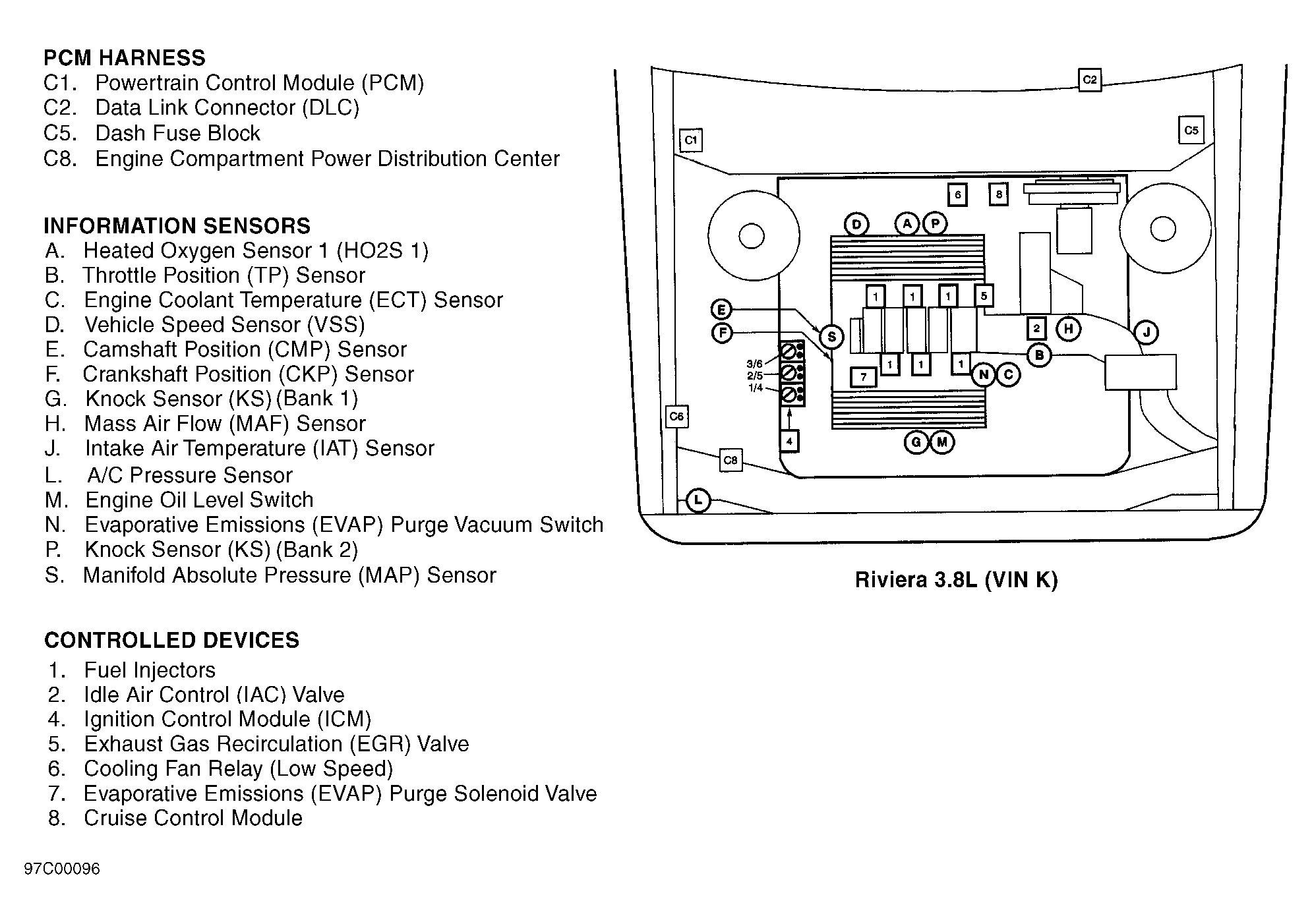

Fig 1: Engine Compartment (3.8L VIN K)
G97C00096

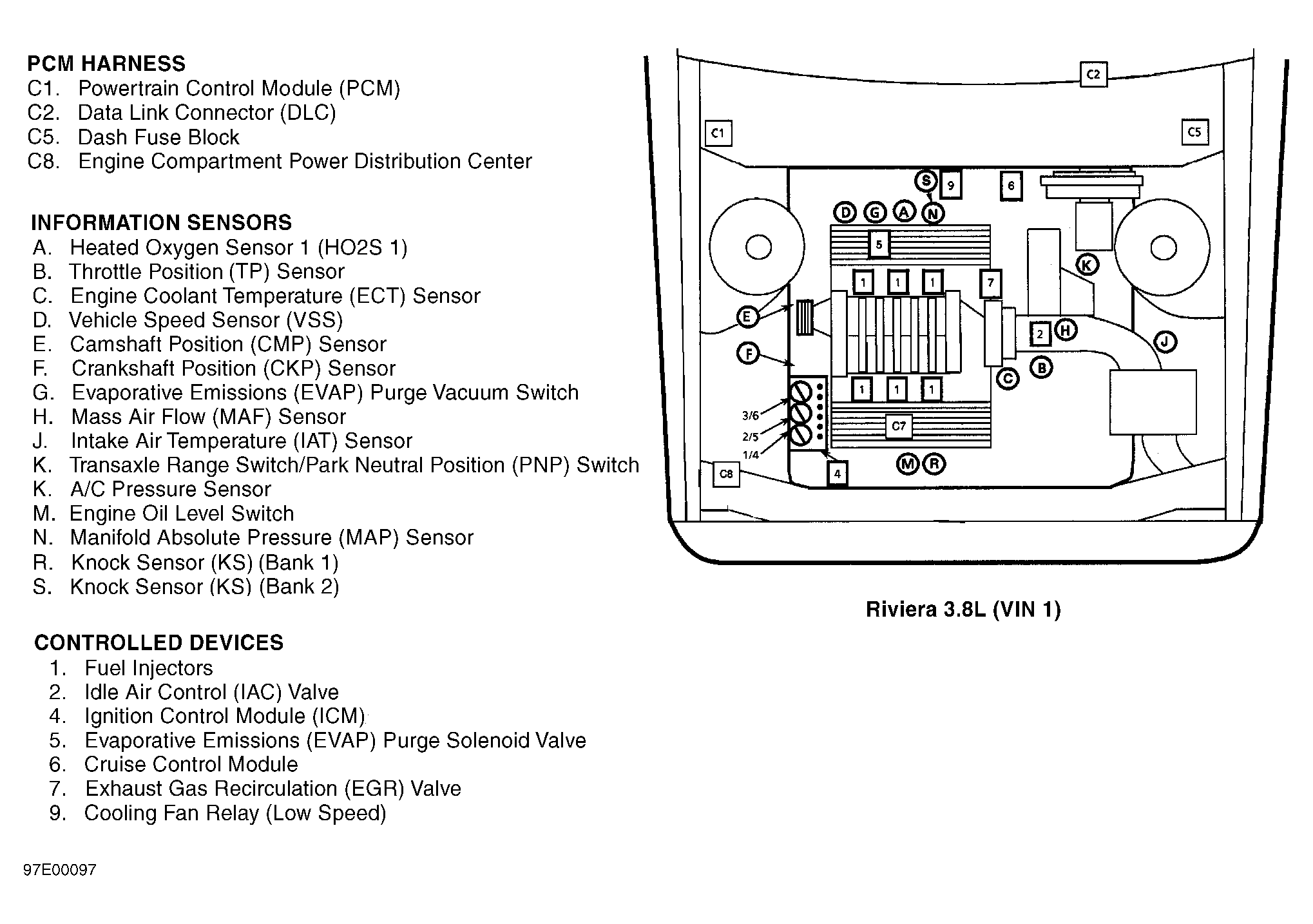

Fig 2: Engine Compartment (3.8L VIN 1)
G97E00097

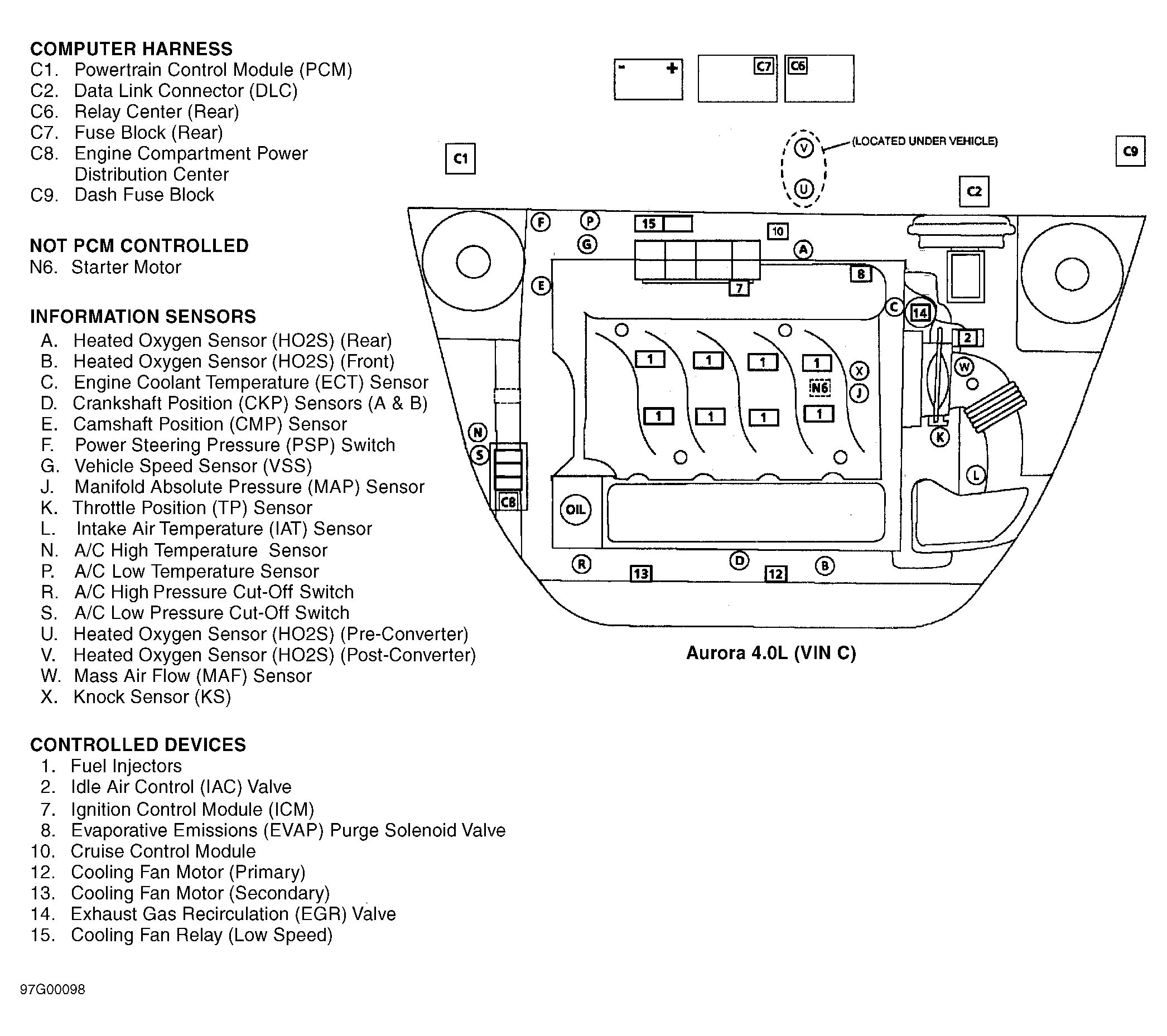

Fig 3: Engine Compartment (4.0L VIN C)
G97G00098
