Connector Identification

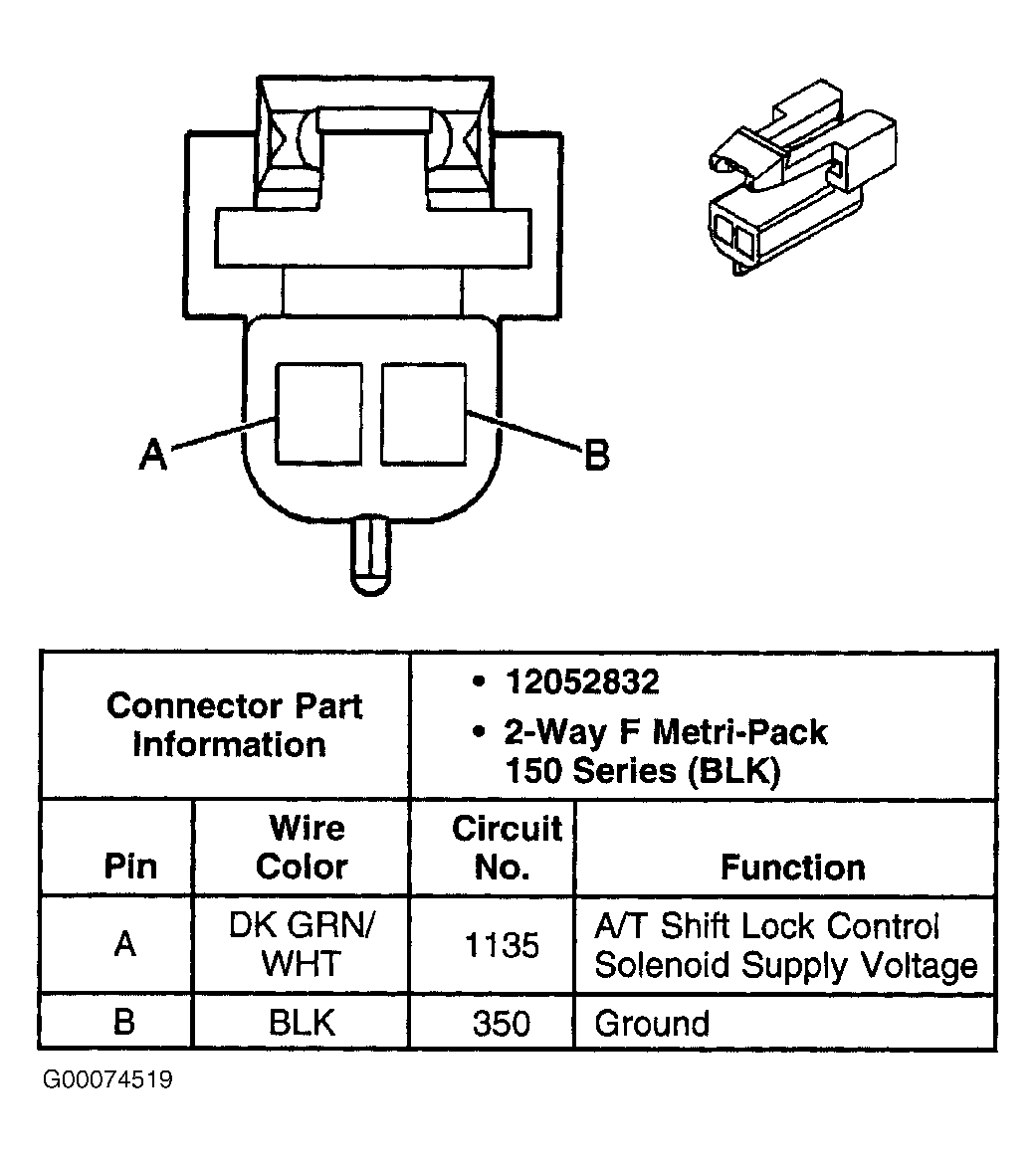

Fig 1: Identifying A/T Shift Lock Control Solenoid Connector Terminals (Column Shift)
G00074519Courtesy of GENERAL MOTORS CORP.

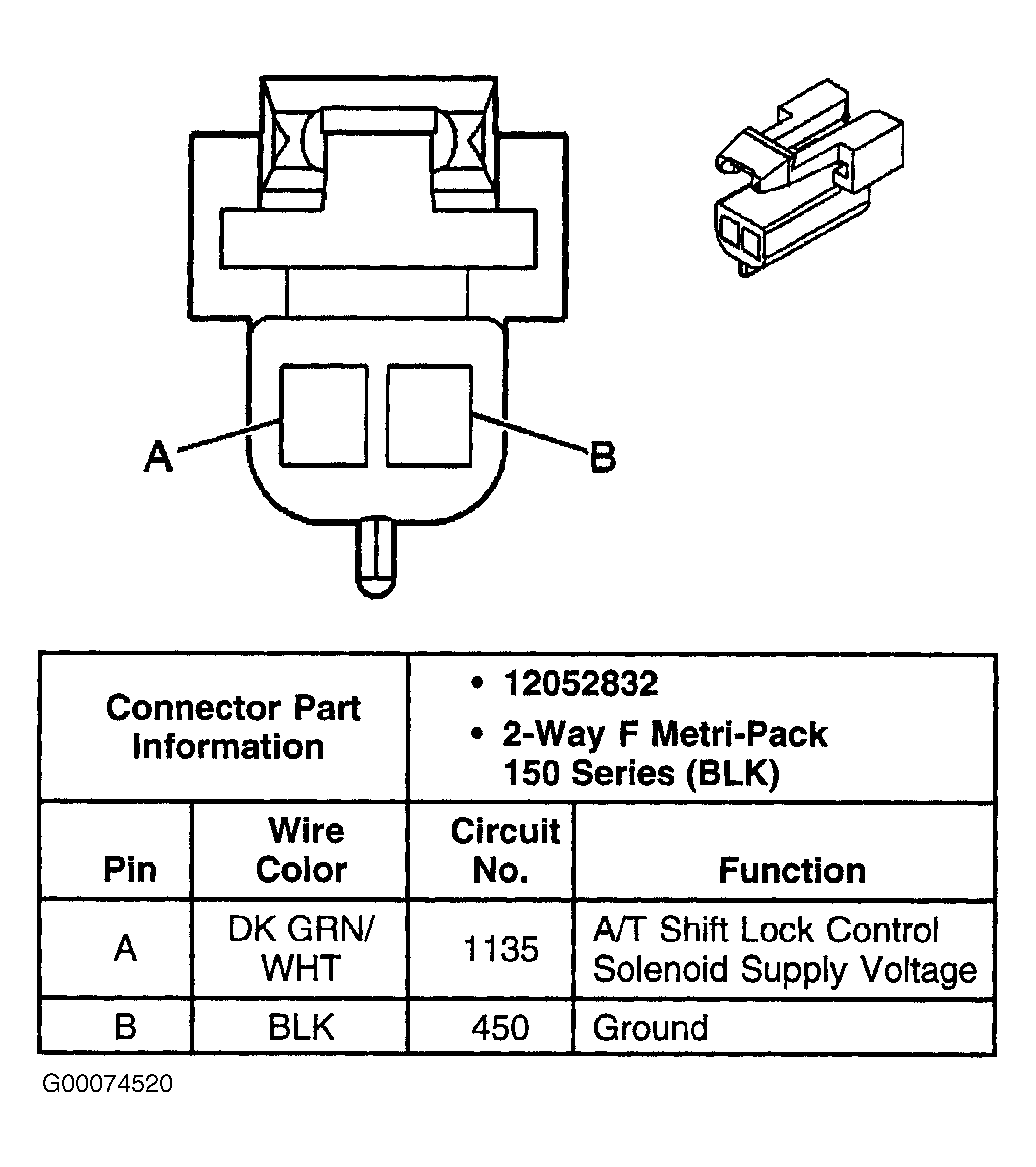

Fig 2: Identifying A/T Shift Lock Control Solenoid Connector Terminals (Floor Shift)
G00074520Courtesy of GENERAL MOTORS CORP.

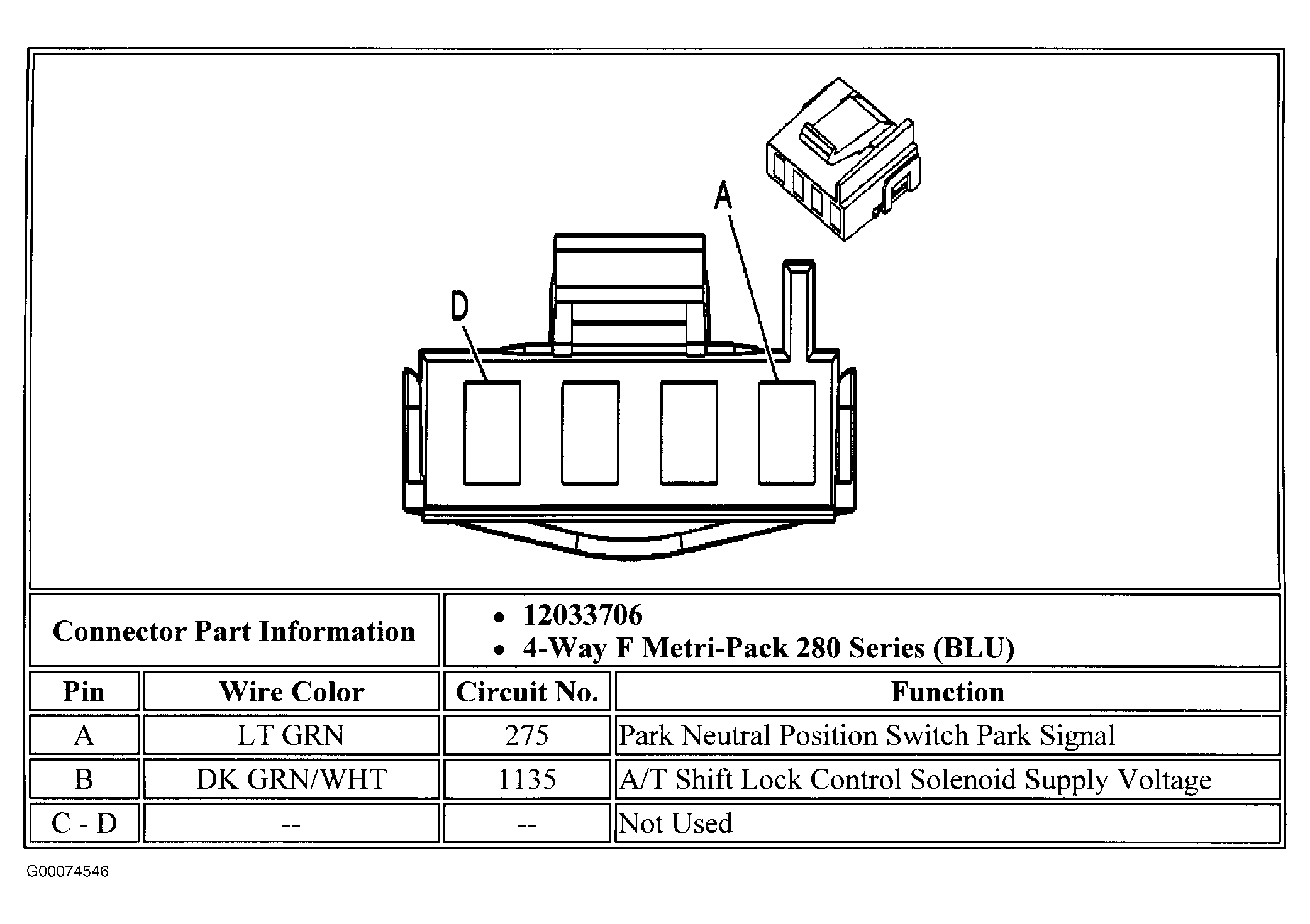

Fig 3: Identifying A/T Shift Lock Control Solenoid Connector Terminals
G00074546Courtesy of GENERAL MOTORS CORP.
