Installation Procedure

  1. Install the remote control door lock receiver (1). Make sure the retainers are fully seated.

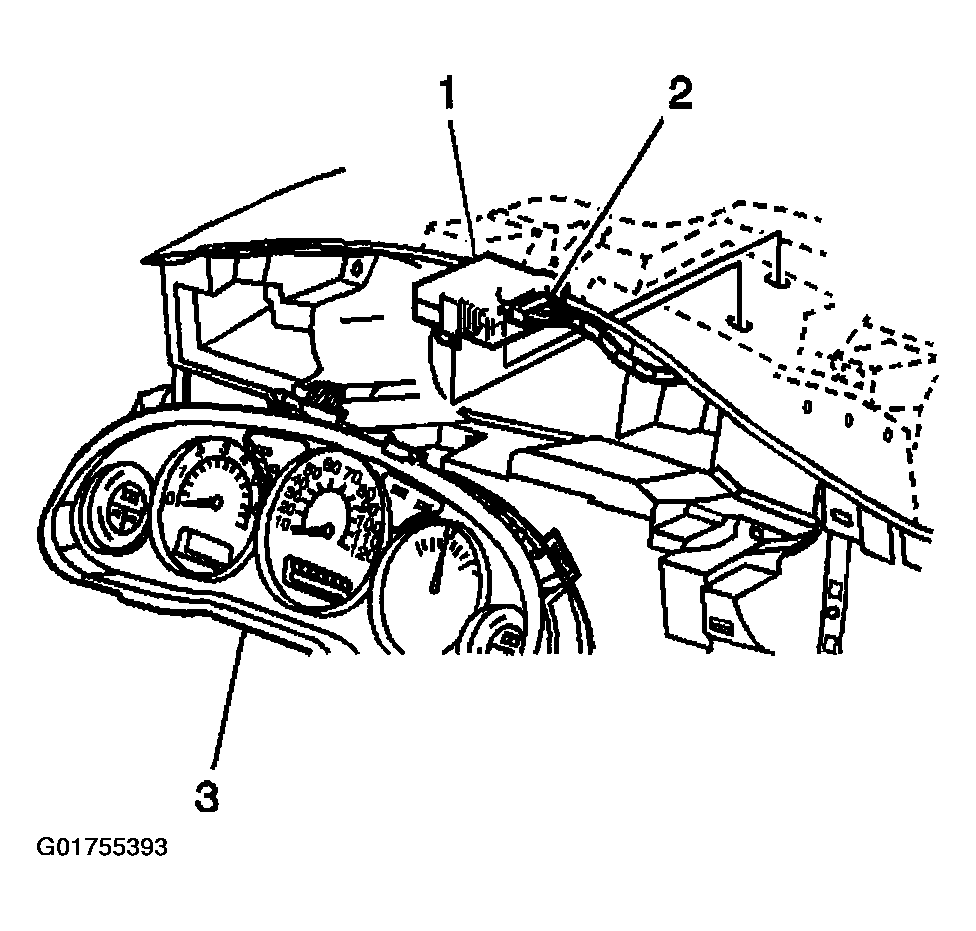

    2. Fig 1: Identifying Remote Control Door Lock Receiver
    G01755393Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector (2).
  3. Install the IP cluster (3). Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  4. Program the transmitter to the new receiver. Refer to Transmitter Programming .
