Home >> Buick >> 2002 >> Century Custom >> Repair and Diagnosis >> Body & Frame >> Windows >> Stationary Window System >> Component Locator >> Stationary Windows Component Views

Stationary Windows Component Views

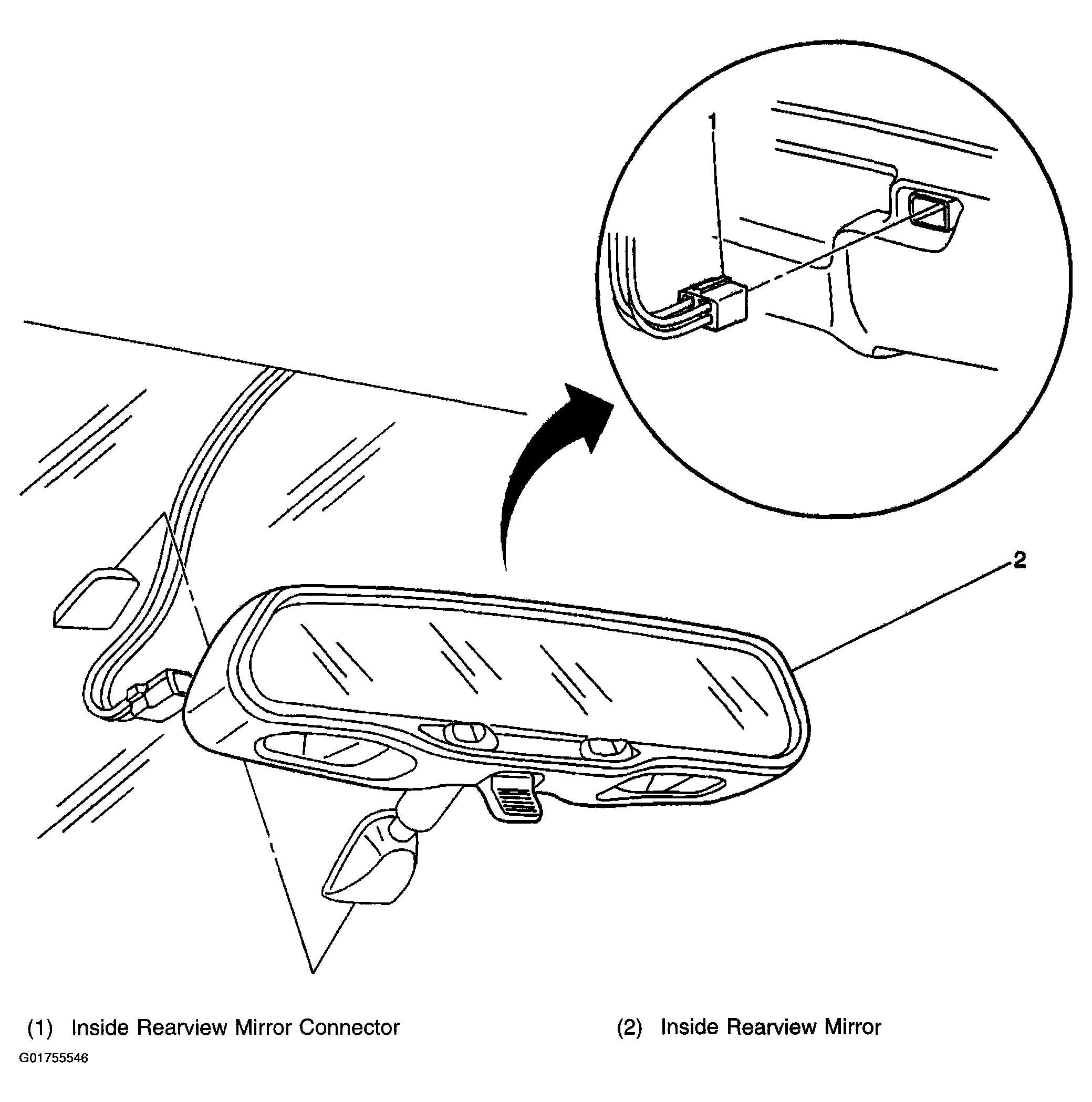

Fig 1: Identifying Forward Center of Interior Compartment Component Views
G01755546Courtesy of GENERAL MOTORS CORP.

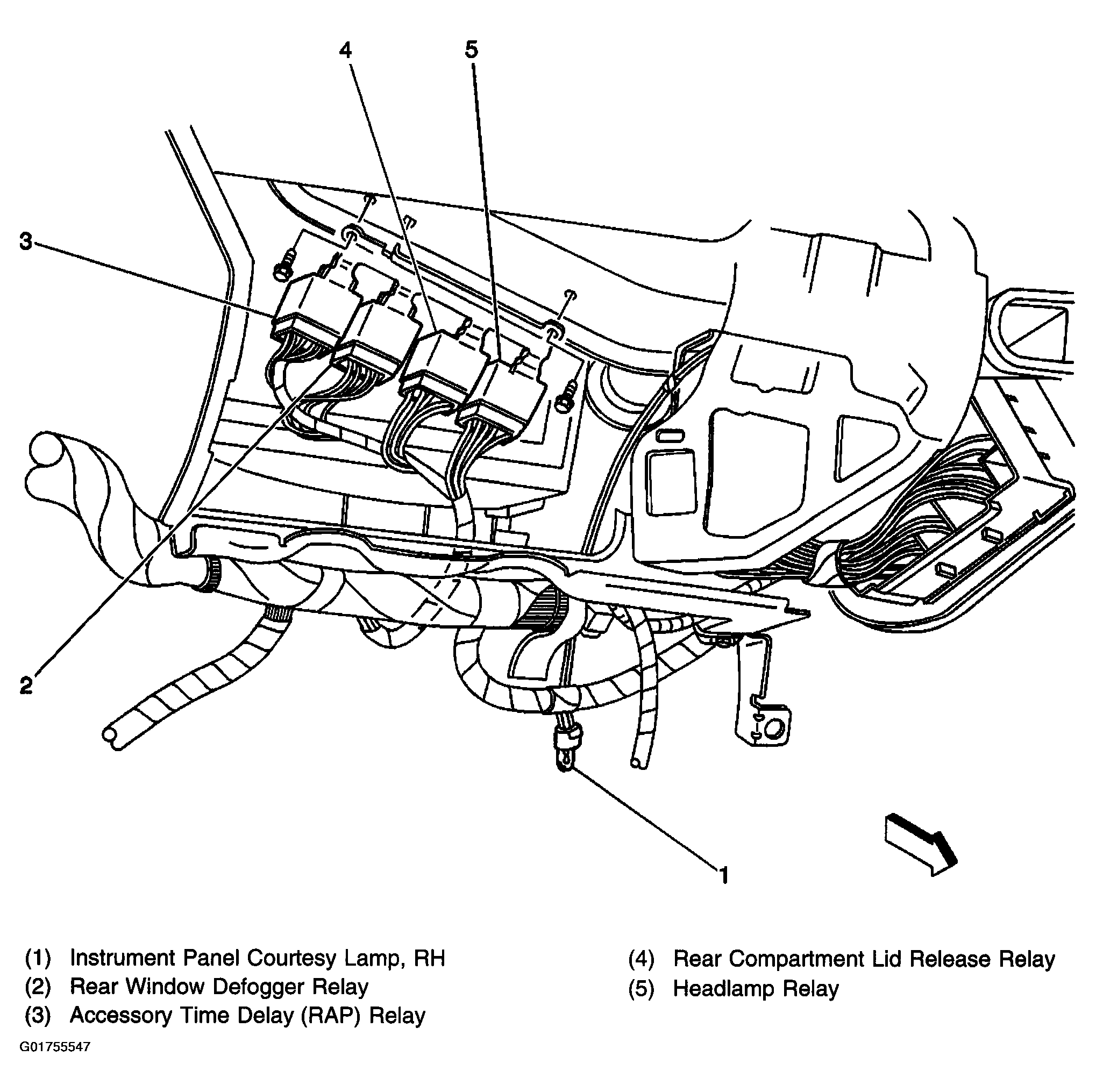

Fig 2: Identifying Behind Right Side of Instrument Panel Component Views
G01755547Courtesy of GENERAL MOTORS CORP.

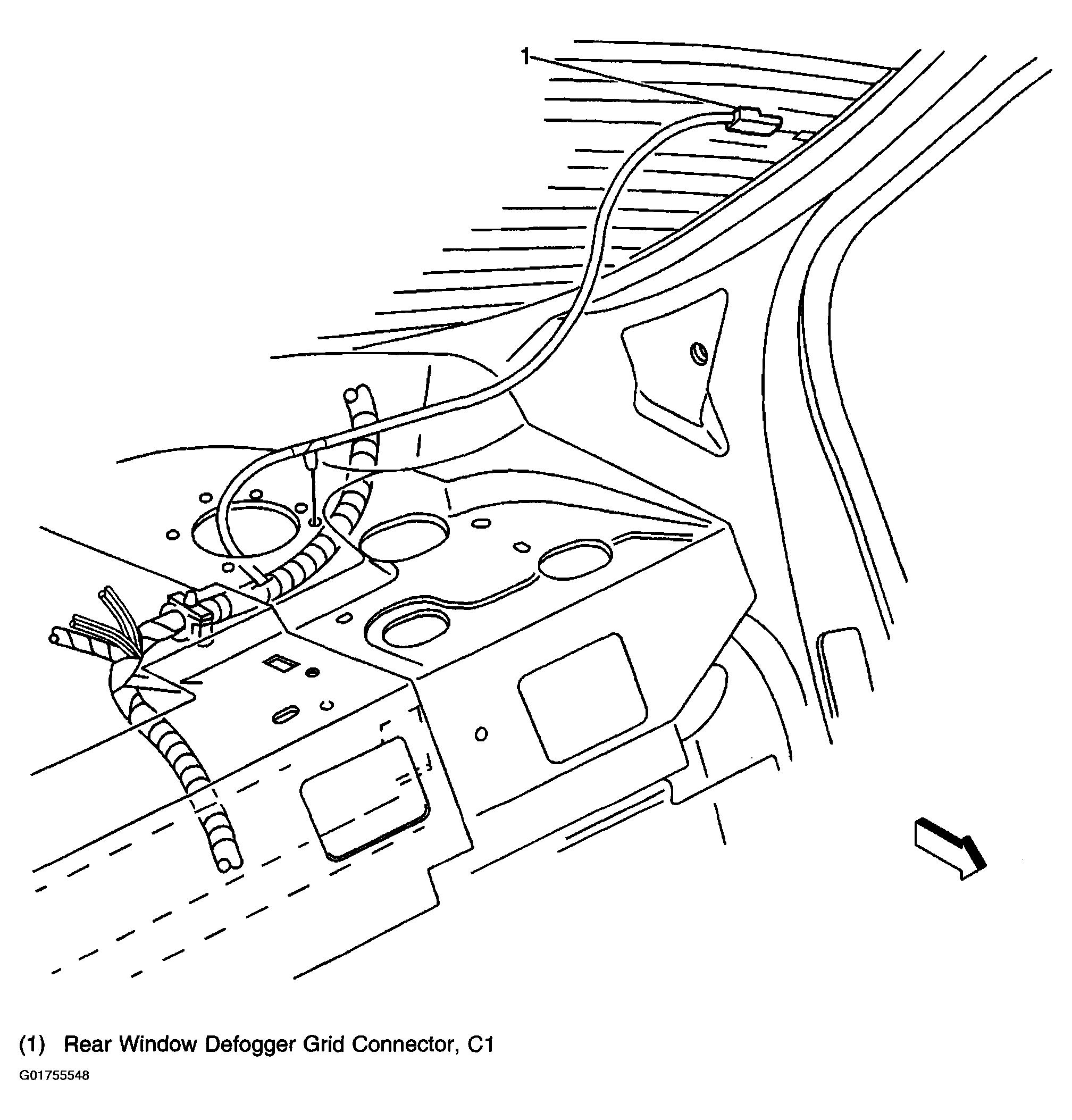

Fig 3: Identifying Left Side of Rear Window Component Views
G01755548Courtesy of GENERAL MOTORS CORP.
