Installation Procedure

  1. Install the rear window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Connect the rear window defogger electrical connectors.

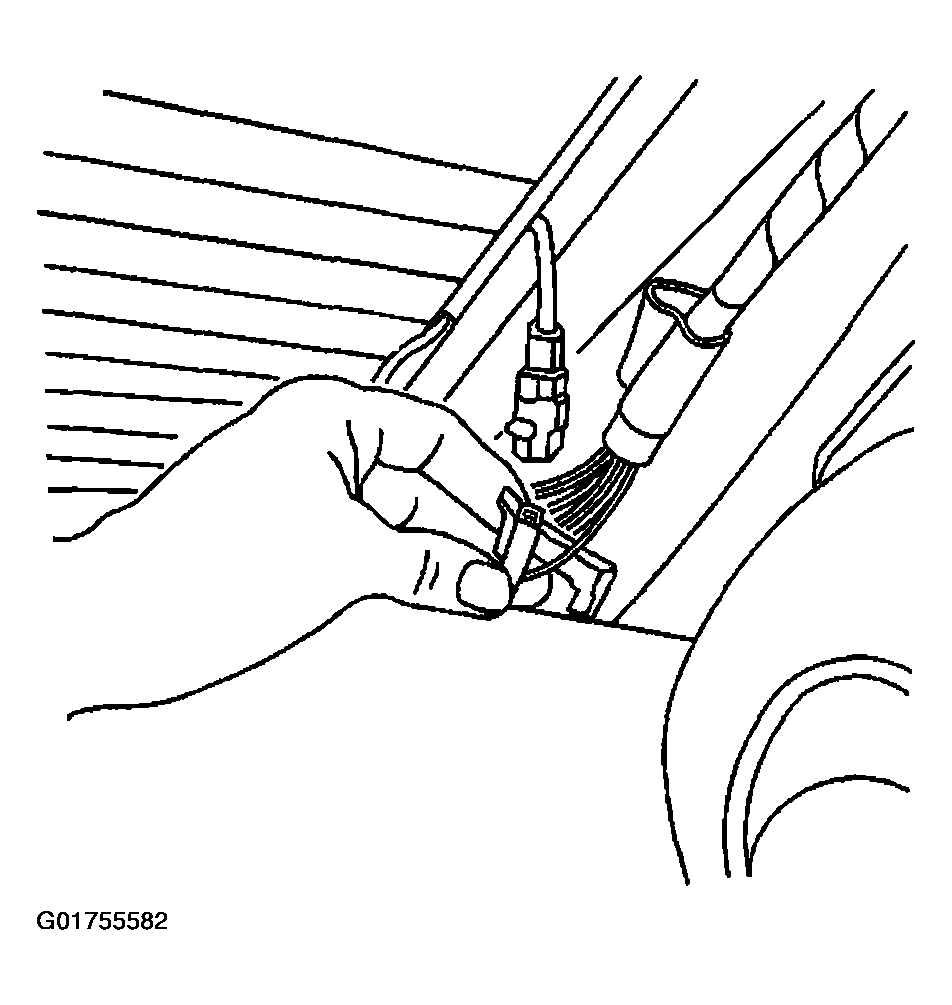

    Fig 1: Identifying Rear Window Defogger Electrical Connectors
    G01755582Courtesy of GENERAL MOTORS CORP.
  3. Install the rear window radio antenna connector.

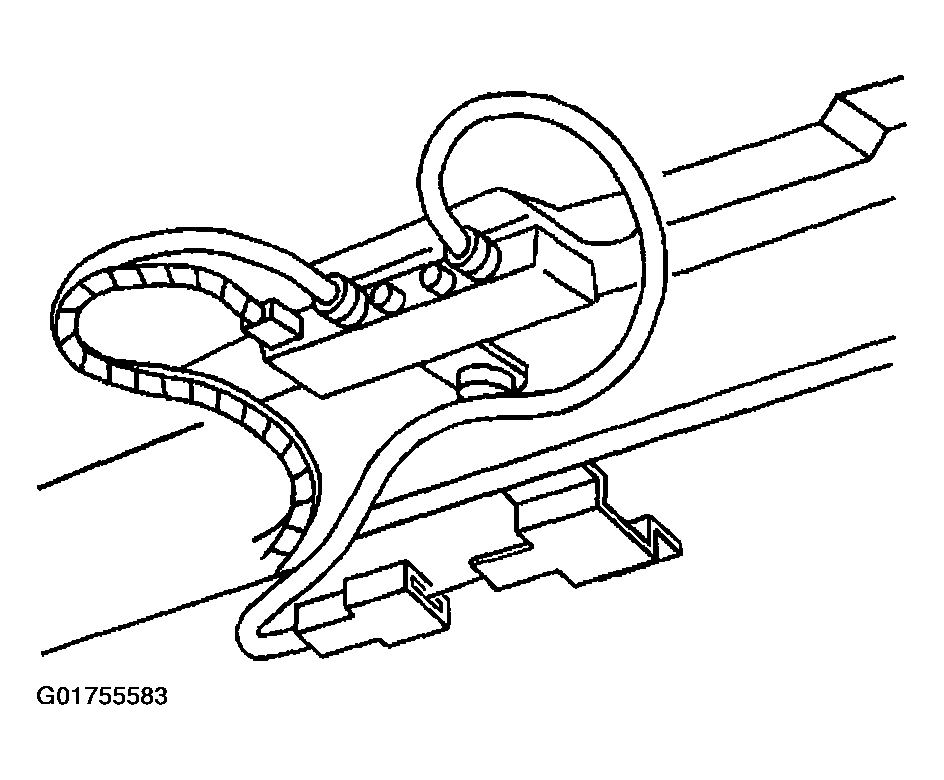

    4. Fig 2: Identifying Rear Window Radio Antenna Connector
    G01755583Courtesy of GENERAL MOTORS CORP.
  4. Connect the OnStar® antenna, if equipped.
  5. Check the radio and OnStar® system to verify reception.
  6. Close the rear compartment lid.
  7. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
