Home >> Buick >> 2002 >> Century Custom >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Repair Instructions >> Child Restraint Tether Anchor Replacement >> Installation Procedure

Installation Procedure

  1. Install the child seat tether brackets to the slots in the rear shelf.

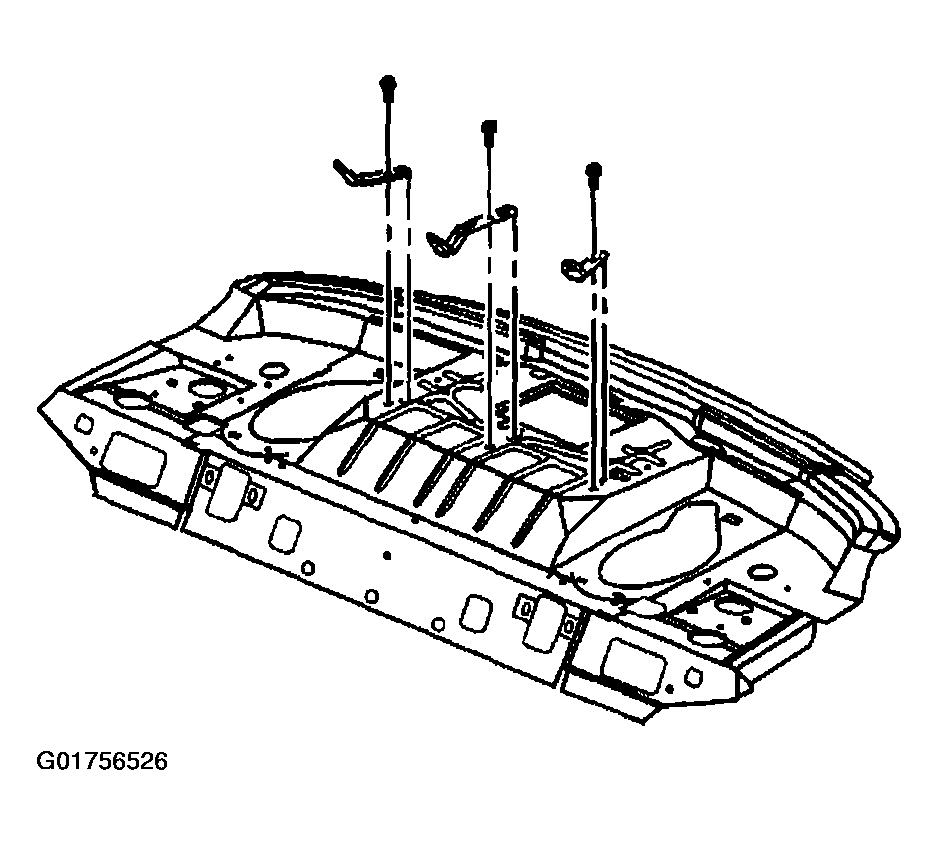

    Fig 1: Identifying Child Restraint Tether Anchors
    G01756526Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the child seat tether bracket to rear shelf bolts. Tighten the child seat tether bracket to rear shelf bolts to 20 N.m (15 ft lbs).
  3. Push the sound barrier back into its original position.
  4. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
