Buick
>>
2002
>>
LeSabre Custom, 4T65E/MN3
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Shift Interlock Systems
>>
Component Locator
>>
Automatic Transmission Shift Lock Control Component Views
Automatic Transmission Shift Lock Control Component Views

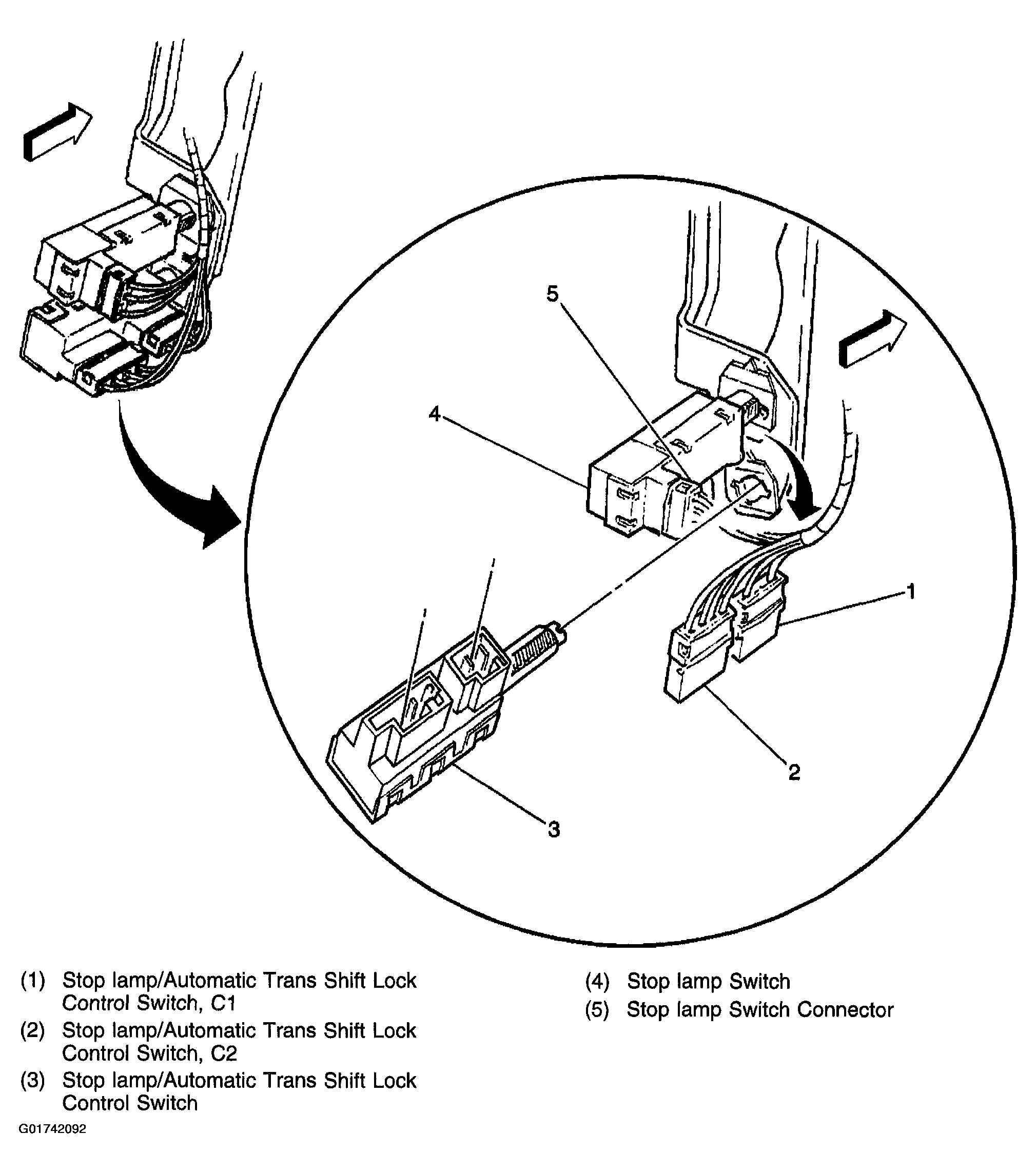

Fig 1: Brake Switches Component Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
