Body Control Module Connector End Views

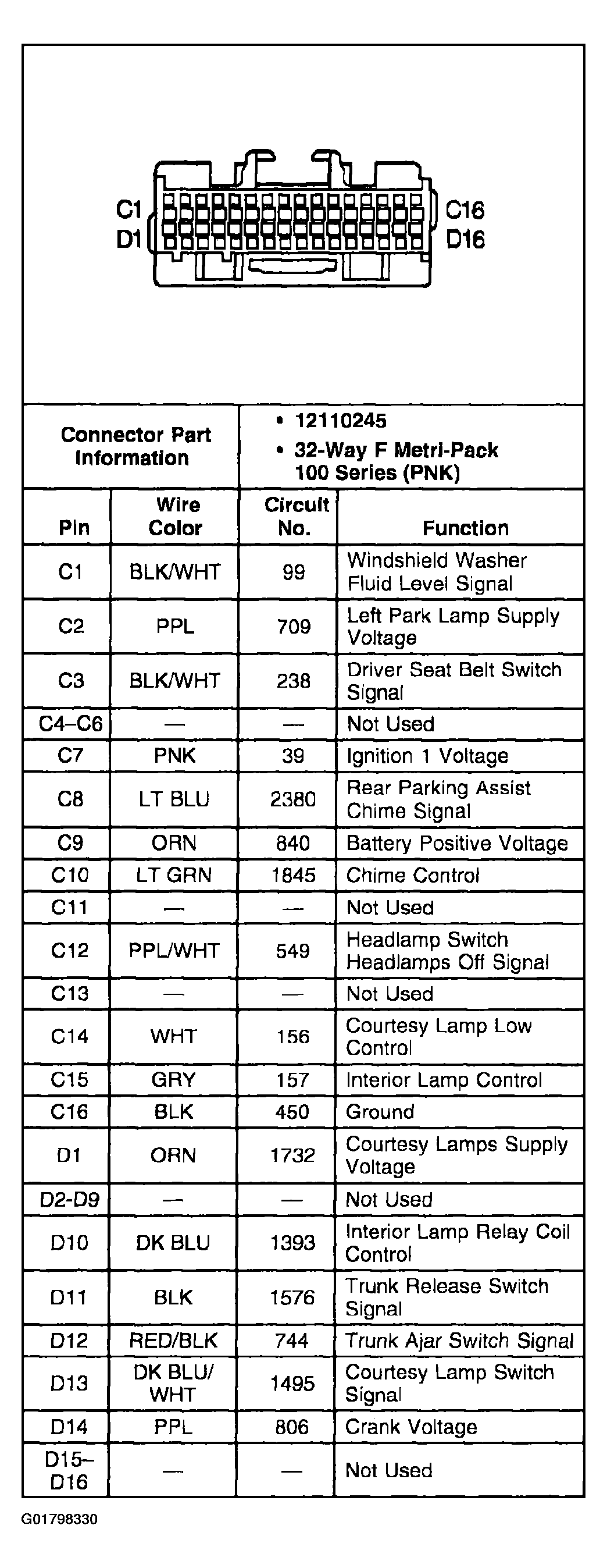

Fig 1: Identifying BCM Harness Connector C1

G01798330

Courtesy of GENERAL MOTORS CORP.

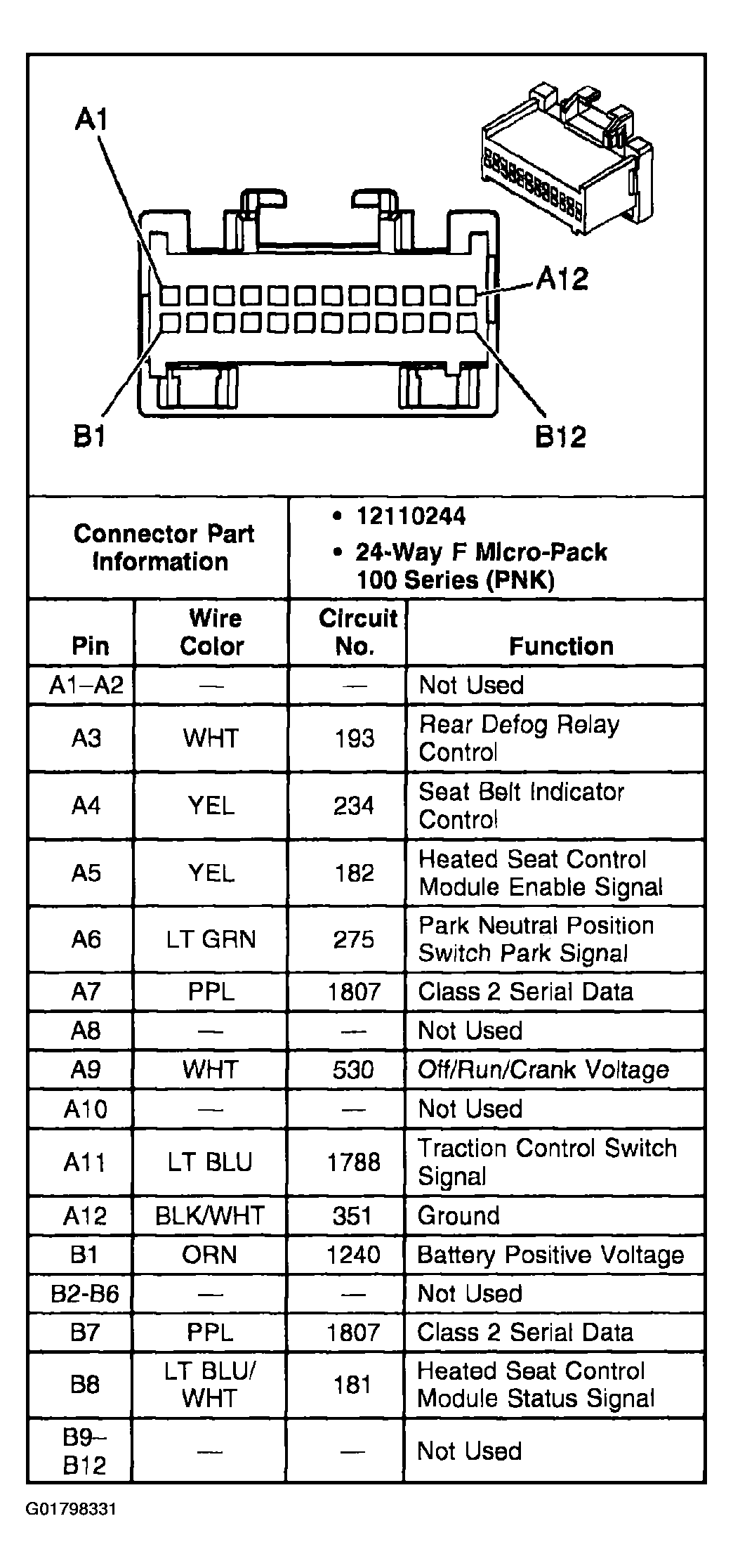

Fig 2: Identifying BCM Harness Connector C2

G01798331

Courtesy of GENERAL MOTORS CORP.
