Connector Identification

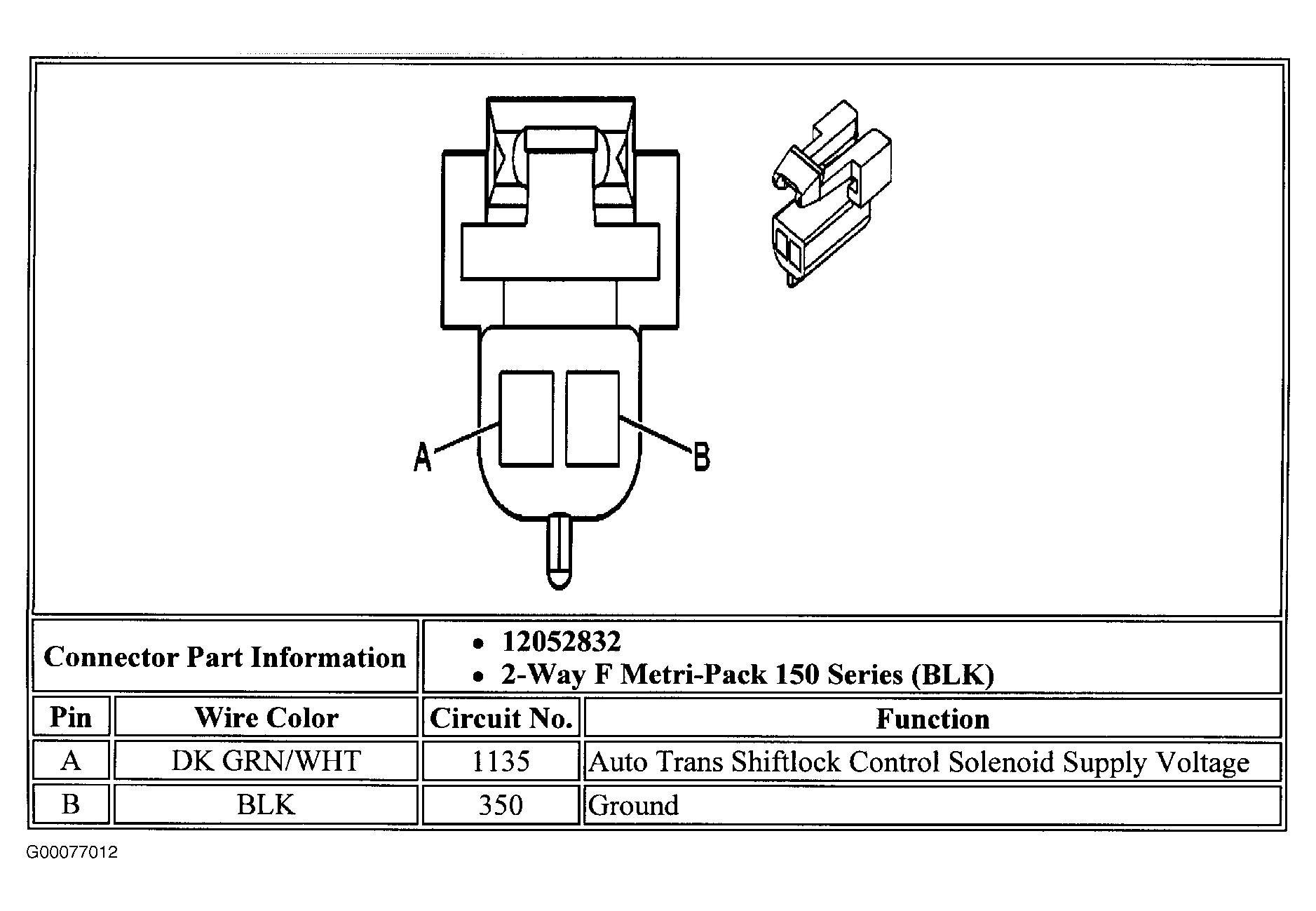

Fig 1: Identifying A/T Shift Lock Solenoid Connector Terminals
G00077012Courtesy of GENERAL MOTORS CORP.

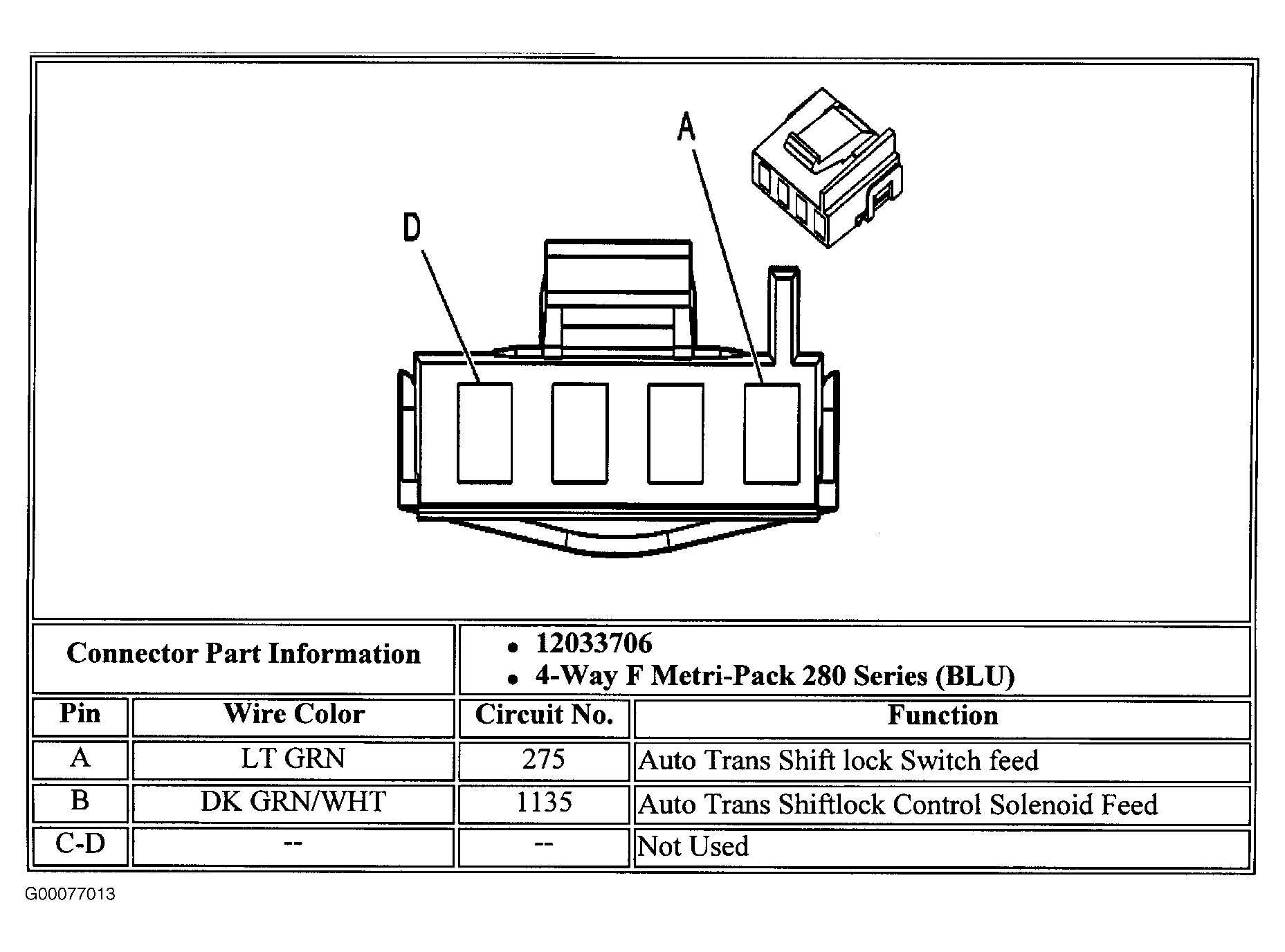

Fig 2: Identifying Stoplamp (A/T Shift Lock Control Switch) Connector C1 Terminals
G00077013Courtesy of GENERAL MOTORS CORP.

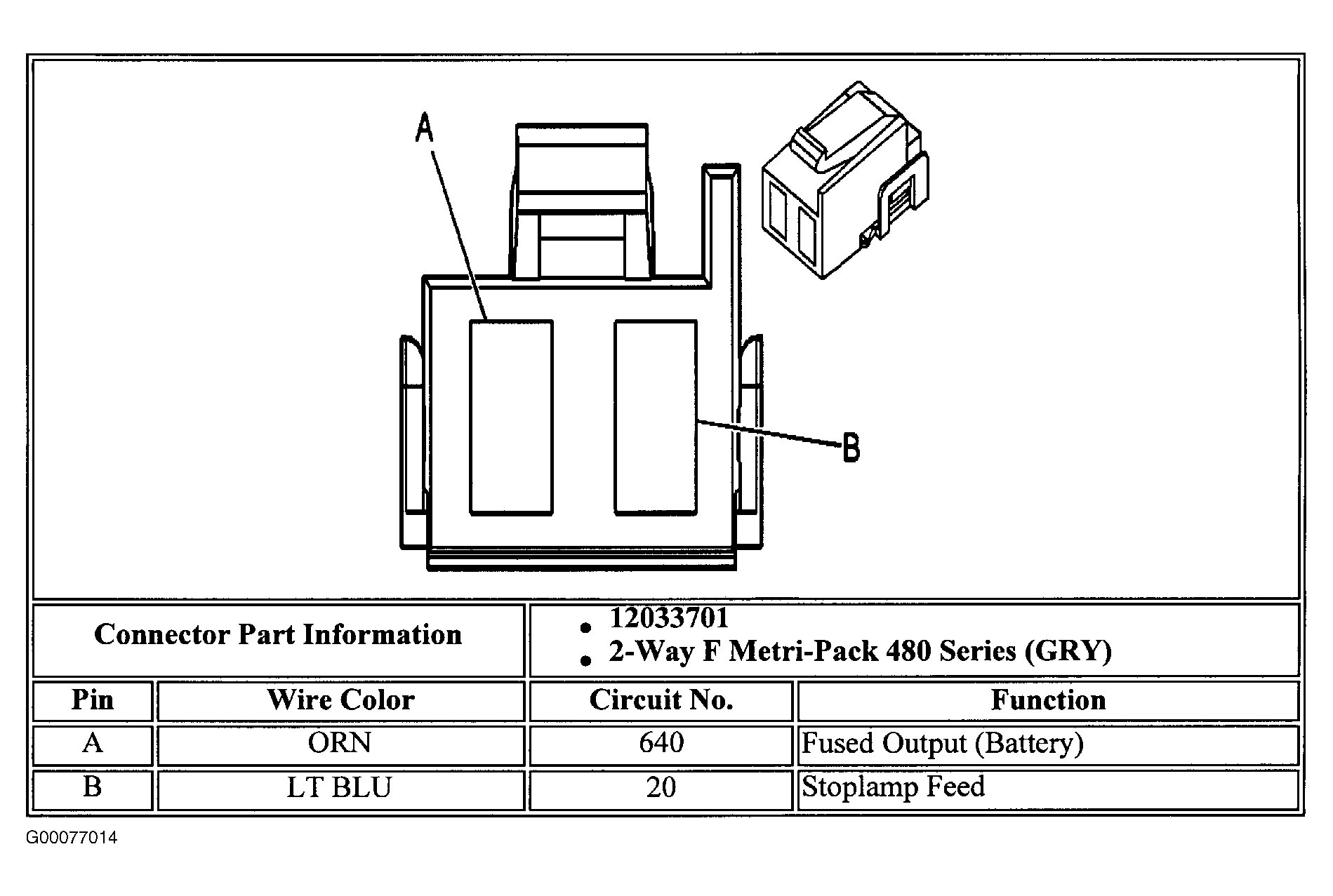

Fig 3: Identifying Stoplamp (A/T Shift Lock Control Switch) Connector C2 Terminals
G00077014Courtesy of GENERAL MOTORS CORP.

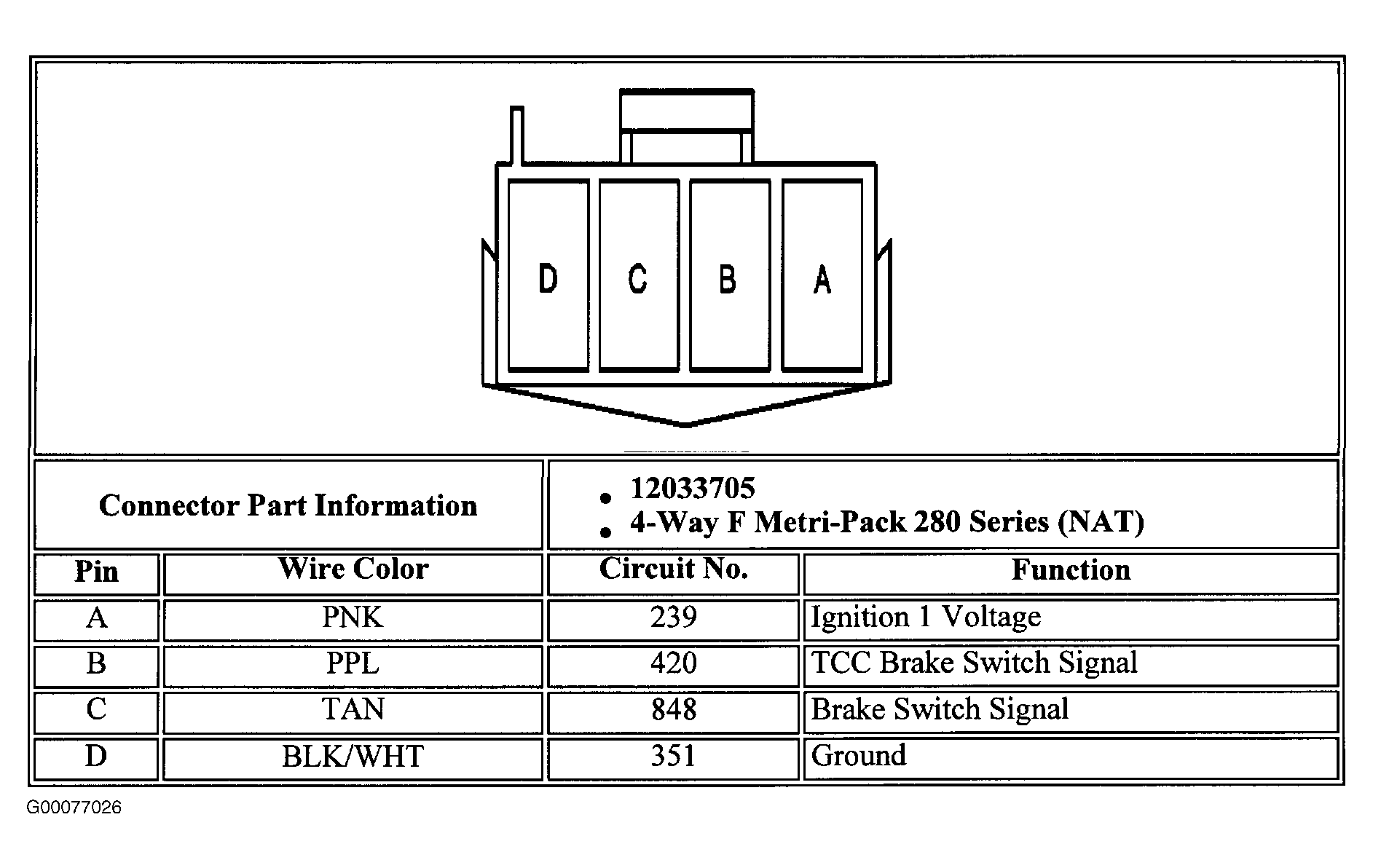

Fig 4: Identifying Stoplamp Switch Connector Terminals
G00077026Courtesy of GENERAL MOTORS CORP.
